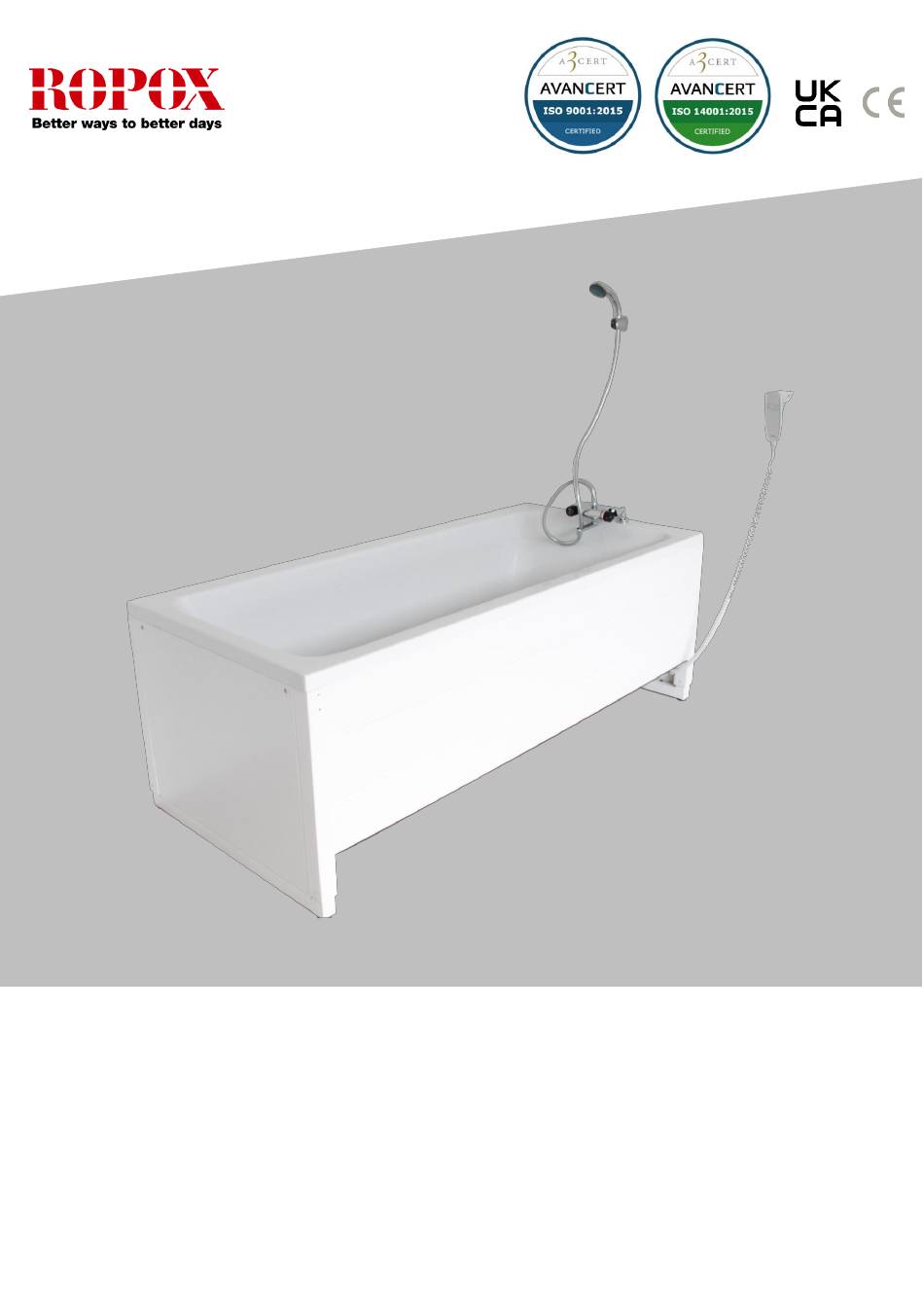

- Page 1 Ropox Bathtub User manual This manual should always be in close proximity of the product. TF 200.02.0012_eng / Dato 22-06-2022...
-
Page 2: Table Of Contents
Table of content Symbols used in this manual ........................4 General safety ............................4 Product label ..........................6 General information ..........................7 3.1 Product information ........................7 3.2 Product description ........................8 3.3 Intended use..........................8 3.4 Intended operator .......................... 9 3.5 Known contraindications ....................... - Page 3 Showerhead holder - mounted by Ropox ................25 10. Electromagnetic compatibility ......................25 10.1 Suitable Environments ......................25 10.2 Basic safety and Essential performance ................25 10.3 Adjacent and stacked use ....................25 10.4 Cables ..........................25 10.5 RF portable equipment ......................25 10.6...
-
Page 4: Symbols Used In This Manual
1. Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification Symbol This symbol is used to notify correct use and handling of the product. - Page 5 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
-
Page 6: Product Label
Product label Ropox Bathtub 180x80 cm Electrical height adjustment 61-91cm This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments UK SI 2008 No. 1597 - The Supply of Machinery (Safety) Regulations 2008, and its amendments... -
Page 7: General Information
3. General information 3.1 Product information Manufacturer Ropox A/S Ringstedgade 221, DK-4700 Naestved +45 55 75 05 00 Info@ropox.com Product models Part number Model Configuration 40-14156-2 Bathtub 160x70 cm Incl. standard mixer tap 40-14157-2 Bathtub 170x75 cm Incl. showerhead 40-14158-2... -
Page 8: Product Description
3.2 Product description Ropox bathtub is a daily living aid that can be adjusted in height to accommodate different caretaker needs. The bathtub is driven by a control box and associated electrical actuators. Height is set by the use of the handset, height can be set in the interval 61-91 cm. -
Page 9: Intended Operator
3.4 Intended operator Reading and understanding this manual will be sufficient training for an intended operator. Children or patient are not considered intended operator. 3.5 Known contraindications The bathtub is intended to contain large amounts of water and therefore there is risk of drowning. Patients with disabilities that make them unable to maintain their head above water are not suited for use with the bathtub Other diseases like epilepsy where a sudden loss of body control can result in drowning are also not suited... -
Page 10: Instructions For Use
4. Instructions for use 4.1 Pre-installations information 4.1.1 Electric installations Reach of mains cable, full length 3.5 m 160x70: 220 cm 170x75: 215 cm 180x80: 210 cm 28 cm 280 cm Warning! Power supply points must be located in an easy to reach area. The power supply point shall not be placed under the bathtub. -
Page 11: Water
4.1.2 Water Applies to 160x70 cm and 170x75 cm bathtub: The hatched area is the recommended area for location of drain. 8 cm 10 cm 15 cm 80 cm Applies to 180x80 cm bathtub: 10 cm 15 cm 80 cm 50 cm Note: Note:... -
Page 12: Installation Of Product
4.2 Installation of product The bathtub is delivered as an assembled unit. Place the bathtub and adjust the four setscrews of the feet to make sure that the bathtub is horizontal. Connecting the product to mains, as well as water supply and drain hoses, makes it operational. -
Page 13: Operating The Product
4.3 Operating the product 4.3.1 Actuation of the product The product is operated with the spiral cord hand control. Arrow up will move the product upwards, and arrow down will move the product downwards. Warning! The product should always be able to travel the full range of actuation without colliding with objects. -
Page 14: Wiring Diagram
4.5 Wiring diagram Without safety stop Blind plugs With safety stop 1. Controlbox Blind plugs 2. 230V cable 3. Motor, connected to ports 1 and 3 4. Handheld control switch 5. MJ box (only with safety stop) 6. Safety stop TF 200.02.0012_eng... -
Page 15: Cleaning
5. Cleaning Simply use a soft cloth with soapy water of max 85°C. Always wash the bathtub after use to prevent dirt from sticking to the surface. Caution! Do not perform cleaning, disinfection, or maintenance while the Bathtub is in use with a patient. -
Page 16: Maintenance
Failing to comply with periodic maintenance may result of degrading of product function and safety. Notification! Ropox will make parts list and circuit diagrams available for maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. -
Page 17: Environmental Protection
7. Environmental protection The product is not intended to be disposed as municipal waste. Proper disassembly, sorting and disposal of components must be done by waste disposal professionals. Part Disposal recommendation Bathtub Hard plastic Frame Steel waste Bed guards Steel waste Cover Aluminum Controlbox... -
Page 18: Accessories
Warning! Only qualified personnel may perform aftermarket installation of spare parts. Caution! Do not use spare parts other than those specified for the product. 9. Accessories A number of configuration options are available. Such options are generally ordered and delivered installed on the product at first delivery. -
Page 19: Mounting Of Safety Stop
Safety stop for two sides: Safety stop for extra front panel: 9.1.1 Mounting of safety stop To ensure optimum safety, the safety stop strip should be located on the underside of the side cover as illustrated. See page 14 for wire diagram. 4 mm from edge TF 200.02.0012_eng... -
Page 20: Front Cover
Additional safety stop strip End resistance for two sides Safety stop strip for one side Warning! Before using the product, check the function of the safety stop. 9.2 Front cover If the bathtub is supplied with one side cover and one end cover, an extra end and front cover can be ordered so that the bathtub is closed all the way around. -
Page 21: Mounting Of
9.2.1 Mounting of front cover Slide the cover up under the edge of the bath and screw the underside onto the side frame with 3x M6x12 screws 9.3 End cover Bathtub 160x70 cm 170x75 cm 180x80 cm End cover 40-14192 40-14193 40-14194 TF 200.02.0012_eng... -
Page 22: Mounting Of End Cover
9.3.1 Mounting of end cover Mount inner cover with 2x M6x12 and outer cover with 2x M6x10 countersunk screw. 9.4 Shower bed, folding up The shower bed is available as an option and may be mounted on existing bathtubs. It may be fitted on the right- hand or left-hand side of the bathtub. -
Page 23: Mounting Of Shower Bed
Warning! Maximum user weight for shower bed according to ISO 17966:2016 is 250kg incl. water Warning! If installed, always use bed guard when using the shower bed. Note! Operator should mind hands and other body parts when folding down the shower bed, there is risk of squeezing. -
Page 24: Folding Bed Guard
9.5 Folding bed guard A folding bed guard is available as an option. It is mounted on the side of the bathtub by means of an angular fitting. Note that the bed guard is identical for all bathtubs and that the angular fitting has different lengths to suit the specific bathtub. -
Page 25: Showerhead Holder - Mounted By Ropox
9.6 Showerhead holder - mounted by Ropox As an option, a showerhead holder is available for mounting on the wall fitting of the showerhead. 40-14156 40-14157 40-14158 Bathtub 40-14356 40-14357 40-14358 Holder 40-14120 10. Electromagnetic compatibility 10.1 Suitable Environments The device is suitable for use at home, at day-care centers, at day centers for persons with physical or... -
Page 26: Compliance Levels For Emissions And Immunity
10.6 Compliance levels for emissions and immunity Phenomenon Test method Class Group Conducted RF emissions EN 55011 Class B Group 1 Radiated RF emissions EN 55011 Class B Group 1 Harmonic current EN 61000-3-2 Class A emissions Voltage changes, voltage fluctuations and flicker EN 61000-3-3 emissions... -
Page 27: Complaints
18.07 MHz to 18.17 MHz. 21.0 MHz to 21.4 MHz. 24.89 MHz to 24.99 MHz. 28.0 MHz to 29.7 MHz and 50.0 MHz to 54.0 MHz. 11. Complaints See our general terms of sale and delivery on www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk...
