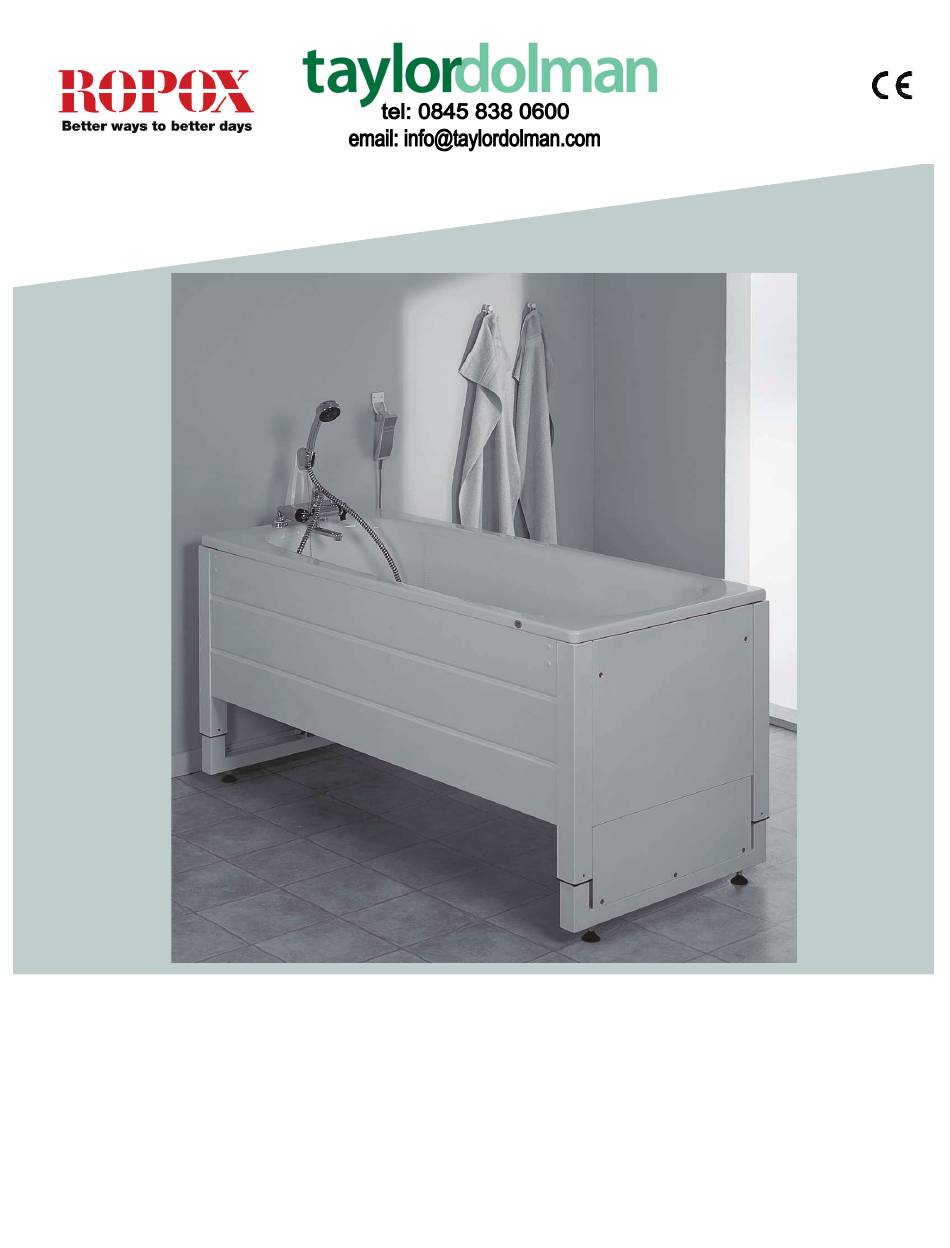

- Page 1 Bathtub 40-14140-6, 40-14142-6, 40-14143-6, 40-14144-5, 40-14145-6, 40-14146-6 User Manual Mounting Instructions Keep this folder with product at all times! PDF60 16 / 0 1. 0 5. 20 11...
-
Page 2: General Information
Bathtub, height adj ustable Producer: Ropox , DK-4700 Naestv ed, Phone +45 55 75 05 00 Usability - The height adj ustable Bathtub can be used for washing and bading children and adults of up to 250 Kg. The Bathtub can be used at home, in day care centre or institutions to obtain good and correct work ing conditions for the caretak ers. - Page 3 Gener al i nf or m at i on Pa r t num be r s Length / width 140x 70cm 150x 70cm 160x 70cm 170x 70cm 180x 80cm 190x 90cm Bathtub 40-14142-6 40-14143-6 40-14140-6 40-14144-5 40-14145-6 40-14146-6 W idth Len g th Te c hni c a l da t a Electrical connection:...
- Page 4 Us er Manual Da i l y us e The height of the Bathtub can be adj usted between 65-95cm to giv e the caretak er the most optimal work ing height ▲ ▼ By using the up down bottom on the handheld control switch, the height adj ustment of the Bathtub can be performed.
-
Page 5: Mounting Instructions
Mount i ng I ns t r uct i ons Mount i ng The Bathtub is deliv ered fully assembled. Place the Bathtub on the spot that y ou want, adj ust the 4 adj usting screws under each leg so that it is steady and horiz ontally . Connect water inlet, and the outlet connects to the drain. - Page 6 El ect r i cal Com ponent s W i r e di a gr a m The Bathtub is deliv ered with the control box already mounted on the frame. The diagram shows how the cables are connected to the control box placed at the inside of the cov er panel.
- Page 7 El ect r i cal Com ponent s Conne c t i ons Motor cables connects to plug 1 & 3. Plug 2 & 4 are not in use and block ed. Control switch connects to ” HB” . W hen all cables has been connected, use the safe lock ing brack et.
- Page 8 Mar ki ng La be l Each bathtub has its own label as shown. The label contains many information’ s which is v ery important to specify when contacting y our supplier. I t also shows main power supply . I tem No.
-
Page 9: Fault Finding
Faul t f i ndi ng Fa ul t f i ndi ng Bathtub do not mov e up Check if: or down by using the Main power connected 230V. hand control Motor is connected to control box Hand control is connected to control box Motors are ov er loaded Hand control defect Check if:... -
Page 10: Maintenance And Cleaning
Mai nt enance and cl eani ng Ma i nt e na nc e Af t e r one m ont h: Check : Mounting of the Mix er tap Connections for Flex ible hoses / hoses Onc e a ye a r ( m i ni m um ) : Bring the bathtub to the top position and check that: Bolts in top and bottom of the motors are tightened All connections ( in let and waste) are ok , and without any damages. - Page 11 Opt i ons Showe r be d, t i l t a bl e Tilt ab le shower bed can be supplied as an option, and mounted on ex isting bathtub s. The shower bed can be mounted either right or left han d side. See mounting .
- Page 12 Opt i ons Mount i ng t he Showe r be d I f the shower bed has been ordered together with the bathtub, it will be mounted “ right” . I f y ou wish to hav e it moun ted “ left” , y ou need to specify that when placing the order.
- Page 13 Opt i ons Be d gua r d, f ol da bl e Foldable Bed guard in leng th 110 cm is av ailab le as an option. To be mounted on the side of the bathtub on the ang le b rack et. Be aware that the Bed guard is the same, but the ang le brack et is deliv ered in different lengths, depending on the length of the Bathtub.
- Page 14 CE- Mar ki ng EU – De c l a r a t i on of Conf or m i t y I hereby declare under sole responsibility that the following products: 40-14140 Aqua line Bathtub length x width 160 x 70 cm 40-14142 Aqua line Bathtub length x width...
- Page 15 ROPOX A/ S Rin g stedg ade 221 DK – 4700 Naestv ed Tel. : +45 55 75 05 00 Fax . : +45 55 75 05 50 E-mail: in fo@ ropox . dk www. ropox . com...
