Instructions for use

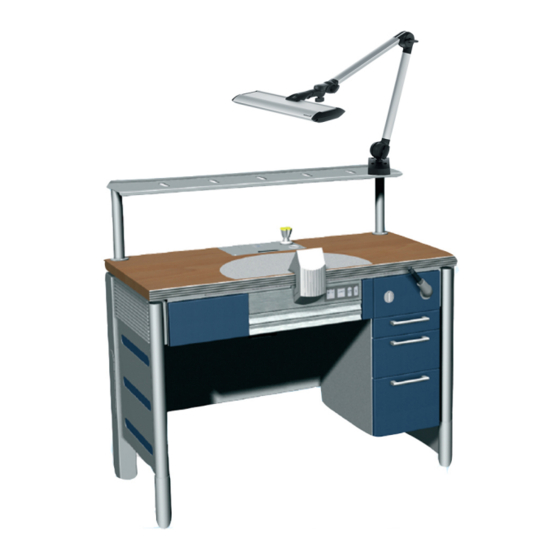

FLEXspace Typ 5200, 5200-U, 5210, 5210-U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLEXspace 5200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KaVo FLEXspace 5200

Summary of Contents for KaVo FLEXspace 5200

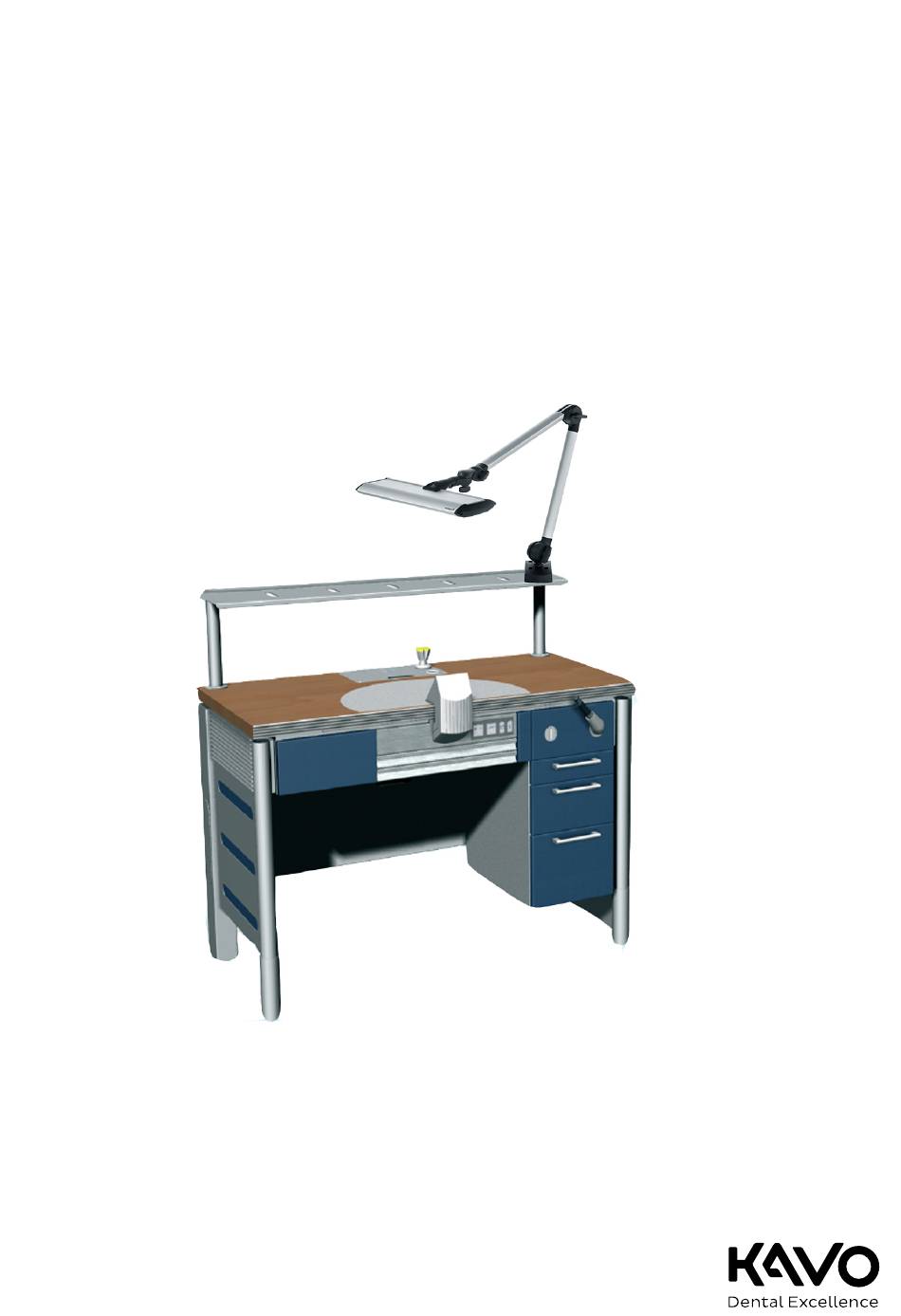

  • Page 1 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U...
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 (0) 7351 56-0 www.kavo.com Fax +49 (0) 7351 56-1488...

  • Page 3: Table Of Contents

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U Table of contents Table of contents 1 User instructions ........................ 4 1.1 User guide ........................4 1.1.1 Abbreviations..................... 1.1.2 Symbols......................1.1.3 Target group ..................... 1.1.4 Meaning of the pictograms .................. 1.2 Service ......................... 5 1.3 Terms and conditions of warranty..................

  • Page 4: User Instructions

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first startup to avoid misuse and prevent dam- age. 1.1.1 Abbreviations Explanation brevi- ation Instructions for use...

  • Page 5: Service

    12 months from the date of purchase as confirmed by the sales- person. In case of justified complaints, KaVo will honour its warranty with a free re- placement or repair. The warranty does not cover defects and their consequences that arose or may...

  • Page 6: Transportation And Storage

    Dispose of and recycle the sales packaging appropriately in accordance with current packaging regulations, employing waste management or recycling com- panies. Comply with the comprehensive return system. KaVo has had its sales packaging licensed for this purpose. Please comply with the regional public waste-disposal system.

  • Page 7: Information On The Packaging: Storage And Transportation

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 1 User instructions | 1.4 Transportation and storage If the packaging is visibly damaged on delivery, please proceed as follows: 1. The recipient of the package must record the loss or damage on the delivery receipt.

  • Page 8: Safety

    In cases which – if not prevented – can lead to material damage. 2.2 Purpose – Proper use KaVo FLEXspace® is a high-quality equipment programme for dental laborator- ies. It offers a comprehensive range of accessories and technical equipment which allow laboratory workstations to be laid out as single or multiple worksta- tions.

  • Page 9: Safety Instructions

    ▪ Only use equipment that is operating correctly ▪ Protect themselves and others against hazards. The following persons are authorised to repair and service the KaVo product: ▪ Technicians of KaVo branch offices after appropriate product training. ▪ Specifically KaVo-trained technicians of KaVo franchised dealers.
  • Page 10 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 2 Safety | 2.3 Safety Instructions WARNING Hazardous dusts Injury hazard ▶ Comply with national regulations and permissible dust loads for workplaces. ▶ Comply with the safety data sheets during any aspiration of hazardous ma- terials.

  • Page 11: Description Of The Product

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 3 Description of the product | 3.1 Scope of delivery 3 Description of the product 3.1 Scope of delivery Check the FLEXspace workstation for completeness. FLEXspace single workstation Mat. no. 1.002.3459 The basic unit consists of: Μ8 Μ8 x20...

  • Page 12: Technical Data

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 3 Description of the product | 3.2 Technical Data M5x40 M5x40 and selectable components: ⑥ Media box with gas supply (order ⑦ Worktop, laminate, straight with safety Bunsen burner tube socket strip Mat. no. 1.002.4142 0.650.3741 from Accessories) ⑧...
  • Page 13 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 3 Description of the product | 3.2 Technical Data Max. gas pressure at customer 50 mbar premises Permissible gases: In accordance with DVGW Work Sheet G260/I and ANSI Z21.1/CSA 1.1 pp. Max.

  • Page 14: Rating Plate

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 3 Description of the product | 3.3 Rating plate Ambient conditions: Permissible in enclosed rooms Permissible ambient temperature from +5°C to +40°C range Permissible relative air humidity max. 80% Max. elevation for operation max.
  • Page 15 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 3 Description of the product | 3.3 Rating plate GS mark For disposal instructions see: intended use Read and take note of the content of accompanying documents 15 / 38...

  • Page 16: Installation

    Note KaVo supplies gas components released by DVGW. If other gas components are installed/ retrofitted, they must conform to the local / national require- ments for gas systems. Only allow authorised specialists to carry out the planning and installation of the gas system.

  • Page 17: Location

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.1 Location 4.1 Location ▶ Choose an installation location for the technical workstation that is supplied with gas, compressed air and electrical connections. The room illumination should be equivalent to daylight. Operating the technical workstation in accordance with its intended purpose is possible if the requirements of EN 61010-1 are met.

  • Page 18: Mounting And Connecting The Flexspace

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace 4.2 Mounting and connecting the FLEXspace 4.2.1 Recommended height setting M8x12 Level Upper edge AP Body height (without level compensation) 820 mm (32.3”) -155 cm 845 mm (33.3”) 156 - 163 cm...
  • Page 19 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace M8x12 19 / 38...

  • Page 20: Connection Of Media, Single Workstation

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace Note ▶ for single workstation, now attach side panel, see Installation instructions 1.002.6461 ▶ for three-unit workstation, now attach side panels for shelves: 3-unit Standard, see Installation instructions 1.002.6457, 3-unit Round, see In- stallation instructions 1.002.6456, 3-unit Star, see Installation instruc- tions 1.002.6455...

  • Page 21: Connection Of Gas, Single Workstation

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace 4.2.3 Connection of gas, single workstation 4.2.4 Connection of air, single workstation Luft 4.2.5 Connection of electric components, single workstation Requirements of the customer's power supply cord ④: 21 / 38...
  • Page 22 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace Rated voltage: min. 250 V AC Nominal cross-section: Types 5200, 5210: min. 1.5 mm Types 5200-U, 5210 U: AWG 14 Temperature range: 0 °-min.70 °C Voltage resistance: min.

  • Page 23: Connection Of Gas, 3-Unit Workstation

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace CAUTION ▶ Connect the equipotential bonding conductor ▶ Connect the protective conductor safely to the electrical installation at cus- tomer premises. 4.2.6 Connection of gas, 3-unit workstation 4.2.7 Connection of compressed air, 3-unit workstation 23 / 38...

  • Page 24: Connection Of Electrical Components, 3-Unit Workstation

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace 4.2.8 Connection of electrical components, 3-unit workstation Elektrik 4x25 4x25 24 / 38...
  • Page 25 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace M5x40 M5x10 M5x10 25 / 38...
  • Page 26 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace Note ▶ for 3-unit workstation, now attach connecting angle: 3-unit Standard, see Installation instructions 1.002.6457, 3-unit Round, see Installation in- structions 1.002.6456, 3-unit Star, see Installation instructions 1.002.6455 Note ▶...
  • Page 27 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace 3x25 M5x30 M5x30 M5x40 27 / 38...
  • Page 28 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 4 Installation | 4.2 Mounting and connecting the FLEXspace M5x35 28 / 38...

  • Page 29: Operation Of The Functional Components

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 5 Operation of the functional components 5 Operation of the functional components CAUTION The manufacturer does not accept any liability for damage caused by improper use. geschlossen offen ▶ Remove the pneumatic hand-held nozzle ②. ▶...

  • Page 30: Maintenance

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 6 Maintenance | 6.1 Cleaning the workplace 6 Maintenance DANGER Electrical power. Risk of fatal injury. ▶ Have the electrical part of the device repaired and serviced only by profes- sionals or persons trained at the factory who have been advised of the safety instructions.
  • Page 31 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 6 Maintenance | 6.3 Maintenance of the safety hose for the bunsen burner CAUTION Safety instructions for the operation of a Bunsen burner: ▶ As a rule, Bunsen burners do not have a "closed" setting, this means that gas flows through the pilot flame nozzle as soon as the gas supply is opened.

  • Page 32: Accessories

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 7 Accessories 7 Accessories M5x12 M5x40 M6x20 M5x12 M5x40 ① Work shelf base complete ② Arm rests wood for straight worktop Mat. no. 1.002.2732 Mat. no. 1.002.2743 or Arm rests wood for curved worktop Mat.
  • Page 33 Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 7 Accessories 5x30 4x15 M4x30 Assembly variations in functional cell ① Waste drawer 2 x 50 ② Waste drawer 20, 30, 50 ③ Suction panel + waste drawer 50 ④ Suction panel with ABSORmatic control panel Waste drawer 20 and 30 + waste drawer 50...

  • Page 34: Spare Parts

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 8 Spare parts 8 Spare parts 1.002.2676 0.653.1923 0.653.9782 1.002.2656 Set R1 1.003.1003 1.002.2685 1.002.2563 Set R2/3 1.003.0983 1.002.2591 1.002.8733 34 / 38...

  • Page 35: Declaration Of Conformity

    Instructions for use FLEXspace Typ 5200, 5200-U, 5210, 5210-U 9 Declaration of conformity | 6.3 Maintenance of the safety hose for the bunsen burner 9 Declaration of conformity 35 / 38...
