Medic Therapeutics LASER THERAPY HAIR GROWTH COMB User Manual

PRODUCT SPECIFICATIONS

• Size of product itself: 9.41 x 2.39 x 2.20 in /
(L)239.1*(W)60.8*(H)55.8mm
• Net weight of product itself: 0.49 lbs / 220g
• Single package size: 11.02 x 4.92 x 3.07 in / 280*125*78mm
• Materials: ABS
• Battery (QTY & Type): 1 pc, 18650 2600mAh
• Certifications: UL
• Laser medium: GaAIAs Semiconductor
• Laser wavelength: 650nm±20nm
• Number of laser diodes: 7pcs
• Maximum output power: 5mW±20%
• Default working time: 10 minutes
• Battery capacity: 2600mAh
• Voltage: 100-240V

INCLUDED IN PACKAGING

• 1x Laser Comb • 1x Carrying Pouch
• 1x Adapter • 1x Manual
• 1x USB Cable
ABOUT LASER & HAIR REGROWTH
Studies have attested to the following benefits of low-powered laser therapy.
The below information shows how these benefits have been integrated in the
different functions of this device:
1. Helps increase blood circulation in the scalp. This enables oxygen and
nutrients to be delivered to the hair follicles, which are needed for hair
regrowth.
2. Helps stimulates hair follicles. Low-power laser therapy can effectively
stimulate hair follicles and activating 83% of the hair follicles (that were
previously in a "hibernating state"), stimulating hair growth.
3. Helps regulate oil secretion. Excessive oil secretion is a cause of hair
loss, which is caused by the swelling of the sebaceous glands. The
excessive dihydrotestinal (DHT), oleic acid, and linoleic acid contained in
the oil can adversely shrink hair follicles, which can result in hair loss or
stunt hair growth. Low-power laser therapy can help reduce and regulate
oil secretion, promoting hair regrowth.
4. Helps increase cellular functions. Such functions include strengthening
the phagocytic function of white blood cells), enhancing the activity
of macrophages (increasing γ -globulin and complement titers), and
accelerating angiogenesis and the division process of newborn cells.
An increased performance of these bodily functions helps stimulate
hair growth.
Important Note: Continued use required to maintain benefits.

CAUTION

1. Do not make direct eye contact with the laser light diodes.
2. Keep out of reach of children at all times.
3. Forbidden for use by individuals with pacemakers since the laser comb
may interfere with the operation of the pacemaker.
4. Handle the device with car. Keep away from heat and liquids.
5. Ensure to keep the light emitting ports clean. Otherwise, the laser light
intensity output will be affected, adversely affecting the therapeutics
effects of the comb.
6. Do not charge the comb while it is being used.
7. Turn off the comb while cleaning it or after use.
8. Do not use the comb in the bathroom to avoid damaging its components
with moisture/conduction.
9. Individuals with pregnancy, cancer and/or internal bleeding disorders
should not use the device.
10. Only use the included charger to charge the comb.
11. If the comb is not used for a long period of time, charge it at least every
4-6 months to preserve its battery life.

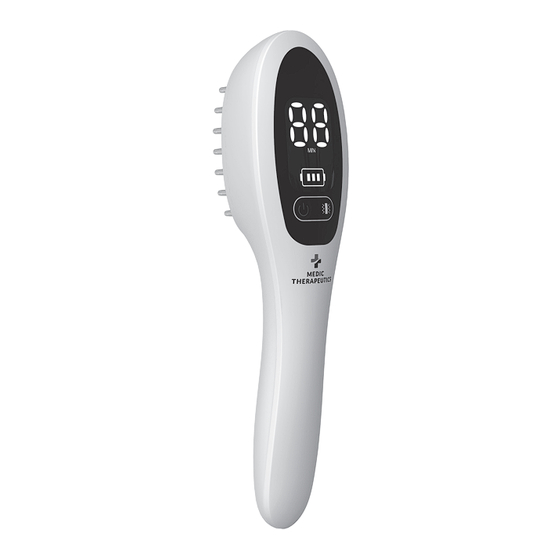

PRODUCT OVERVIEW

Time
On/Off
Switch Massage
Power adaptor
650 nm
Laser Removable

HOW TO USE

Hair Growth & Massage Function:
1. Long press the power button
turns on, the buzzer will make a "tick" sound and all the icons on the LED
screen will illuminate briefly. The default working time of 10 minutes will
be displayed on screen.
2. Their are two vibration power levels, you can press the "massager"
button to change between the power levels.
3. Short press the power button
will be set to 10 minutes and then the device will automatically shut off
at the end of the timer.
Note: The device has an automatic shutdown function to save energy; the
device will also automatically shut off after 2 minutes if not in use.
4. Hold the comb handle and start combing your hair back from the top
of your hairline and down to your ends. The suggested frequency for
combing your hair should be 20-30 brush strokes per minute, or until you
feel a hot or tingling sensation on your scalp.
Suggested Use: 10 minutes a day, 3-4 times a week for maximum results.
US plug
5. To use the massage function while combing you hair press the massage
button . There are 2 levels of massage intensity, the first time you first
press massage button
you press massage button again, the power intensity will be lower. To
turn off the massage function hit the massage button
USB cable

MAINTENANCE AND STORAGE

1. Wipe the dust off of the device's surface with a soft dry cloth.
Power
2. If stained with dirt or oil, use a soft brush to gently remove the stain and
charger
then wipe down with a dry soft cloth.
jack
3. To sterilize the device, moderately wet a cotton ball/square with
disinfecting alcohol until moist. Use the cotton ball/square to wipe
down the surface of the device and allow to air dry until the alcohol
smell is gone.
4. Keeps stored in a cool and dry area away from direct sunlight.
to turn on the device. As the device
again to begin the treatment. The timer
the power will go to the higher intensity. When
a third time.
