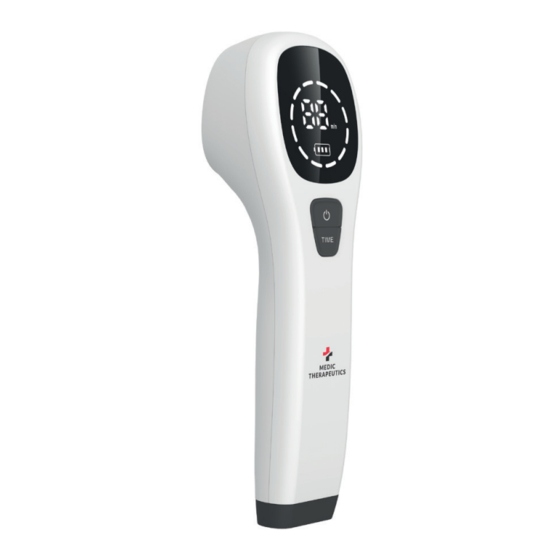

- Page 1 HANDHELD PAIN MANAGEMENT LASER THERAPY WITH PROTECTIVE GLASSES User Manual MT-PAINLASER-001...
- Page 2 Please read this manual prior to use. ABOUT: Laser therapy delivers non-thermal photons of light to injured cells; the cells are stimulated and develop a higher rate of metabolism. This results in pain relief, improved circulation and anti-inflammation, accelerating the healing process. CAUTIONS: Avoid looking directly at the light.
-
Page 3: Product Specifications
PRODUCT SPECIFICATIONS: Laser medium GaAIAs Semiconductor Laser wavelength 650nm±20nm/808nm±20nm Number of laser diodes 808nm laser diode X1 pc 650nm laser diodes X12 pcs Maximum output power per 150mW±20% 808nm laser diode Maximum output power per 5mW±20% 650nm laser diode Time setting 5-30 minutes 5 minutes as an interval Battery voltage... -
Page 4: Parts Overview
PARTS OVERVIEW: LED Screen On/Off Time Host Us plug USB cable Power adaptor... - Page 5 PARTS OVERVIEW: Time Battery LED Screen 808 laser diodes 650nm laser diodes Power charger jack One 808 laser diodes Twelve 650nm laser diodes...
- Page 6 OPERATING INSTRUCTIONS: 1. FUNCTION SETTING AND KEY OPERATIONS 1.1 Turn on Press and hold “ “ (Figure 1). As the device turns on, the buzzer will make a “tick” sound. All the icons on the LED screen will light up briefly when turned on, then the default settings will be displayed on the screen (default settings: 05 minutes as shown in Figure 2).
- Page 7 Figure 3 1.3 Treatment Start and Pause After setting the time, short press “Power“ to initiate the treatment. After the treatment has been completed, the buzzer will “tick” , the laser will stop and the LED screen will return to the settings status.
- Page 8 Figure 4 2. Treatment Recommendation Hover the handheld laser over the desired treatment area at a distance of 0.42in – 0.78in away from your skin. Do not perform the treatment over clothing or any creams/ointments/ dressings. Feeling a warm sensation during use is normal. Recommended use is once or twice a day for 20 minutes at a time.
- Page 9 Note: The charging time should last 10 hours for the first 3 uses. Only use the included power adaptor to avoid damaging the device. IMPORTANT SIGNS AND SYMBOLS: According to regulation in EN60825-1 : 2014 standard, each 3B laser product must be accompanied by a radiation warning sign and a radiation declarative sign.
-
Page 10: Maintenance And Preservation
PRODUCT SPECIFICATIONS: Laser medium Causes Solutions Device does not 1. Insufficient 1. Press & hold turn on. time of pressing ” “ for over “ ” 3 seconds. 2. Battery is low. 2. Plug in “power adapter ° to charge. Laser light not 1. -
Page 11: Transportation And Storage
Do not place device against hard objects to avoid scratches or damage to the lasers. If the device is not used for a long time, please charge it at least every 4 to 6 months, which is beneficial for battery maintenance. -
Page 12: Limited Lifetime Warranty
Please send your device, proof of purchase, and a check or money order in the amount of $35.00 made out to Medic Therapeutics to: Address: Medic Therapeutics Service Center...
