GKD 2-TH Series Quick Start Manual

Series 2-TH monitors the position of
the front end equipment (Tele Boom
and Forks) to allow the safe use of
the machine while under obstacles.
This quick start guide takes you
through setting Height limits as
well as the operational mode of the
system.
When the system powers up, and
displays the GKD logo, press the
OK button to enter the operational
mode.

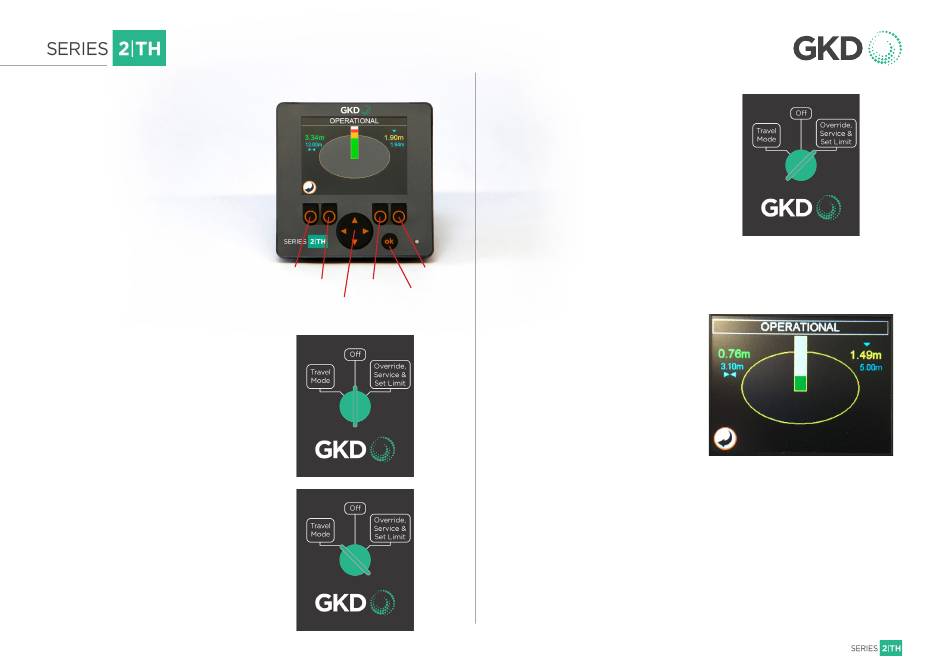

KEY SWITCH POSITIONS
Operational
Turn the key switch to the straight
position.
This puts the system into the
Operational Mode. While in this
mode, Height Limits are active.
Travel Mode
Turn the key switch to the left
position to enable Travel Mode.
While in Travel Mode, Boom controls
are locked, but travel is allowed
(depending on optional Travel
Inhibit valve).
QUICK START GUIDE
F1 F4
F2 F3
OK
Arrow Keys
Service Menu or Calibration Mode
Turn the key switch to the right
position to access Override, Set
Limits and Service Area.
From this menu, Height limits
can be set and/or adjusted. Also,
the system can be overridden
if required. The Service Area is
passcode protected.

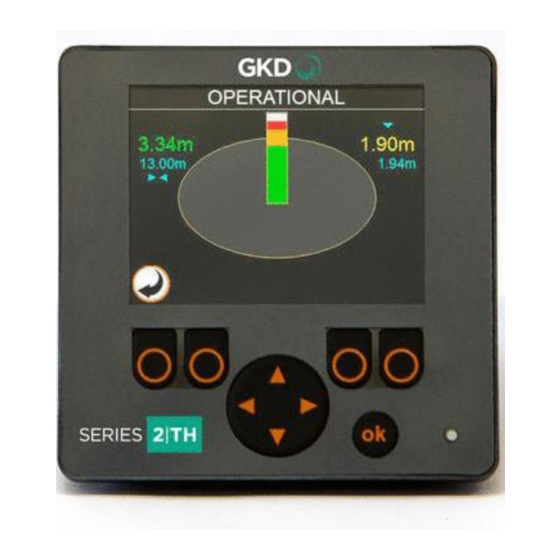

OPERATIONAL MODE
This screen will appear when in
Operational Mode.
When the height limit is reached, the
external audible sounder is switched
on to warn the operator and the
relevant valve cut off to disable any
further upwards movement. Any
movements down or away from the
limit will be allowed.
1
M2000019 V1.1 - 05/2021
