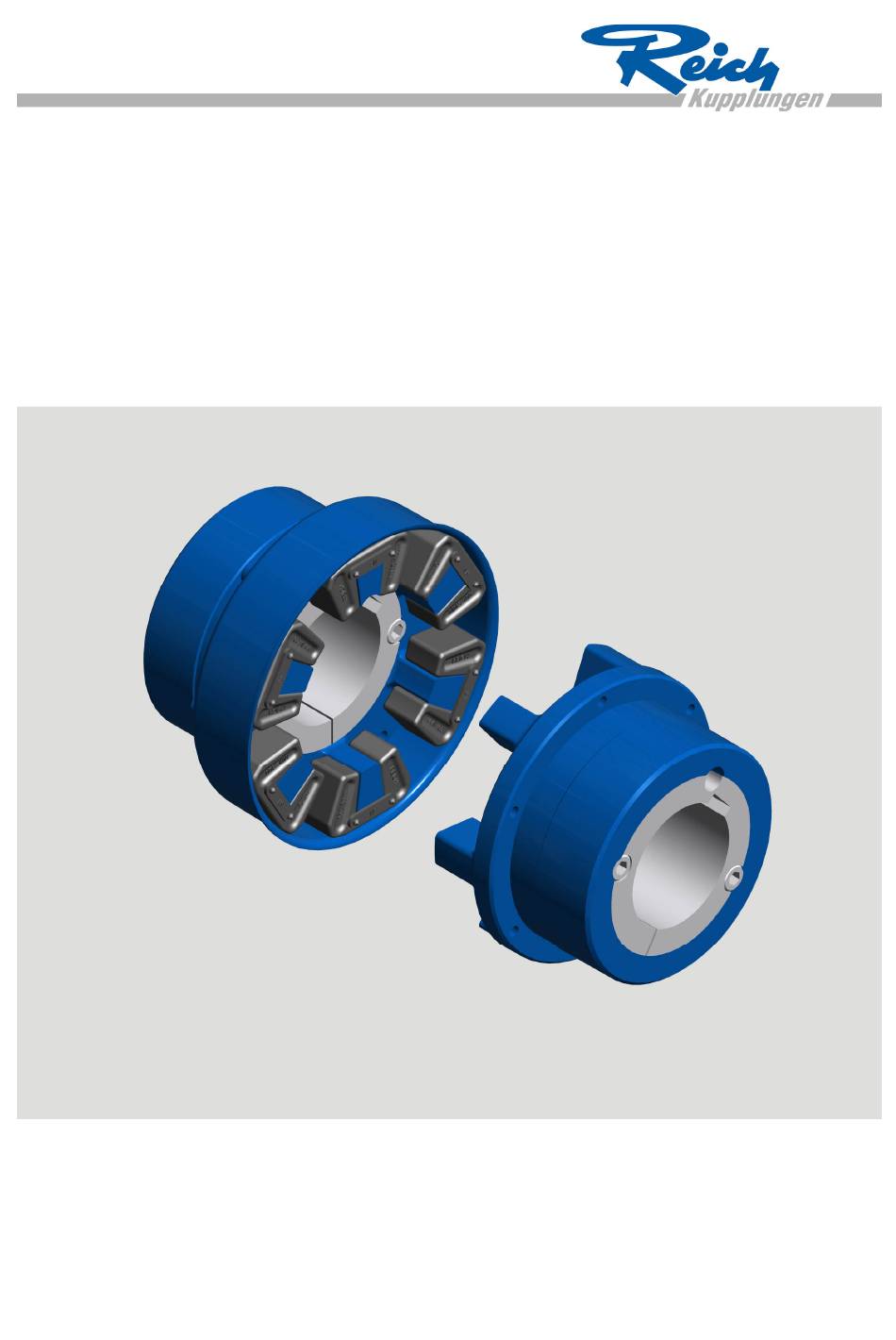

- Page 1 MULTI MONT SELLA Torsionally flexible claw coupling MMS-T…W (with taper bush) Sizes 25 to 1000 English version of the original German operating instructions 06/2016 - en - 15500002060002...
-
Page 3: Table Of Contents
Contents Notes on the supplementary manual and the manufacturer..... 5 Keeping the instructions available............... 5 Target group of these operating instructions..........5 Copyright ....................6 Related documents .................. 6 Structural features of these operating instructions ........6 Warranty and liability ................. 7 Manufact urer's address ................ - Page 4 Basic notes regarding the conditi o n of deli v ery ...........26 Basic instructions regarding coupling hubs with taper bush ......28 Assembling taper bush in coupling hub .............28 Assemble the taper bush on the shaft ............30 Disassemble hub with taper bush .............30 Mounting the coupling ................31 Type MMS-T…W (with taper bush) ..........31 Torques for tightening bolted connections ..........32...
-
Page 5: Notes On The Supplementary Manual And The Manufacturer
Notes on the supplementary manual and the manufacturer Notes on the supplementary manual and the manufacturer These operating instructions help you use the coupling properly and safely. Keeping the instructions available These operating instructions are an integral part of the coupling. Make sure that these operating instructions are constantly available at the place of use and in legible condition for the user. -
Page 6: Copyright
Notes on the supplementary manual and the manufacturer Copyright These operating instructions and all their annexes contain information which is subject to copyright. They must only be used for the operation of the coupling. These operating instructions must not be copied, printed or reproduced, processed, duplicated or disseminated in any way or in any form –... -
Page 7: Warranty And Liability
Notes on the supplementary manual and the manufacturer Warranty and liability Our general commercial terms and conditions apply in general. These can be seen in the Internet at http://www.reich-kupplungen.com. Warranty and liability claims for personal injury and property damage are denied in all cases in which these are attributable to one or more of the following causes: Improper use of the coupling. -
Page 8: Safety
Safety Safety Proper use The couplings in the MULTI MONT SELLA series, type MMS-T...W are pluggable claw couplings. These act in transferring torques and rotation speeds between a drive unit and the driven machine. They reduce torsional vibrations and shock loads and are able to compensate for misalignments. -
Page 9: Duties Of The Owner
Safety Duties of the owner The owner of the coupling is bound by laws and regulations to issue instructions which ensure safe operation. The owner must define a “responsible person”. Only this person is authorised to issue a work clearance permit for working on and with the coupling. Work on the coupling described herein must not be executed unless the written work clearance permit for the execution of that work is available from the responsible person. -
Page 10: Duties Of The Personnel
Safety Duties of the personnel The personnel working on and with the coupling must: have read and understood all operating instructions, be familiar with all safety devices and regulations, observe and comply with all safety instructions and warning notices applicable to the place of use, be familiar with and adhere to the basic occupational health and safety regulations and accident prevention regulations. -
Page 11: Note Regarding Residual Dangers
Safety Wear ear protectors in areas in which your hearing may be damaged. Wear a respiratory protector during work when your respiratory system may be damaged. Make sure that the work areas and escape routes are not blocked at the place of use. -
Page 12: Danger To Life Due To Improper Transportation And Handling Of The Coupling
Safety Danger to life due to improper transportation and handling of the coupling If the coupling or its components are inadequately supported during transport, assembly or disassembly, there is a risk of crushing injuries in the event of the coupling or its components falling down. Exclusively use undamaged lifting and lashing gear which is suitable for the load. -
Page 13: Structural Features Of Warning Notices
Safety Structural features of warning notices DANGER Notices containing the word DANGER warn of a dangerous situation which causes death or severe injuries. WARNING Notices containing the word WARNING warn of a dangerous situation which can cause death or severe injuries. -
Page 14: Warning And Instruction Labels
Safety Warning and instruction labels Observe and comply with the warning and instruction labels which are affixed at the place of use of the coupling. Make sure that none of the warning and instruction signs installed at the coupling's operating location are covered over and that they are all clearly legible at all times. Immediately replace any damaged warning and instruction labels. -
Page 15: Description
Description Description The couplings in the MULTI MONT SELLA series, type MMS-T...W are pluggable claw couplings. These act in transferring torques and rotation speeds between a drive unit and the driven machine. They reduce torsional vibrations and shock loads and are able to compensate for misalignments. -
Page 16: Overview Of Type Mms-T
Description Overview of type MMS-T…W (with taper bush) The type MMS-T...W is a shaft coupling with two coupling hubs (3, 6). The coupling hubs are each attached with a taper bush (5, 7) on the shaft of the relevant machine. The torque is transmitted via flexible elements (4) which are guided and held in place by a retaining cap (2). -
Page 17: Components
Description Components Coupling hubs The coupling has two coupling hubs. The coupling hubs usually consist of cast iron. They are placed on the shaft of the driven/driving machine and fixed in position by a taper bush. The coupling hub is equipped with claws. These claws are the counterpart to the flexible elements. -
Page 18: Flexible Elements (Toothed Ring, Saddle Elements)
Description Flexible elements (toothed ring, saddle elements) The used flexible elements differ depending on the size. A split toothed ring (A) is used for sizes up to and including size 63. The individual rubber buffers are connected to each other via an external belt. The parting line (B) enables the toothed ring to be replaced without moving the coupling halves. -
Page 19: Retaining Cap
Description Retaining cap The retaining cap is slipped over the coupling hub and bolted to it. The flexible elements are covered this way and protected against dirt and falling out. The flexible elements can be replaced after loosening the retaining cap bolts and sliding back the retaining cap. -
Page 20: Unpacking And Checking The Scope Of Delivery
Unpacking and checking the scope of delivery Unpacking and checking the scope of delivery Unpacking The coupling or its components are delivered in a transport container. Open the transport container. Remove any filler material. Remove the transport protection device. To handle the coupling, follow the instructions on page 21. Checking the supply Check the scope of supply for correctness and completeness against the delivery note. -
Page 21: Transporting The Coupling
Transporting the coupling Transporting the coupling DANGER Danger to life due to falling or tipping loads. Pay attention to the centre of gravity of the load. Use a crane of adequate load-carrying capacity to lift the load. Use lifting gear of adequate load-carrying capacity to lift the load. -
Page 22: Transporting The Coupling Hub With Flexible Elements And Retaining Cap In The Pre-Assembled Condition
Transporting the coupling Transporting the coupling hub with flexible elements and retaining cap in the pre-assembled condition Transportation of coupling hub... -
Page 23: Transportation Of Taper Bush
Transporting the coupling Transportation of taper bush... -
Page 24: Storing The Coupling
Storing the coupling Storing the coupling Store coupling parts for a maximum of three years. Treat metal components with a suitable corrosion inhibitor. Make sure during storage that the following conditions are adhered to for flexible elements: Exclusively store the coupling or its components in a dry and roofed location. Temperature range from +15 °C to +25 °C. -
Page 25: Mounting The Coupling
Mounting the coupling Mounting the coupling Lifting loads during assembly DANGER Danger to life due to falling or tipping loads. Pay attention to the centre of gravity of the load. Use a crane of adequate load-carrying capacity to lift the load. -
Page 26: Basic Notes Regarding The Condition Of Delivery
Mounting the coupling Make sure that the flexible elements do not come into contact with solvent. Remove any preservative and grease from the connecting surfaces of the coupling with a suitable solvent. Degrease the shaft of the driven machine with a solvent. Degrease contact surfaces on the flywheel of the drive unit with solvent. - Page 27 Mounting the coupling In the pre-assembled condition, the coupling parts are bolted together but not to the required torque. The pre-assembled condition can be recognised by the red tag or adhesive label attached in the factory. CAUTION! Property damage due to improperly fastened bolts. When using a screw locking compound, for example an adhesive, the required torque must be adapted under circumstances.
-
Page 28: Basic Instructions Regarding Coupling Hubs With Taper Bush
Mounting the coupling Basic instructions regarding coupling hubs with taper bush The coupling hub is delivered with a suitable taper bush. The taper bush has a finished bore and spline in accordance with customer specifications. WARNING Danger to life due to rupturing of a damaged coupling. Exclusively operate the coupling in flawless condition. - Page 29 Mounting the coupling In order to assemble the taper bush, proceed as follows: Insert the taper bush (A) into the bore (B) on the coupling hub. Schematic diagram Bring the connecting bores to the cover. Half a threaded bore must lie opposite a smooth bore (B) in each case.
-
Page 30: Assemble The Taper Bush On The Shaft
Mounting the coupling Assemble the taper bush on the shaft Ensure that the parallel key is inserted into the spline on the shaft. Push the hub with the inserted taper bush onto the shaft in the assembly position. Ensure that the bore on the taper bush is fully covered by the shaft. Tighten the bolts with the corresponding torque, see from page 33 onwards. -
Page 31: Mounting The Coupling
Mounting the coupling Mounting the coupling Type MMS-T…W (with taper bush) In order to assemble the pre-assembled coupling hub (3) including saddle elements, retaining cap (2), and taper bush (5) onto the shaft, proceed as follows: Make sure that the connecting surfaces are free of preservative and grease. Assemble the taper bush (5) into the hub of the pre-assembled coupling half, as described from page 28 onwards. -
Page 32: Torques For Tightening Bolted Connections
Mounting the coupling Torques for tightening bolted connections A cordless screwdriver may be used to screw the bolts in hand-tight. The required torque must only be applied by hand using a torque wrench. To ensure reliable torque transmission, all bolts must be tightened to the required torque during assembly. -
Page 33: Torques For Taper Bushes
Mounting the coupling Torques for taper bushes Coupling size 100/160 250 400/630 1,000 Bush no. 1610 2012 2517 3030 3535 4040 4545 Bolt size BSW *) ×16 ×22 ×25 ×32 ×38 ×45 ×50 Torque M [Nm] Key width [mm] Taper bush no. 1610/2012/2517/3030 set screw Taper bush no. - Page 34 Mounting the coupling Proceed as follows to engage the coupling halves with each other: Loosen and remove the bolts (1) from the retaining cap (2). Slide back the retaining cap. Move the driven machine or the drive unit until the claws of the two coupling halves are in engagement.
-
Page 35: Aligning The Coupling
Mounting the coupling Aligning the coupling CAUTION! Increased rate of wear to the flexible elements due to inadequate alignment of the drive unit and the driven machine. When aligning the drive unit and the driven machine, adhere to the values specified for the angular-, radial and axial displacement. -
Page 36: Alignment Tolerances
Mounting the coupling Coupling size Max. permissible Max. permissible Max. permissible radial axial angular displacement displacement displacement ΔKr [mm] ΔKa [mm] ΔKu [mm] 1000 Alignment tolerances The alignment tolerances listed in the table below should only be considered as guide values in order to keep the assembly work within reasonable limits and in view of the fact that the compensating capability of the coupling largely depends on the rotational speed and the load. -
Page 37: Mounting The Protection Device
Mounting the coupling Mounting the protection device The owner must equip the coupling with a protection device prior to commissioning. The coupling must be operated exclusively with the protection device mounted. The protection device must satisfy the following minimum requirements and ensure: Protection against contact with rotating parts Protection against parts flying around after any rupture of the coupling Adequate ventilation of the coupling, for example through integrated cooling slots. -
Page 38: Putting The Coupling Into Operation
Putting the coupling into operation Putting the coupling into operation WARNING Danger to life due to rupturing of a damaged coupling. Exclusively operate the coupling in flawless condition. Make sure that the coupling is equipped with a protection device which is capable of withstanding rupturing of the coupling. -
Page 39: Operation
Operation Operation WARNING Danger to life due to rupturing of a damaged coupling. Exclusively operate the coupling in flawless condition. Make sure that the coupling is equipped with a protection device which is capable of withstanding rupturing of the coupling. During operation, regularly check the coupling for changed running noises and suddenly occurring vibrations. -
Page 40: Eliminating Malfunctions
Eliminating malfunctions Eliminating malfunctions The malfunctions and causes of malfunctions described in this section can only serve as a starting point for your checks. Malfunctions are related to the type of use and the respective operating situation. For this reason always incorporate all components of the entire system in your fault finding and elimination process. -
Page 41: Procedure For Eliminating Malfunctions
Eliminating malfunctions Procedure for eliminating malfunctions Proceed as follows when eliminating malfunctions: Shut off the drive units. Secure the drive units to prevent unintentional reactivation. Secure the work area using a suitable cordon facility, e.g. barrier tape. Additionally display a notice sign. -
Page 42: Maintaining The Coupling
Maintaining the coupling Maintaining the coupling CAUTION Risk of burns from hot surfaces Shut the system off before servicing, maintaining or repairing the coupling. Allow the components to cool. Wear protective gloves when working on the coupling. Preparing for maintenance work Obtain the work clearance permit from the responsible person prior to all work on and with the coupling. -
Page 43: Replacing The Flexible Elements
Maintaining the coupling If you discover wear and damage to the saddle elements or the toothed ring during system and maintenance work involving the separation of the units, we recommend to replace the saddle elements or the toothed ring. Replacing the flexible elements CAUTION! Damage to the coupling and the drive shafts due to improper replacement of the saddle elements or of the... - Page 44 Maintaining the coupling Where necessary, use suitable tools for this purpose. Retain the saddle elements (4) in a suitable container for subsequent disposal. Repeat these steps until all saddle elements are removed. Proceed as follows to mount the new saddle elements (4): Place a saddle element (4) on top of a coupling claw so that its belt points to the hub body on the opposite side.
-
Page 45: Replacing The Toothed Ring
Maintaining the coupling Replacing the toothed ring Proceed as follows to disassemble the toothed ring: Disassemble the retaining cap (2) from the hub body (3). Loosen the bolts (1) for this purpose. Put the bolts (1) aside for later use. Slip the retaining cap (2) from the hub body (3) onto the shaft. -
Page 46: Completing The Maintenance Work
Maintaining the coupling Completing the maintenance work Install the protection devices removed for the maintenance work, such as e.g. the guard on the coupling. Remove the tools and aids required for the maintenance work. Proceed as follows to commission the coupling: Start the drive unit as specified by the owner. -
Page 47: Cleaning The Coupling
Cleaning the coupling Cleaning the coupling CAUTION! Damage to the coupling due to improper cleaning. Make sure that the flexible elements do not come into contact with acids, akalis or cleaners containing organic solvents. The flexible elements can be damaged when using unsuitable cleaners. As a result, the surface can become so hot that a risk of explosion can occur. -
Page 48: Dismantling The Coupling
Dismantling the coupling Dismantling the coupling DANGER Danger to life due to falling or tipping loads. Pay attention to the centre of gravity of the load. Use a crane of adequate load-carrying capacity to lift the load. Use lifting gear of adequate load-carrying capacity to lift the load. -
Page 49: Disposing Of The Coupling
Disposing of the coupling Disposing of the coupling Dispose of the coupling through a certified specialist disposal company. Observe and comply with the country-specific regulations applicable to the place of use. If in doubt, contact your municipal or local administration. Sort the coupling components according to their materials: Steel Light alloy...
