- Page 1 INSTRUCTIONS KIT – INSTRUCCIONES MONTAJE 0/K00.980.5001...
- Page 2 KIT 0/K00.980.5001 Quitar tornillos del porta matriculas. Remove screws from holder plate. Technical Department...
- Page 3 KIT 0/K00.980.5001 Quitar tuercas rápidas del subchasis y pasar broca Remove M6 quick nuts to the subframe and de Ø6 mm por los agujeros hasta agujerear el pass Ø6 mm drill on holes untill puncture guardabarros posterior. rear mudguard. Technical Department...
- Page 4 KIT 0/K00.980.5001 Agrandar agujero de Ø6 mm del guardabarros trasero pasándolo a Enlarge hole Ø6 mm from rear Ø15 mm mudguard passing to Ø15 mm Technical Department...
- Page 5 KIT 0/K00.980.5001 Insertar casquillos en los agujeros Ø15 mm Insert spacers on Ø15mm holes y atornillaros con los tornillos del Kit and tighten with screws by Kit desde el portamatriculas. from plate holder. Technical Department...

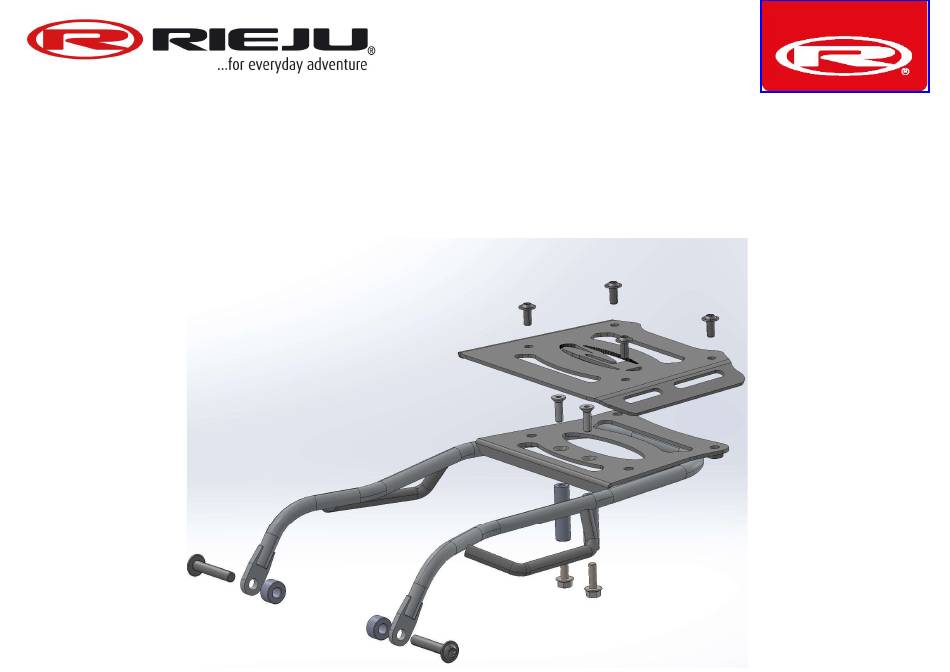

- Page 6 KIT 0/K00.980.5001 Place rear carrier , spacers Posicionar portabultos junto separadores y fijar todo con los tighten them with screws tornillos Technical Department...
- Page 7 KIT 0/K00.980.5001 Posicionar platina embellecedora Place trim plate and tighten with screws atornillar con tornillos Technical Department...
