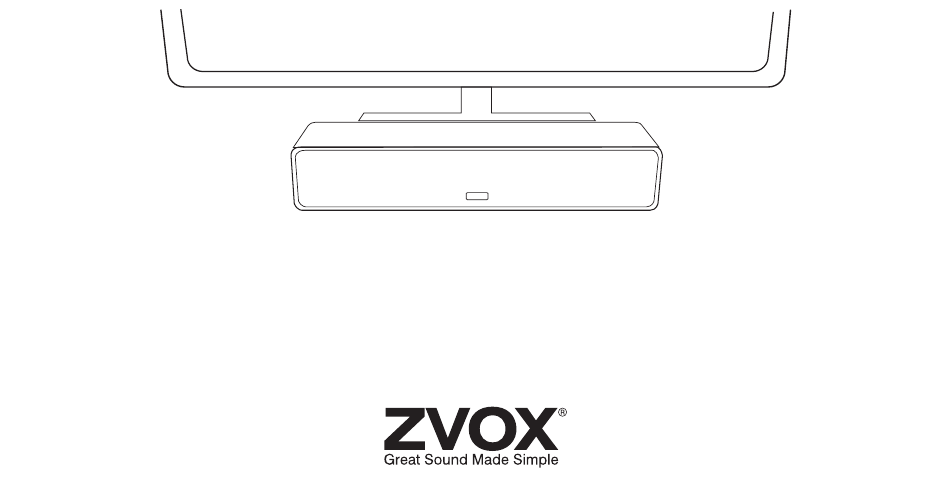

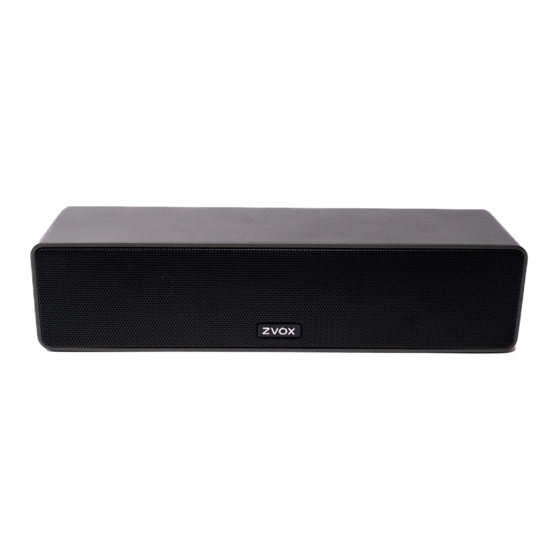

ZVOX AccuVoice TV Speaker
MODEL AV100 MINI | SETUP & OPERATION
Table of Content:
Safety First! ..................... ii
Quick Setup Guide ....... 1
Alternative Setups ........ 2
Cables & Placement ...... 3
Remote Description ....... 4
www.zvox.com
LED Display Guide .......... 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zvox Audio AccuVoice AV100 MINI
Summary of Contents for Zvox Audio AccuVoice AV100 MINI
- Page 1 ZVOX AccuVoice TV Speaker MODEL AV100 MINI | SETUP & OPERATION Table of Content: Safety First! ..... ii Quick Setup Guide ..1 Alternative Setups ..2 Cables & Placement ..3 Remote Description ..4 www.zvox.com LED Display Guide ..5...
-
Page 2: Read This First
Keep these instructions. blade wider than the other). This plug will fit into the power Heed all warnings. Important Safety Instructions For ZVOX Audio System outlet only one way. This is a safety feature. If you are unable Follow all instructions. - Page 3 Quick Setup Guide (This quick setup guide applies the optical digital audio connection (A) as the primary example. This is the most common audio output on modern TVs Follow instructions (A, B, C, or D) according to the available TV audio out jacks. Back of TV A) Optical port of TV set.
- Page 4 TVs main volume above 50% and continue -> Options or Settings -> Sound or Audio -> TV Speakers -> OFF or This ZVOX Audio soundbar does not have a coaxial-format digital audio using the ZVOX remote for volume control, If not it may cause a Speaker List, Sound Out ->...
-
Page 5: Placement Options
Supplied Audio Signal Cable Guide Placement Options The Mini includes two analog signal cables and one optical digital signal cable with a standard optical plug on one end and a mini optical plug on the other end. One of these three cables will connect from most TVs or cable/satellite set top boxes to the input on the Mini. In the rare instance your TV or cable/satellite set top box has only an optical minijack audio output, an optical miniplug to optical miniplug cable is needed (not supplied with the AV100 Mini). - Page 6 Button Functions on the ZVOX Remote Control Power Tap the POWER button to swtich the ZVOX speaker between off/standby and on. When the ZVOX Mini is powered on, you will see four blue light flash behind the front speaker. When it is powered off into STANDBY, you will see the amber light flash four times.
- Page 7 AV100 Mini Display Indicator Guide Represents Blue LED Represents Amber/Orange LED Power On: 4 Blue LED flashes Power Off: 4 Amber/Orange LED flashes MUTE: Amber/Orange & Blue simultaneously blinking Volume Up: Amber/Orange LED quickly blink Volume Down: Blue LED quickly blink Accuvoice: Accuvoice 1 amber/Orange &...
- Page 8 10:00 AM to 6:00 PM on Saturday. For further information about additional options, please refer to the ZVOX Audio website, www. zvoxaudio.com or support.zvox.com www.zvox.com 4001201 2021 © 2021 ZVOX Audio LLC. ® ZVOX, AccuVoice & PhaseCue are registered trademarks of ZVOX Audio LLC.
