NewTek TriCaster Mini Quick Start Manual page 2

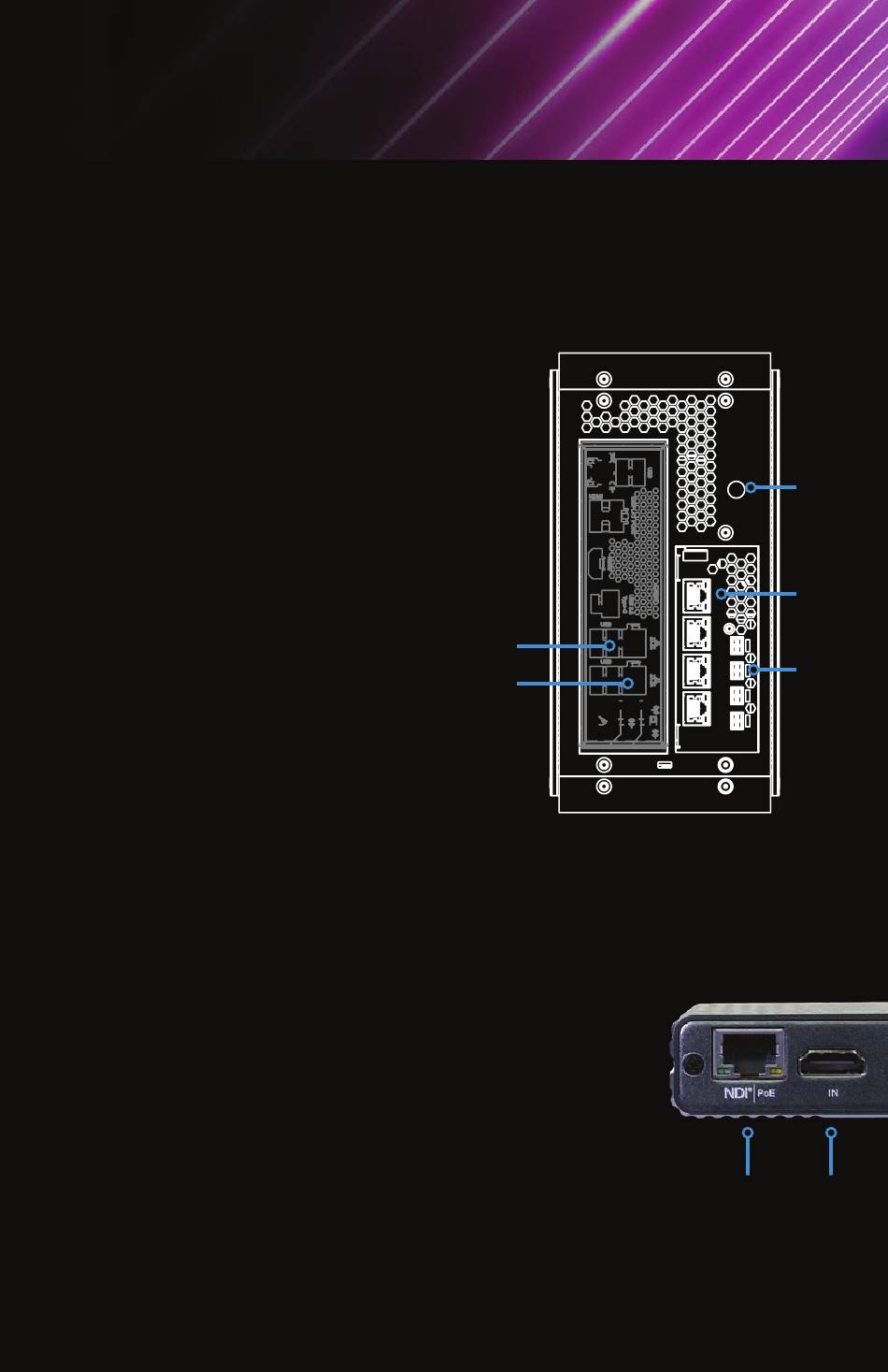

Connections Set Up | Back Panel
1. Power Connector
• Connect the removable power cord
to the power supply
• Connect the power supply
cable to the power connector on
the unit
• Plug in the removable power cable
to an electrical power source
2. Mini DisplayPort Connectors
• Connect mini DisplayPort
adaptors to unit
• Connect adaptors to monitors
or displays using HDMI or
DisplayPort cables
3. USB 3 Connectors
• Connect keyboard and mouse
Pro Tip: If USB extenders are needed
for peripheral devices, performance
can vary and it is recommended to
contact an authorized Newtek supplier
for advice.
4. Gigabit Ethernet Network
Connectors
• Connect to network for more input
sources, outputs, and internet
access
5. NDI Source Connectors
®
• Connect network cables to NDI
connector (6) on the
Spark Plus
™
I/O 4K
3
4
®
Back
Spark Plu
6
1
5
2
7
