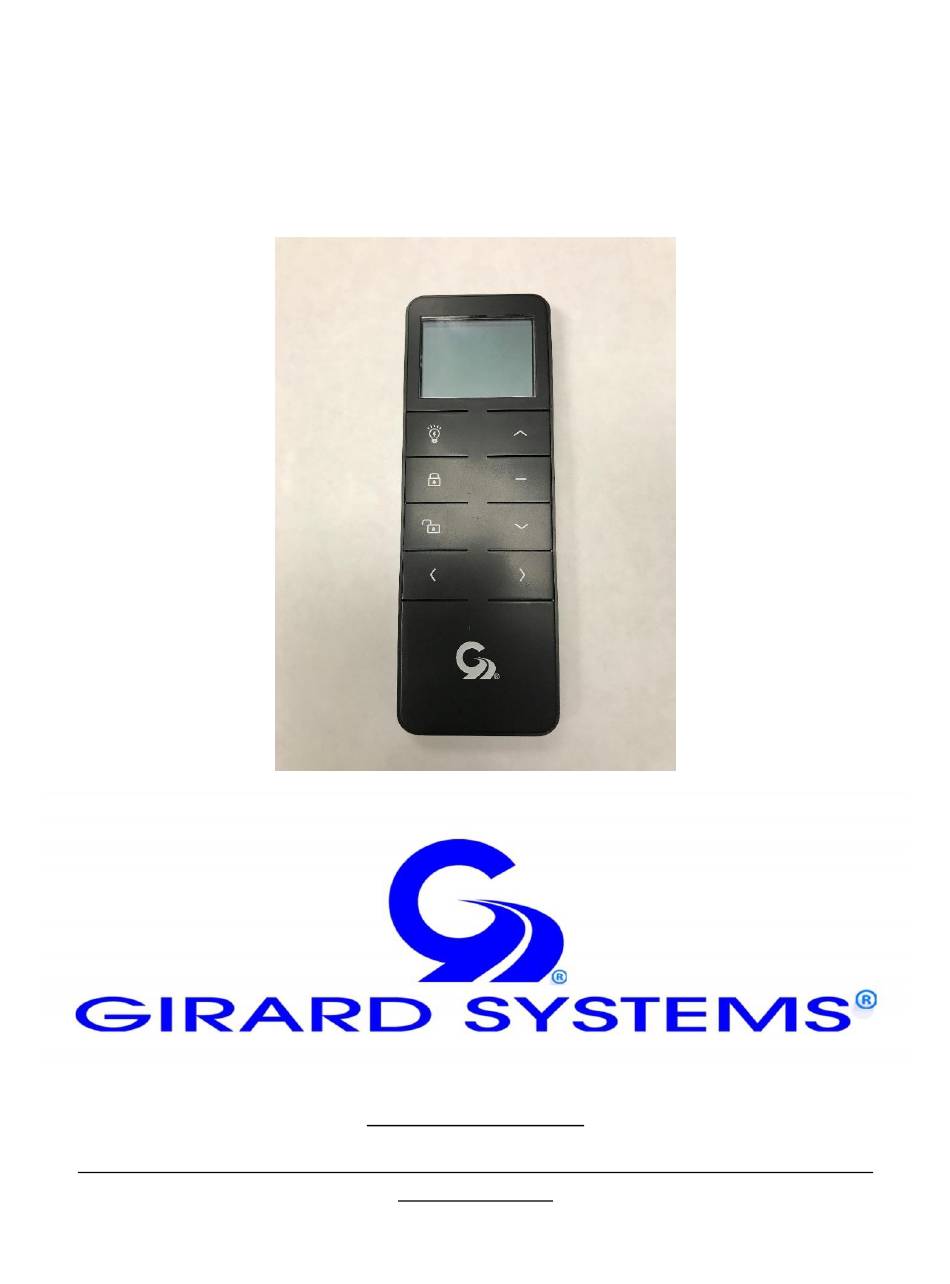

- Page 1 98GC2762B MULTI CHANNEL REMOTE HANDSET PROGRAMMING GUIDE RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (949) 259-4000 FAX (949)276-5500 www.girardrv.com...
- Page 2 Shore Power – if connected; Generator Power – if the generator is running; Inverter Power – batteries must be charged for inverter operation. Girard Systems awnings are supplied with an electric motor appropriate to the product.
-
Page 3: Table Of Contents
These components must be electronically matched, programmed or paired before use. This is usually done at the Girard Systems factory. Should the need arise for the user to pair a device with the motor controller they must refer to the appropriate manual for the devices applicable to their installation. -
Page 4: Product Description
PRODUCT DESCRIPTION The 98GC2762 remote handset is a Multi-channel RF transmitter, powered by a single 3v Lithium battery (CR2450) designed to control up to 15 awnings and operate the LED lighting strips by means of a multi-functional circular control pad. As shown in Fig.1 below. - Page 5 To find the battery turn the remote handset over and slide the cover down; • The Battery compartment, (into which a single CR2450 3v Lithium battery should be inserted as shown) • The P2 button (used when pairing the device to some other G-Link Modules) Fig.2...
-
Page 6: Programming
PROGRAMMING The following pages give instructions of how to Program or electronically Pair the handset with various motor controllers. Ensure that you select the correct set of instructions for the motor controller on your vehicle. GC136 AC Motor Controller Program Button Stop Button Fig.3 Fig.4... -
Page 7: Gc274B / Gc274C Ac Motor Controllers
GC274B / GC274C AC motor Controllers CHANGE MOTOR DIRECTION PROGRAM MODE Fig.5 To pair the Remote handset with a GC274A or GC274B follow the steps below. Note; when carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. -
Page 8: 98Gc74 Ac Motor Controller
98GC74 AC Motor Controller Fig.6 When pairing with the 98GC74 it is advised that the awning to be controlled is manually extended couple of feet to enable the programmer to see if the awning is responding in the correct direction when the buttons on the remote handset are pressed. The programming window for this module is only 6 seconds so please ensure that the programming instructions are read and understood before attempting to execute them. -
Page 9: Gc732G Dc Motor Controller
GC732G DC Motor Controller Program Button Fig.7 To pair the Remote handset with a GC732G Motor controller, follow the steps below. Note; when carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. It is highly recommended that you read and understand the following sequence before attempting to execute it. -
Page 10: Gc1146C Dc Motor Controller
GC1146C DC Motor Controller Fig.8 To pair the Remote handset with a GC1146C Motor controller, follow the steps below. • Fully extend the awning to ensure smooth operation, and then retract the awning leaving it partially open (about 3 feet). •... - Page 11 Ensure that the awning responds correctly to the wall switch by pressing the OUT, STOP and IN buttons alternately. For queries or assistance with programming any remote handset to any of your G-Link devices please call Girard Systems toll free on 800–382–8442 between 7:30am and 5:00pm P.S.T.
