Summary of Contents for Girard Systems GC104

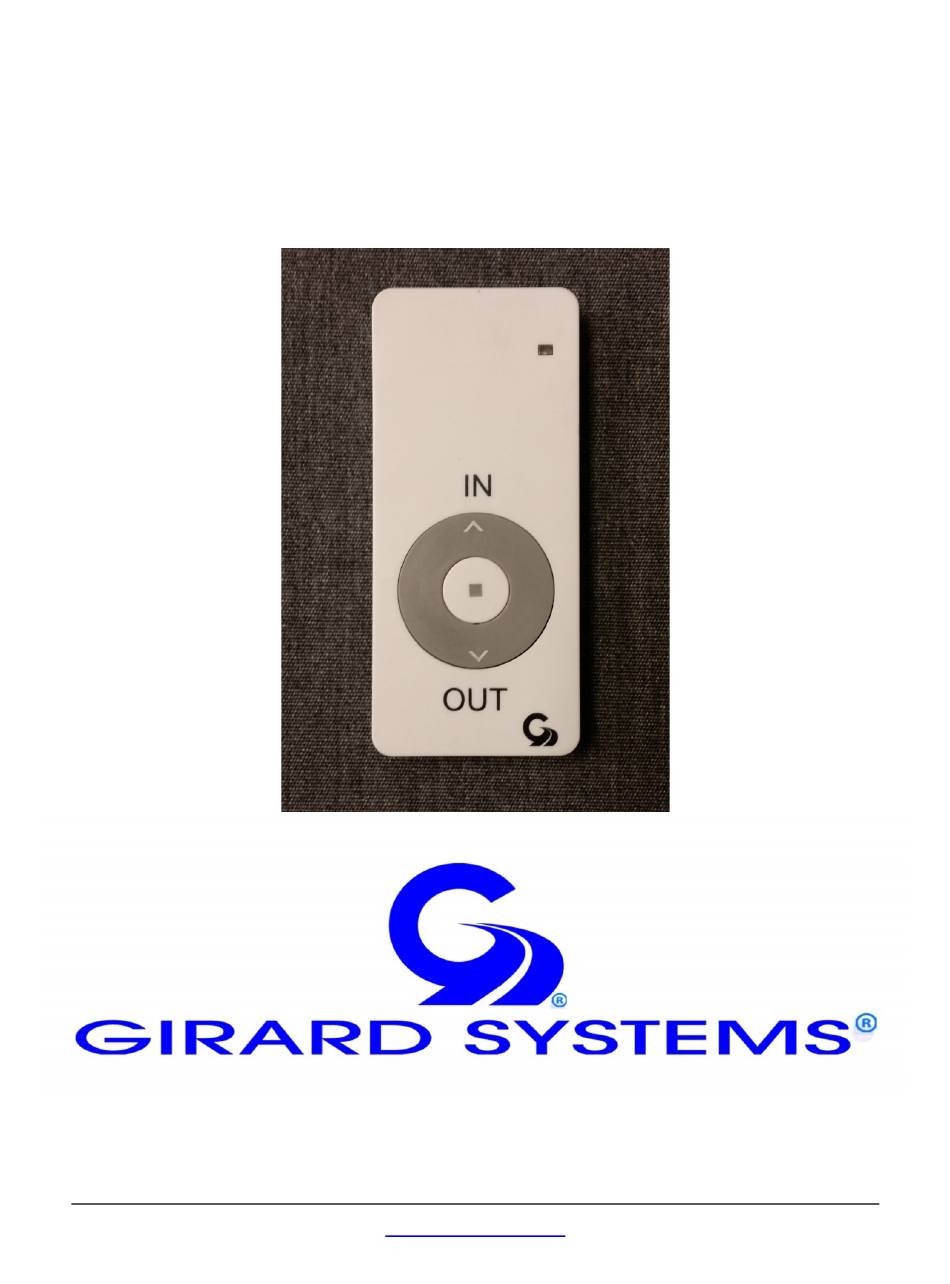

- Page 1 1 CHANNEL REMOTE HANDSET GC104 INSTALLATION AND PROGRAMMING GUIDE REV.12302015 RV AWNING PRODUCTS (800) 382-8442 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 FAX (949)276-5500 www.girardrv.com...
- Page 2 Shore Power – if connected; Generator Power – if the generator is running; Inverter Power – batteries must be charged for inverter operation. Girard Systems awnings are supplied with an electric motor appropriate to the product. Page 2 of 11...
-
Page 3: Table Of Contents
These components must be electronically matched, programmed or paired before use. This is usually done at the Girard Systems factory. Should the need arise for the user to pair a device with the motor controller they must refer to the appropriate manual for the devices applicable to their particular installation. -
Page 4: Product Description
PRODUCT DESCRIPTION The GC104 is a single channel RF transmitter, powered by a single 3v Lithium battery (CR2430) designed to control 1 awning by means of a multi-functional circular control pad. As shown in Fig.1 below. Awning retract Stop Awning extend Fig.1... - Page 5 Turn the remote handset over to find; • The Battery compartment, (into which a single CR2430 3v Lithium battery should be inserted as shown) • The P2 button (used when pairing the device to some other G-Link Modules) P2 Button Fig.2 Page 5 of 11...
-
Page 6: Programming
Stop Button Fig.1 Fig.2 To pair the GC104 Remote handset with a GC136 Motor controller, follow the steps below. Note; when carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. -
Page 7: Gc274A / Gc274B Ac Motor Controllers
Lid Release Fig.3 To pair the GC104 Remote handset with a GC274A or GC274B, first remove the lid of the motor control module by pressing on the Lid release catches as shown in Fig.3 Note; when carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. -
Page 8: 98Gc74 Ac Motor Controller
98GC74 AC Motor Controller When pairing with the 98GC74 it is advised that the awning to be controlled is manually extended couple of feet to enable the programmer to see if the awning is responding in the correct direction when the buttons on the remote handset are pressed. The programming window for this module is only 6 seconds so please ensure that the programming instructions are read and understood before attempting to execute them. -
Page 9: Gc732G Dc Motor Controller
GC732G DC Motor Controller Program Button Fig.4 To pair the GC10 Remote handset with a GC732G Motor controller, follow the steps below. Note; when carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. -
Page 10: Gc1146C Dc Motor Controller
GC1146C DC Motor Controller To pair the GC104 Remote handset with a GC1146C Motor controller, follow the steps below. • Fully extend the awning to ensure smooth operation, and then retract the awning leaving it partially open (about 3 feet). - Page 11 Ensure that the awning responds correctly to the wall switch by pressing the OUT, STOP and IN buttons alternately. For queries or assistance with programming the GC104 remote handset to any of your G-Link devices please call Girard Systems toll free on 800–382–8442 between 7:30am and 3:30pm P.S.T.
