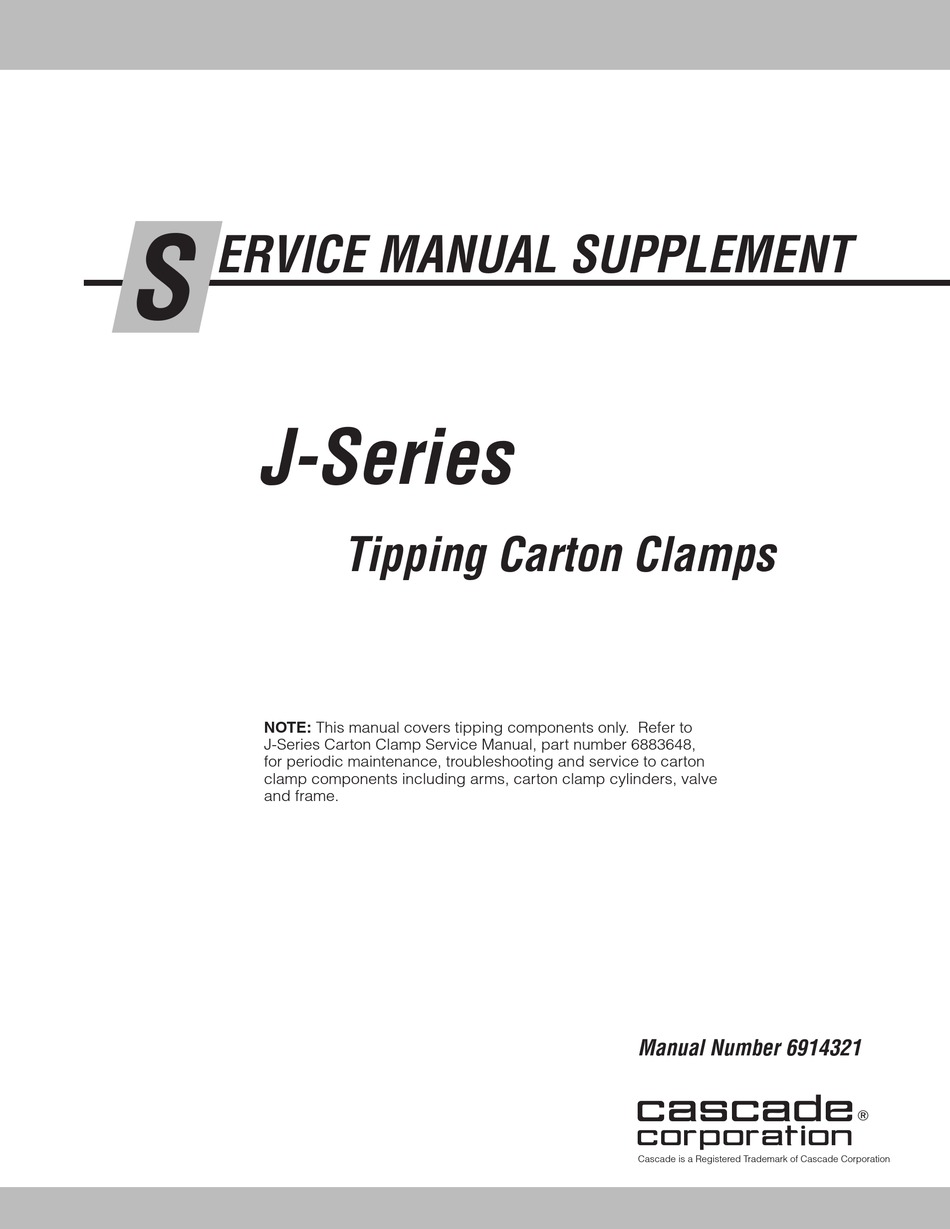

J-Series Carton Clamp Service Manual, part number 6883648, for periodic maintenance, troubleshooting and service to carton clamp components including arms, carton clamp cylinders, valve and frame. Manual Number 6914321 cascade corporation Cascade is a Registered Trademark of Cascade Corporation...
All fasteners have a torque value range of ±10% of stated value. 8J-CCU-2A-12345 A2-Z PTL012345678 Nameplate Cascade Corporation • www.cascorp.com • Icons & Patents: www.cascorp.com/support 6095754 CC0244.eps Special Definitions The statements shown appear throughout this manual where special emphasis is required. Read all WARNINGS and CAUTIONS before proceeding with any work.
PERIODIC MAINTENANCE IMPORTANT: This section covers periodic maintenance WARNING: After completing any service for tipping components only. In addition to the periodic procedure, always test the attachment maintenance below, perform the periodic maintenance through five complete cycles. First test found in J-Series Carton Clamp Service Manual, part the attachment empty, then test with a load number 6883648.
TROUBLESHOOTING General Procedures WARNING: Before servicing any hydraulic component, relieve pressure IMPORTANT: Troubleshooting the SIDESHIFT or CLAMP in the system. Turn the truck off and circuits can be found in J-Series Carton Clamp Service move the truck auxiliary control valves Manual, part no.
TROUBLESHOOTING Troubleshooting Chart 3.1-3 Determine All The Facts It is important that all the facts regarding the problem are gathered before beginning service procedures. The first step is to talk to the equipment operator. Ask for a complete description of the malfunction.
TROUBLESHOOTING Hosing Diagram – 3.2-5 Arm Cylinders Sideshifting Clamp with Solenoid TIP BACK PRESSURE RETURN Tipping NOTE: For TIP FORWARD reverse the Cylinders colors shown. Counterbalance Valve Solenoid Valve 2-Port Hose Reel Carton Clamp Valve or Internal Hose Reel TIP and SIDESHIFT 2-Port Hose Reel or Truck Auxiliary Valve Internal Hose Reel...
TROUBLESHOOTING Tipping Function Valve Counterbalance There are five potential problem areas that can affect the Cartridge TIP function: • Incorrect load handling. Refer to Operator’s Guide, Cascade part no. 210135, for suggested handling procedures. • Incorrect hydraulic pressure or flow from the lift truck. •...
TROUBLESHOOTING Electrical Circuit (Solenoid-equipped attachments) Use the schematic shown and follow the steps below. Check the control knob circuit fuse. Replace as necessary. Check for loose electrical connections at the truck ignition switch, control knob button, solenoid coil terminals and diode. Remove the diode from the solenoid coil terminal.
SERVICE Attachment Removal Position the attachment's arm to the width of the frame. WARNING: Before removing hydraulic lines, relieve pressure in the hydraulic system. Turn the truck off and open the truck auxiliary control valves several times in both directions. Disconnect and plug the hydraulic supply hoses to the attachment.
SERVICE NOTE: Manuals are available at www.cascorp.com under the support tab, "Technical Support Manuals" link. Arms To remove and service arms, contact pads, arm bearings, refer to J-Series Carton Clamp Service Manual, part number 6883648. Arm Cylinders To remove and service arm cylinders, refer to J-Series Carton Clamp Service Manual, part number 6883648.
SERVICE Back Mounting Frame Back Mounting Frame Removal and Installation 4.6-1 Frame Remove the attachment from the lift truck as described in Section 4.1. WARNING: Before removing any hoses, relieve pressure in the hydraulic system. With the truck off, open the truck auxiliary control valve(s) several times in both directions.
SERVICE Bushing Service 4.6-2 One-Piece Back Mounting Frame Remove the back mounting frame (or frames) as described in Section 4.6-1. Remove the pivot bushings from back mounting frame using a bushing driver. NOTE: Bushing drivers can be machined using the dimensions shown below.
SERVICE Tipping Cylinder Back Mounting Frame Removal and Installation 4.7-1 Tipping Cylinder Remove the attachment from the lift truck as described in Section 4.1. WARNING: Before removing any hoses, relieve pressure in the hydraulic system. With the truck off, open the truck auxiliary control valve(s) several times in both directions.
SERVICE 18J Counterbalance Valve 4.7-2 Cartridge Service Counterbalance Position the cylinders to gain access to the cylinder Valve Cartridge counterbalance valve. Tipping Cylinder Junction Block WARNING: Before removing any hoses, relieve pressure in the hydraulic system. With the truck off, open the truck auxiliary control valve(s) several times in both directions.
SERVICE 18J Cylinder Bushing Service 4.7-3 NOTE: Bushings require replacement if the clearance between the bushing and pin exceeds 1/16 in. (1.6 mm). Remove the tipping cylinder from the attachment as described in Section 4.7-1. Remove the bushings from the cylinder using a bushing driver.
SERVICE Cylinder Disassembly 4.7-4 Clamp the cylinder using the vise jaws to contact only the extreme end of the cylinder base. NOTE: Use a soft-jawed vise for all cylinder disassembly and assembly procedures. RC0314.eps Remove the cylinder retainer by unscrewing it with a pin-type spanner wrench.
SERVICE Cylinder Reassembly Chamfer 4.7-6 Angle Using 400-grit emery cloth, polish the piston and retainer chamfer angles. Remove sharp edges on internal threads in cylinder shell. Clean all parts thoroughly. Lubricate all new seals and O-rings with petroleum jelly. Install a new O-ring and back-up seal in the piston ID and piston seal on the piston OD.
SERVICE Valves Counterbalance Valve Service 4.8-1 The following procedure can be performed with the attachment mounted on the truck. Raise the attachment so that the valve is accessible. WARNING: Before removing any hoses, relieve pressure in the hydraulic system. With the truck off, open the truck auxiliary control valve(s) several times in both directions.
SERVICE Solenoid Valve Coil Service 4.8-2 Disconnect the wires and diode from the coil terminals. Remove the end cover capscrews and remove the end cover and coil. Note the position of the coil terminals. Install the new coil and end cover. Verify that the terminals are positioned correctly.
SPECIFICATIONS Truck Carriage Carriage Mount Dimension (A) ITA (ISO) Minimum Maximum 14.94 in. (380.0 mm) 15.00 in. (381.0 mm) Class II GA0389.eps 6914321...
SPECIFICATIONS Torque Values Fastener torque values for the tipping attachments are NOTE: For additional torque values related carton clamp shown in the table below in both US and Metric units. All components, refer to J-Series Carton Clamp Service torque values are also called out in each specific service Manual 6883648.
