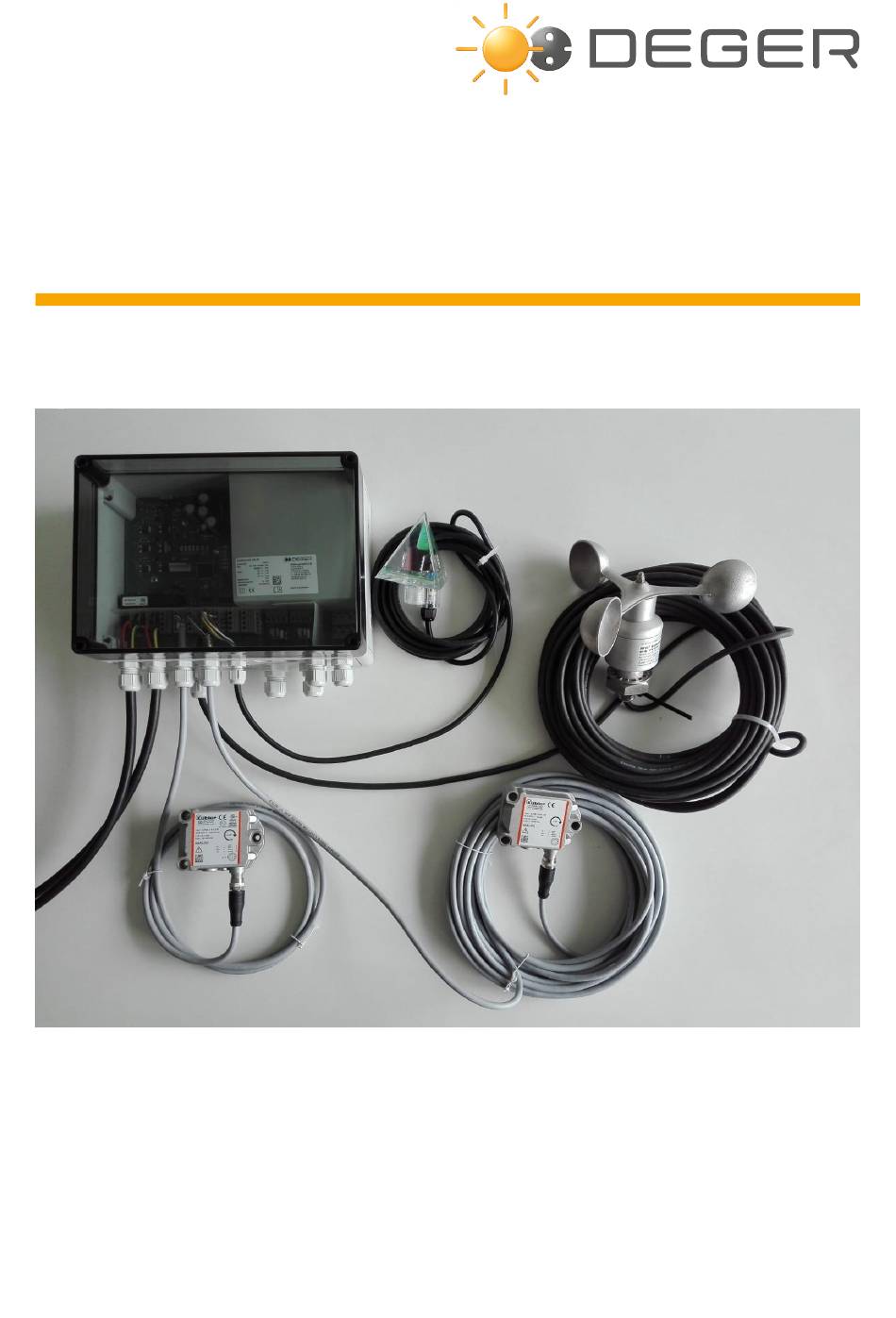

- Page 1 ASSEMBLY INSTRUCTION MLD Control Energy Converter S1 S100-DR S100-SR...
- Page 2 Copyright All information presented in this technical document and the drawings and technical descriptions made available by DEGER remain the property of DEGER and may not be reproduced without prior explicit written permission from DEGER. We reserve the right to make technical changes.
-
Page 3: Table Of Contents
CAN-Bus ............................17 6.2.1 CAN-Bus connections EK-S1 ...................... 17 6.2.2 Connecting CAN-Bus to the management PC ................17 Uninterruptible power supply for a DEGER sytem ................18 Start-up ..............................19 Clearance Check ............................20 CTC manual control ......................... 20 Joystick ............................20 Battery pack ............................. - Page 4 Error Recognition & Removal ......................22 10.2 Fault Report ............................. 24 Maintenance ............................25 Cleaning ............................... 25 Decommissioning ..........................26 13.1 Disassembly............................. 26 13.2 Disposal ............................26 Conformity Declaration ........................27 Publisher Information ........................... 28 27.06.2019 ASSEMBLY INSTRUCTIONS MLD CONTROL EK-S1 Page 4...
-
Page 5: Abbreviations
Abbreviations Elevation (east-west orientation) Central Tracker Control (software) EK-S1 Energy Converter S1 Maximum Light Detection MLD Control Energy Converter, MLD sensor, wind sensor, snow sensor Personal Protective Equipment Uninterruptible power supply 27.06.2019 ASSEMBLY INSTRUCTIONS MLD CONTROL EK-S1 Page 5... -
Page 6: Introduction
Only qualified personnel may perform assembly work. Keep all objects out of the the DEGER system’s full range of pivoting motion throughout its full range of motion. Take necessary actions to protect the installed DEGER system in its full range of motion from unauthorized access, such as enclosing it within a fence. -
Page 7: Symbols Used
Symbols used The following symbols appear on the DEGER system and are used in the present document: No unauthorized access Read and follow the operating manuals and safety information before start-up Presentation of information 1.5.1 Lists and instructions Lists Lists have bullet points:... -
Page 8: Energy Converter S1 (Ek-S1)
This function ensures the module surface is facing east the next morning to receive the first rays of sunlight. The motor will switch on for 12 minutes once the EK-S1 has not registered a signal at terminal XG1 for more than 4 hours. -
Page 9: Ek-S1: Pin Assignments
Pin B: => MLD GND White Pin B: => N - Phase Neutral Specific Pin C: => MLD West Yellow Pin C: => L - Phase Live Pin D: => MLD East Green 27.06.2019 ASSEMBLY INSTRUCTIONS MLD CONTROL EK-S1 Page 9... -
Page 10: Ek-S1 Led - Display
Green LED Irradiation east predominant Red LED moving to face east Red LED LED off motor is off LED off no signal from sensor 27.06.2019 ASSEMBLY INSTRUCTIONS MLD CONTROL EK-S1 Page 10... -
Page 11: Led Assignments
Motor 2 (Slave) active LED off: motor is off Green: Irradiation west predominant MLD sensor Red: Irradiation east predominant Off: No sensor registered on EK-S1 Green: Sensor connected and OK Red: Snow alarm activated Red Slow Flash: Moving to unload position Snow sensor... -
Page 12: Manual Control
3 Manual Control Joystick Functions The external Joystick can be plugged into socket XJ1 during operation of the EK-S1 after removing the cover of the housing. Automatic mode and manual mode from CTC is deactivated once the joystick is plugged in. -
Page 13: Wind Guard
______________________________________________________________________________________ NOTE! Anemometer assembly directly on the tracker is not allowed!!! Connection The anemometer is equipped with a 20 m connection cable. The cable has to be connected to the EK-S1 as described in chapters 2.3 and 6. ____________________________________________________________________________________ NOTE! An anemometer does not have to be installed on every DEGER system in a solar energy plant that has several systems. -
Page 14: Snow Sensor
The snow sensor has to be mounted to the eastern side of the modules positioned next to the middle of the tracker. It is suitable for module heights up to 65 mm. 27.06.2019 ASSEMBLY INSTRUCTIONS MLD CONTROL EK-S1 Page 14... -
Page 15: Assembly
The snow sensor housing should not stick out above or sit below the module surface. Torque: 19 Nm Connection The snow sensor is equipped with a 5 m connection cable. The cable has to be connected to the EK-S1 as described in chapters 2.3 and 6. ____________________________________________________________________________________ NOTE! A snow sensor does not have to be installed on every DEGER system in a solar energy plant that has several systems. -
Page 16: Connections
Only trained and qualified personnel may connect the EK-S1 to external devices. ______________________________________________________________________________________ DANGER! The external voltage supply must meet the regional regulations. The EK-S1 must have mandatory disconnection ability from the supply voltage by a 6A-B circuit breaker. The circuit breaker must be fully accessible. -
Page 17: Can-Bus
CAN-Low, i.e. pin 2 and pin 7 of the D-Sub 9 female plug, which is needed to connect the CAN-Bus cable to the adapter. The termination at the EK-S1’s is made onboard, so you don’t need a resistor at the last unit in the CAN-bus chain. -
Page 18: Uninterruptible Power Supply For A Deger Sytem
DEGER system in case of a power failure into safety position. The UPS must be dimensioned to deliver a power of 180 Watt for at least 10 minutes per EK-S1. Furthermore the UPS has to be designed to be in accordance with local environment and the legal regulations. -
Page 19: Start-Up
Contact with live components can be fatal due to electric shock. The external voltage supply must meet the regional regulations. The EK-S1 must be able to be disconnected from the power supply by a 6A-B circuit breaker. The circuit breaker must be fully accessible. -
Page 20: Clearance Check
EK-S1. The rotary drive must be moved along the entire path to ensure that the DEGER system mechanism can move freely and that all cables are long enough for the entire range of motion. -
Page 21: Technical Data
5% - 95%, non-condensing Expanded air humidity range wind guard 0% to 100% Pollution Degree 2 9.4 General Dimensions 245 mm x 180 mm x 111 mm Total weight including MLD sensor Approx. 3 kg 27.06.2019 ASSEMBLY INSTRUCTIONS MLD CONTROL EK-S1 Page 21... -
Page 22: Troubleshooting
______________________________________________________________________________________ DANGER! When conducting tests on the DEGER system, ensure that all parts have been disconnected from the power supply by an electrical circuit breaker, provided by the client. When conducting tests where there is live voltage, take appropriate actions to prevent injury to persons and property damage. - Page 23 Note: If reprogrammed then replace it with new one without re-programming it. Wind Sensor LED DG1 is off Connect Wind sensor to EK-S1 in solar park LED DG1 fast flashing Red (Sensor Error) Check wiring instruction in Assembly ...
-
Page 24: Fault Report
East-west drive can move in both directions when controlled by the joystick. CTC manual control: Moves into horizontal position Control using wind monitor: Moves into horizontal position Measured values on Energy Converter S1 AC Voltage Input EK-S1 Terminal L-N DC Voltage EK-S1... -
Page 25: Maintenance
11 Maintenance No specific maintenance or repair work is required for the EK-S1. 12 Cleaning - Use soft towels for any necessary cleaning. - Do not use corrosive or aggressive liquids. - Follow the safety information in this operating manual. -
Page 26: Decommissioning
(DC 12 to 26 V). Connect the two wires of the motor to the positive (+) and negative (-) terminal of the battery pack. If the DEGER system moves into the inclined position, switch the wires for the motor at the (+) and (-) terminal of the battery pack. -
Page 27: Conformity Declaration
This declaration of conformity will lose its validity, if the product is modified, supplemented or changed in any other way without our explicit consent and/or components not belonging to the range of accessories offered by DEGER, are used and also in case of improper assembly and installation or unintended use. -
Page 28: Publisher Information
Registry Court: Stuttgart District Court HRA 730079 VAT ID No.: DE 295812054 Partner Company: DE Verwaltungs GmbH Registry Court of Companies: Stuttgart District Court HRB 749359 CEO: Hünkar Korkmaz Registered Head Office: Horb am Neckar 27.06.2019 ASSEMBLY INSTRUCTIONS MLD CONTROL EK-S1 Page 28...
