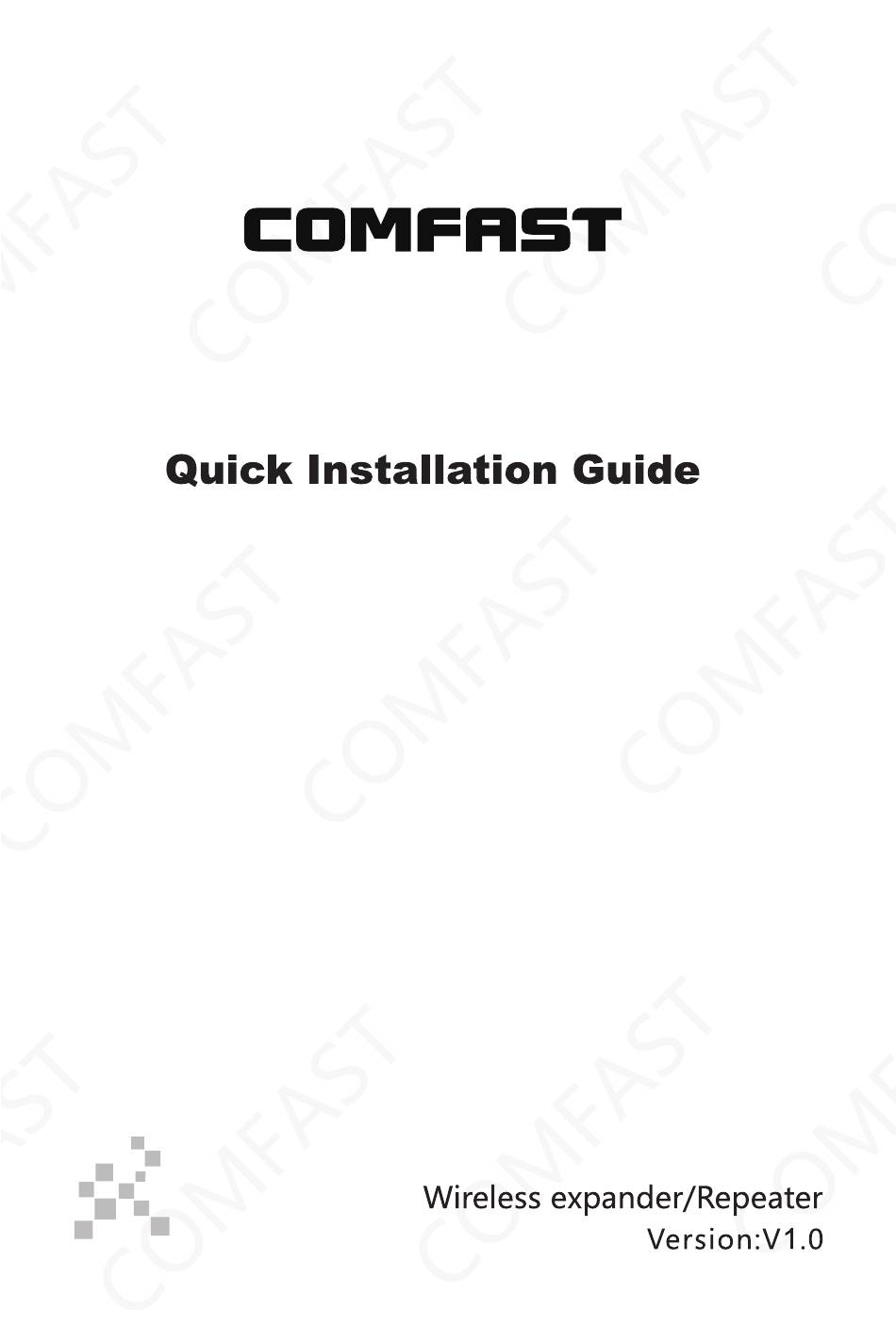

- Page 1 M0304475...

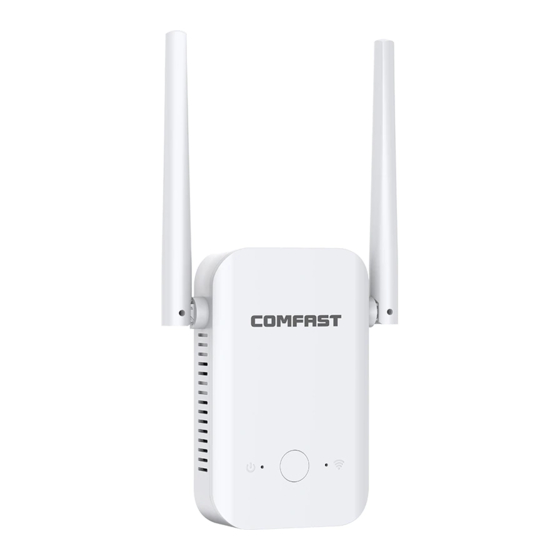

- Page 2 Power Indicator WPS/Reset reset button WiFi Indicator The wifi light flashes green for 3 seconds, the reset is successful.
-
Page 3: Initial Connection
Initial Connection Use a wireless device to connect to the device with the SSID of COMFAST_XXXX_2G (XXXX is the last two digits of the MAC address). After the connection is complete, open the browser and enter the IP address 192.168.10.1, enter the login page, and enter the default password admin to log in to the web page. - Page 4 RSSI Select Connected to: COMFAST-OE8R-2G Pre shared Key : 1234567890 Save Setting Re Scan Log In Normally Enter the password and click "Login" to complete the login. If the current device has successfully extended the upper-level device, it will jump to the main page after logging in. If the device is not extended or the extended upper-level device has failed, it will jump to the relay scan page.
-
Page 5: Lan Settings
Repeater Mode And Bridge Mode Log in to the main page. Click on the repeater mode and bridge mode sections corresponding to the main page to enter the corresponding mode scan page。 Repeater Bridge Network:Connected Users:1 LAN settings Click the blue computer icon section on the main page to enter the LAN settings page... -
Page 6: Wireless Setting
LAN Settings Repeater IP Address 192.168.10.1 Subnet Mask 255.255.255.0 Bridge DHCP Server Enabled DHCP pool start Network:Connected Max Clients Lease time（sec） 43200 Apply Users:1 Wireless Setting Click on the wireless icon section on the homepage to enter the wireless setting page... - Page 7 2.4GWireless Repeater SSID COMFAST_301S WiFi Password 1234567890 Bridge Advance Network:Connected Apply Users:1 Reset Press the reset button for about 7 seconds, then release the button to finish reset.
-
Page 8: Wps Function
WPS function Press the wps button, the wifi green light starts to flash, and the device enters the wps mode. If there is no connection or the connection is unsuccessful within 2 minutes after entering the wps mode, the device exits the wps mode and the wifi light returns to the state before using the wps function.
