Summary of Contents for ConnectSense CS-IWO-15

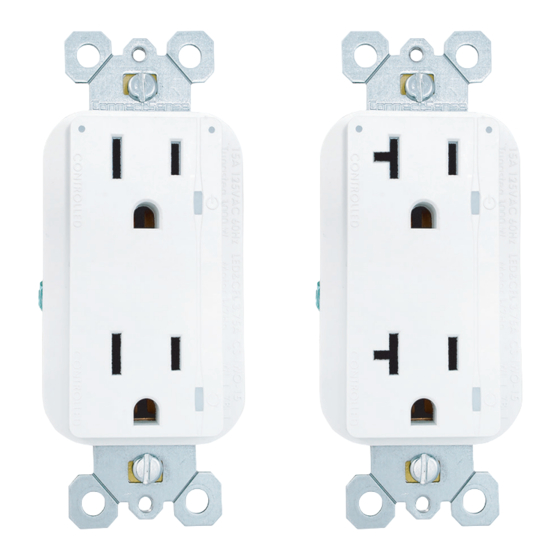

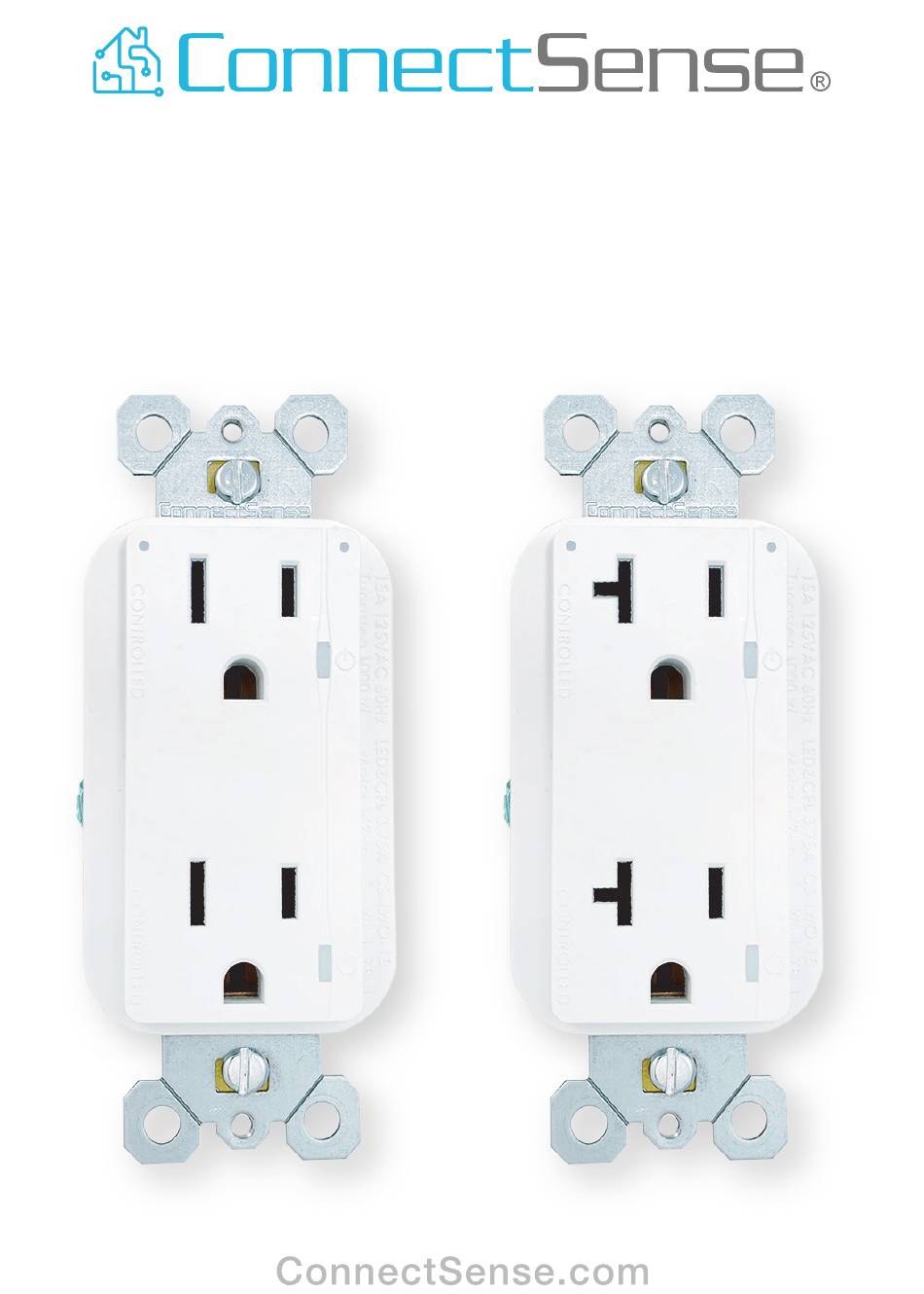

- Page 1 IN-WALL OUTLET Installation Instructions...
- Page 3 WARNING This product requires handling of high voltage wiring. Please turn off your circuit breaker and follow instructions carefully. Turn off your circuit breakers and follow safety precautions in order to avoid fire, personal injury, or death. Consult a Qualified Electrician if you do not have experience with high voltage wiring!
-
Page 4: What's In The Box
WHAT’S IN THE BOX? ConnectSense In-Wall Outlet (20 amp pictured) 2 mounting screws... -
Page 5: What You'll Need
WHAT YOU’LL NEED Phillips head #2 screwdriver Flat head screwdriver Wall plate Pliers (optional) - Page 6 Config and Cat. No. Tungsten, A LED & CFL, A Motor Electrical Rating Receptacle with integral switching means 5-15 R 1/2 HP 1000 (8.3) 3.75 CS-IWO-15 15A, 125 V motor 5-20 R 1 HP 1500 (12.5) CS-IWO-20 20A, 125 V motor...
- Page 7 TURN OFF YOUR BREAKERS Turn off the circuit breaker for the outlet you are replacing. If breakers aren’t labeled, turn off master breaker. Before proceeding - Check for power by plugging in a device to confirm breakers are off.
- Page 8 REMOVE OLD OUTLET Unscrew wall plate and outlet from wall. Carefully disconnect wires attached to outlet. Remove your existing outlet. Before removing - Be sure the device is not powered.
- Page 10 IDENTIFY & STRIP WIRES You should see 3 types of wires in your wall: Line (Black) Neutral (White) Ground (Green) Be sure your wires have a ½ inch stripped at the end of each wire. Use a proper* screwdriver to tighten the terminal screws.
- Page 11 Neutral Wire Line Wire Ground Wire...
- Page 12 CONNECT IN-WALL OUTLET Line Wire (Black) Neutral Wire (White) Ground Wire (Green) To connect another device on the same circuit, use the two middle inputs. Be sure that the line and neutral are installed into the correct input location.
- Page 14 MOUNT IN-WALL OUTLET Use the mounting screws provided to mount your ConnectSense In-Wall Outlet.
-
Page 15: Power On System
POWER ON SYSTEM Return to circuit breaker and turn on power. - Page 16 TEST YOUR IN-WALL OUTLET Test the outlet by double tapping the icons. LED indicates a tap has been received.
-
Page 17: Installation Complete
Wi-Fi, and begin enjoying the smart features of the device. To connect to HomeKit, use the Home app or ConnectSense app on your iOS device. A backup code is available on the last page of this manual. - Page 18 YOUR IN-WALL OUTLET...
- Page 19 Setup Indicator Blinking Red - Connection failed, try reset Blinking Yellow – Waiting to connect to a Wi-Fi network Blinking Green – Connected Off – Setup is Complete Capacitive Touch Indicator Blink – Touch detected Plug A – Double tap On/Off NFC Pairing –...
-
Page 20: Led Color Codes
LED COLOR CODES SETUP INDICATOR LED State Description Device ready to add to Wi-Fi Network Yellow - Slow blink Yellow - On Reboot device to add to Wi-Fi Network Yellow - Fast blink Device connecting to Wi-Fi Network Green - Slow Blink Connected to your Wi-Fi Network & Finishing Setup Green - On, then off Setup Complete... - Page 21 CAPACITIVE TOUCH INDICATOR LED State Description Touch Blue - Blink Double tap power button, when off Blink per button press Double tap power button, when on Blink per button press Reboot Three taps + hold for 5 seconds Setup indicator turns solid blue Wifi Reset Three taps + hold for 10 seconds Setup indicator turns solid yellow...
-
Page 22: Troubleshooting
5 times into Plug B. For commonly asked questions about the In-Wall Outlet, visit ConnectSense.com/IWOFAQ For instructions to connect to Amazon Alexa, visit ConnectSense.com/IWOAlexa For instructions to connect to Google Assistant, visit ConnectSense.com/IWOGA We are here to help! ConnectSense.com... - Page 23 LEGAL FCC/IC Information: This device complies with Part 15 of the FCC Rules and with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 24 IN-WALL OUTLET HomeKit Code...
