Summary of Contents for ConnectSense CS-IWO-15

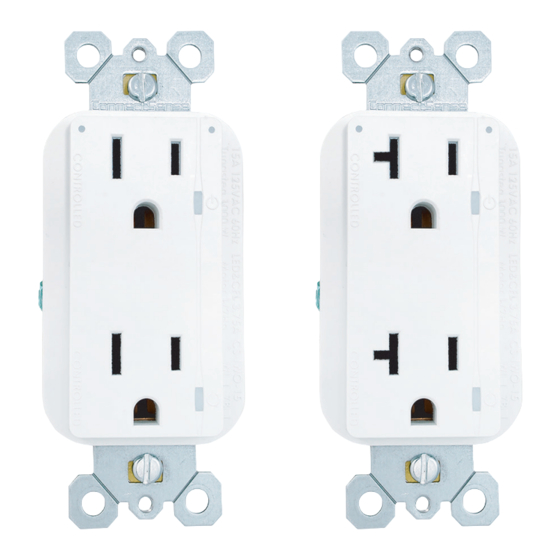

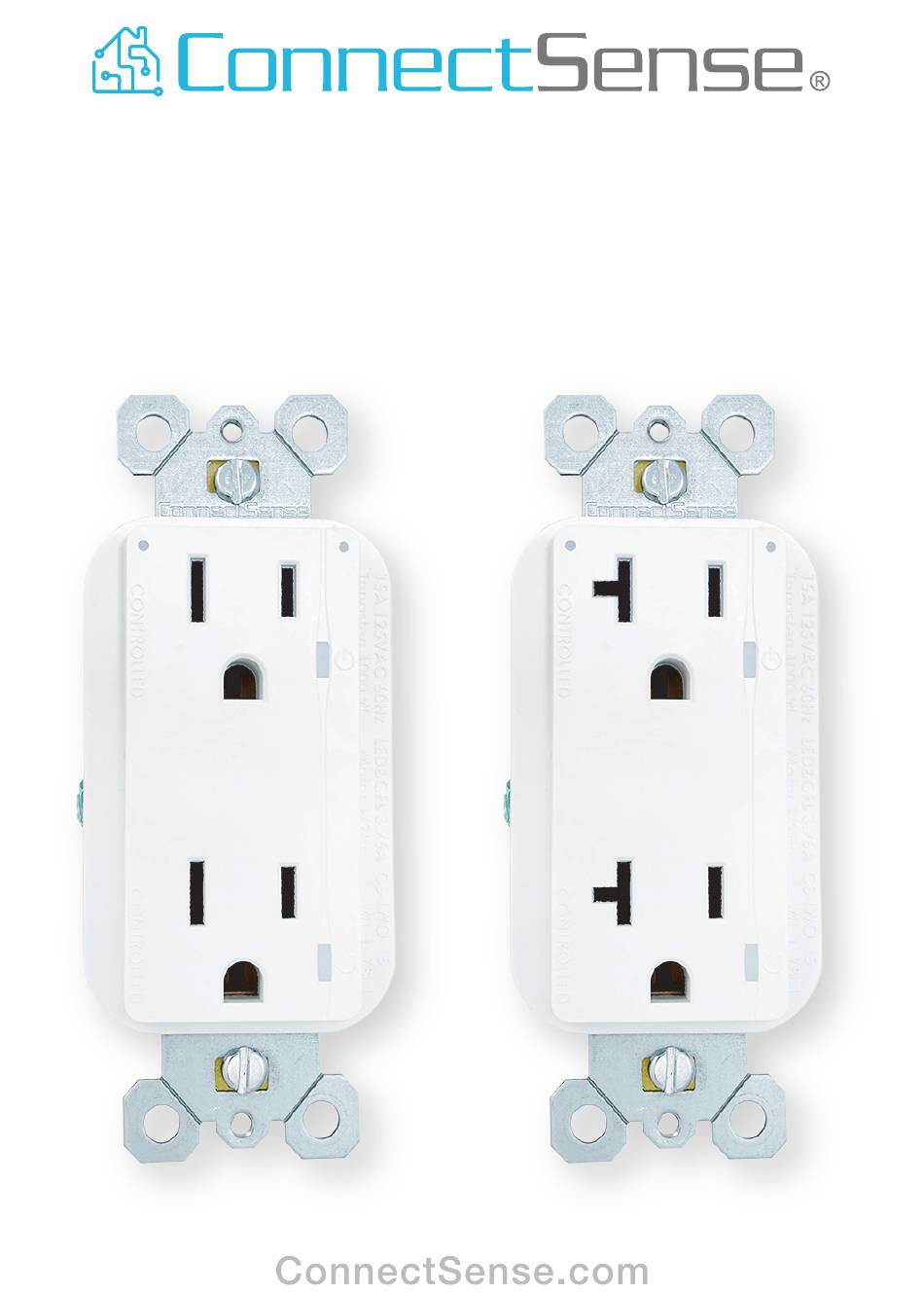

- Page 1 IN-WALL OUTLET Installation Instructions...
- Page 2 WARNING This product requires handling of high voltage wiring. Please turn off your circuit breaker and follow instructions carefully. Turn off your circuit breakers and follow safety precautions in order to avoid fire, personal injury, or death. Consult a Qualified Electrician if you do not have experience with high voltage wiring!
-
Page 3: What's In The Box
WHAT’S IN THE BOX? WHAT YOU’LL NEED Phillips head #2 screwdriver Flat head screwdriver ConnectSense In-Wall Outlet (20 amp pictured) 2 mounting screws Wall plate Pliers (optional) - Page 4 Tungsten, A LED & CFL, A Motor Electrical Rating are replacing. If breakers aren’t labeled, turn Receptacle with integral switching means off master breaker. 5-15 R 1/2 HP CS-IWO-15 1000 (8.3) 3.75 15A, 125 V motor Before proceeding - Check for 5-20 R 1 HP 1500 (12.5)
- Page 5 REMOVE OLD OUTLET Unscrew wall plate and outlet from wall. Carefully disconnect wires attached to outlet. Remove your existing outlet. Before removing - Be sure the device is not powered.
- Page 6 IDENTIFY & STRIP WIRES Neutral Wire You should see 3 types of wires in your wall: Line (Black) Neutral (White) Line Wire Ground (Green) Be sure your wires have a ½ inch stripped at the end of each wire. Use a proper* screwdriver to tighten the terminal screws.
- Page 7 CONNECT IN-WALL OUTLET Line Wire (Black) Neutral Wire (White) Ground Wire (Green) To connect another device on the same circuit, use the two middle inputs. Be sure that the line and neutral are installed into the correct input location.
-
Page 8: Power On System
MOUNT IN-WALL OUTLET POWER ON SYSTEM Use the mounting screws provided to mount Return to circuit breaker and turn on power. your ConnectSense In-Wall Outlet. -
Page 9: Installation Complete
To connect to HomeKit, use the Home app or ConnectSense app on your iOS device. A backup code is available on the last page of this manual. LED indicates a tap has been received. - Page 10 YOUR IN-WALL OUTLET Setup Indicator Blinking Red - Connection failed, try reset Blinking Yellow – Waiting to connect to a Wi-Fi network Blinking Green – Connected Off – Setup is Complete Capacitive Touch Indicator Blink – Touch detected Plug A – Double tap On/Off NFC Pairing –...
-
Page 11: Led Color Codes
LED COLOR CODES SETUP INDICATOR CAPACITIVE TOUCH INDICATOR LED State Description LED State Description Device ready to add to Wi-Fi Network Touch Yellow - Slow blink Blue - Blink Yellow - On Reboot device to add to Wi-Fi Network Double tap power button, when off Blink per button press Yellow - Fast blink Device connecting to Wi-Fi Network... -
Page 12: Troubleshooting
économique Canada pour fonctionner avec les types d’antenne énumérés ci-dessous, avec le gain maximal autorisé indiqué. Les types d'antennes qui ne figurent pas dans cette liste, et qui ont un gain visit ConnectSense.com/IWOAlexa supérieur au gain maximal indiqué pour n'importe quel type énuméré dans la liste, sont strictement interdits pour être utilisés avec cet appareil. - Page 13 IN-WALL OUTLET HomeKit Code...
