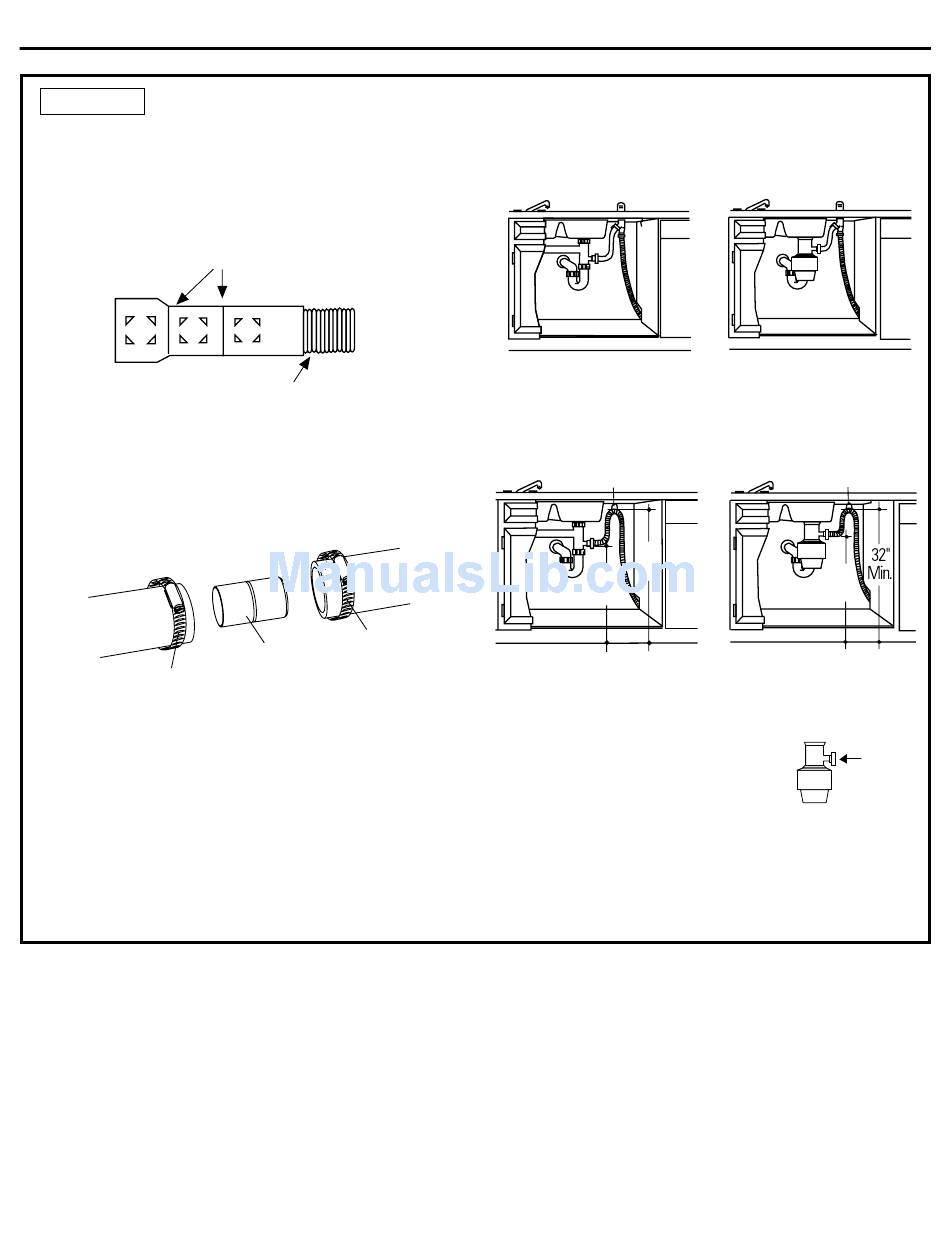

STEP 13 CONNECT DRAIN LINE

FOLLOW ALL LOCAL CODES AND ORDINANCES.
The drain hose molded end will fit 5/8", 3/4" or 1"
diameter connections on the air gap, waste tee or
disposer. Cut on the marked line as required for your
installation.
Cutting Lines
3/4"
1"
IMPORTANT: Do not cut corrugated
portion of hose
• If a longer drain hose is required, add up to 42" of
length for a total of 10 ft. to the factory installed hose.
Use 5/8" or 7/8" inside diameter hose and a coupler to
connect the two hose ends. Secure the connection
with hose clamps.
Hose Clamp
• Secure the drain hose to the air gap, waste tee or
disposer with clamps.
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
10 FEET FOR PROPER DRAIN OPERATION.
Installation Instructions
5/8"
Figure U
Hose Clamp
Coupler
Figure V

DRAIN LINE INSTALLATION

• Connect drain line to air gap, waste tee or disposer
using either previously determined method.
Method 1 – Air gap with waste tee or disposer
Waste Tee Installation
Method 2 – High drain loop with waste tee or disposer
Fasten to underside
of countertop
32"
Min.
18"
Min.
Waste Tee Installation
IMPORTANT
When connecting drain line to
disposer, check to be sure that drain
plug has been removed. DISH-
WASHER WILL NOT DRAIN IF PLUG IS LEFT IN PLACE.
TIP: Avoid unnecessary service call charges. Always
be sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
10
Disposer Installation
Figure W
Fasten to underside
of countertop
18"
Min.
Disposer Installation
Figure X
– Remove
Hopper
Plug
