Mains electricity
230 VAC/50 Hz, max 0.05 A
Standby power
0.4 W
External operating temperature
-25 to +35 °C
Dimensions
46x46x18 mm
Protection
Overtemperature software
Short circuit protection
DALI bus
Max 64 DALI loads
Guaranteed supply current 128 mA
Maximum supply current 150 mA
Max cable length 300 m (1.5 mm
)
2
Basic insulation
Radio
2.4 GHz mesh
Bluetooth®
<10 dBm
Radio range
Approx. 10 m indoors
The Plejd mesh technology extends the range by
allowing the units to communicate with each other
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorized electrician.
National laws and regulations
must be followed.
Plejd AB
Krokslätts Fabriker 27A
431 37 Mölndal, Sweden
Compliant to standards
Hereby, Plejd AB declares that the radio
equipment type DAL-01 is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
internet address: plejd.com/compliance
EN

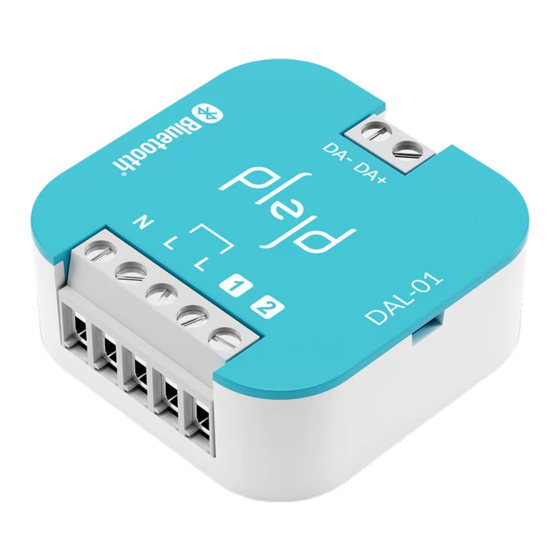

D A L- 0 1
INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com
Advertisement
Table of Contents
Related Manuals for Plejd DAL-01
Summary of Contents for Plejd DAL-01

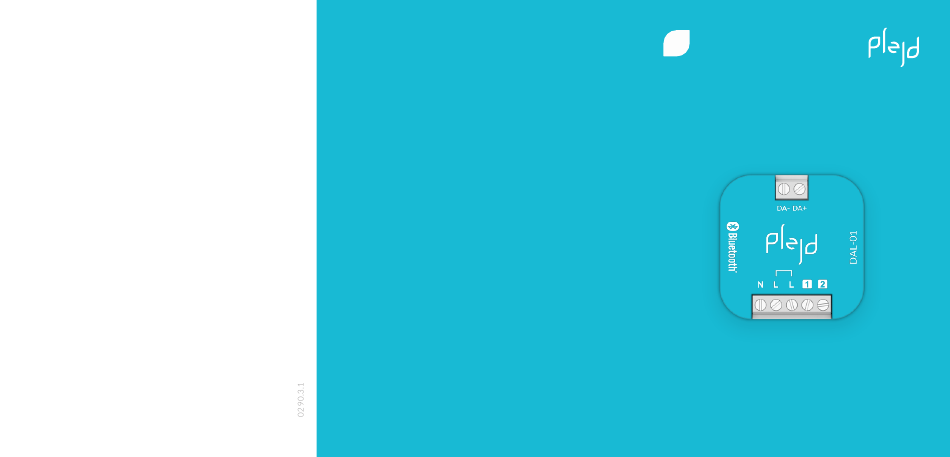

- Page 1 Plejd app or at plejd.com Radio range The full text of the EU declaration of Approx. 10 m indoors conformity is available at the following The Plejd mesh technology extends the range by internet address: plejd.com/compliance allowing the units to communicate with each other...
- Page 2 After supplying power to the unit by following Connect the product according to the wiring diagram. the wiring diagram, use the app to complete DAL-01 comes with a built-in power supply, so there is the installation. Setup requires Bluetooth ®...
