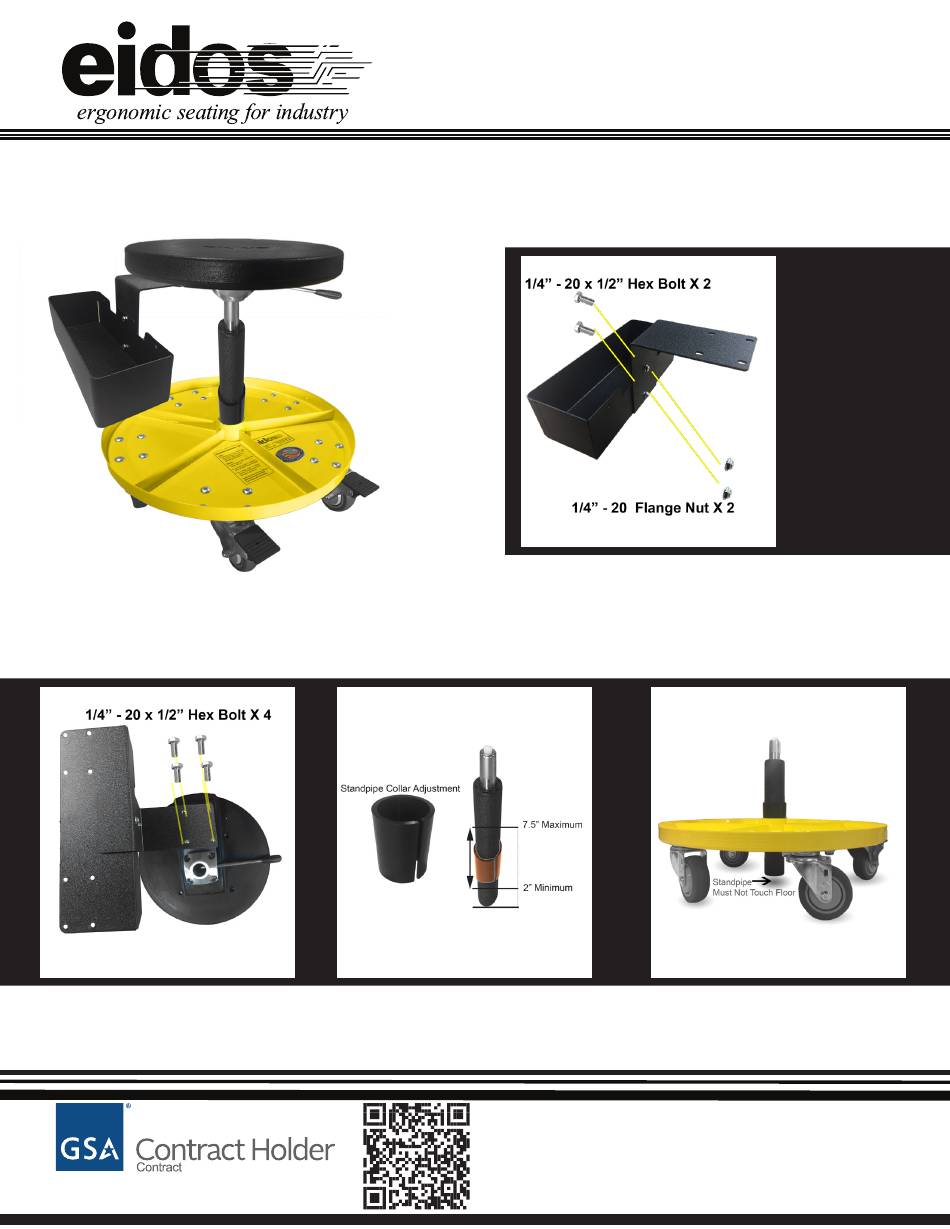

Assembly Instructions
Tools Needed: 1/4" wrench or socket
Please read all instructions before assembling
Step 2:
Attach Toolbox and
Side mount to seat. Align 4 hole pattern from
side mount to seat and tighten 1/4" bolts with
1/4" wrench or socket.
Warranty:
Eidos products are covered by a
limited warranty for a period of five years from
date of purchase.
GS-07F-0033U
www.eidosergonomics.com

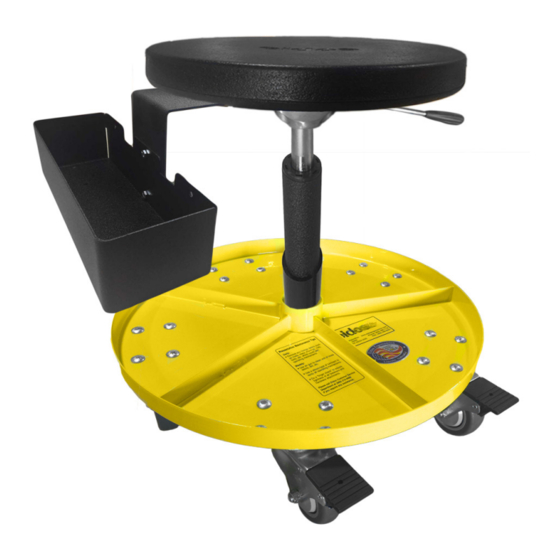

Model 106-T
ChairMaster with Toolbox
Step 1:
with the two 1/4" x .20 x 1/2" bolts and 1/4" nuts.
(They are shipped attached to the toolbox).
Tighten with 1/4" wrench or socket.
Step 3: The Model 106 standpipe collar placement will determine
the overall seat height. The higher the collar is placed on the standpipe, the lower
the seat height and vice versa. Note: 7.5" measured from the bottom of the standpipe
to the top lip of the collar Is the lowest position ensuring the
standpipe will not touch the ground.
Do not apply weight until the desired position has been configured.
*Online Product Registration :
http://www.eidosergonomics.com/product-registration.html
Eidos Corporation
4755 N. 48th Street, P.O. Box 29666, Lincoln,NE 68504
Telephone: 402-466-1119 FAX (402) 466-2023
E-mail: sales@eidosergonomics.com
Web : www.eidosergonomics.com
www.eidosergonomics.com
Attach toolbox to side mount bracket
Continued on back
