Eidos 106 Assembly Instructions

Assembly Instructions
No tools are needed for assembly.
Note: These instructions are also
used for the Contour and Wide profile seats,
Model 106 Option - A & B. Caster guards are pre-assembled.
Step 2: Place the standpipe and collar
into the pan by holding the top of the col-
lar (minimize vertical movement of collar)
apply pressure downward.

Warranty:

Eidos products are covered by a
limited warranty for a period of five years from
date of purchase.
GS-07F-0033U
www.eidosergonomics.com

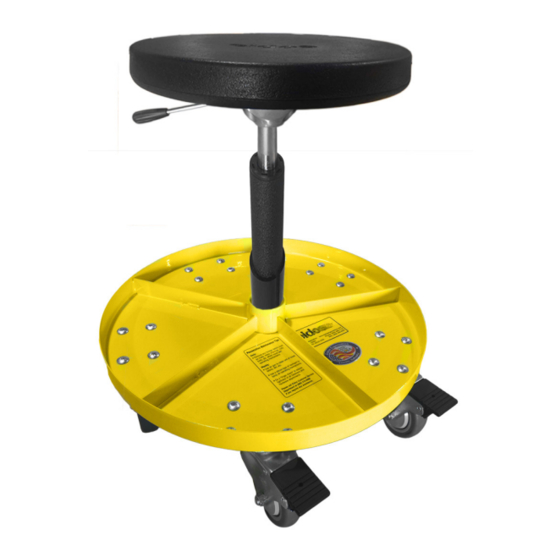

Model 106
ChairMaster

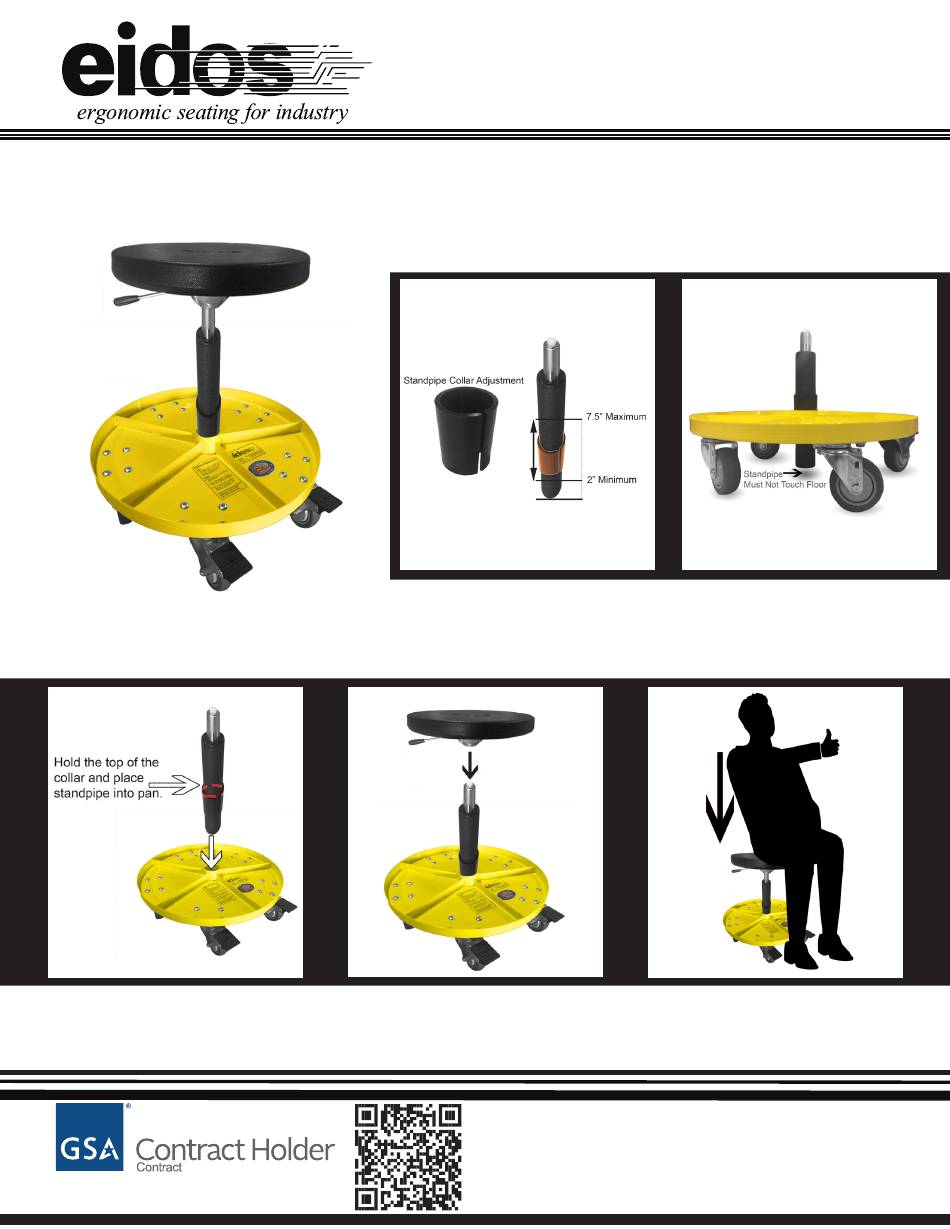

Step 1: The Model 106 standpipe collar placement will determine
the overall seat height. The higher the collar is placed on the standpipe, the lower
the seat height and vice versa. Note: 7.5" measured from the bottom of the standpipe
to the top lip of the collar Is the Maximum (lowest position) ensuring the
standpipe will not touch the ground.
Do Not apply weight until the desired position has been configured.
Step 3: Place the round, contour or
wide-profile seat onto the gas spring.
*Online Product Registration :
http://www.eidosergonomics.com/product-registration.html
Eidos Corporation
4755 N. 48th Street, P.O. Box 29666, Lincoln,NE 68504
Telephone: 402-466-1119 FAX (402) 466-2023
E-mail: sales@eidosergonomics.com
Web : www.eidosergonomics.com
NSN 4910-01-395-4251
www.eidosergonomics.com
Step 4: Apply weight and enjoy your
Eidos Ergonomics Model 106.
