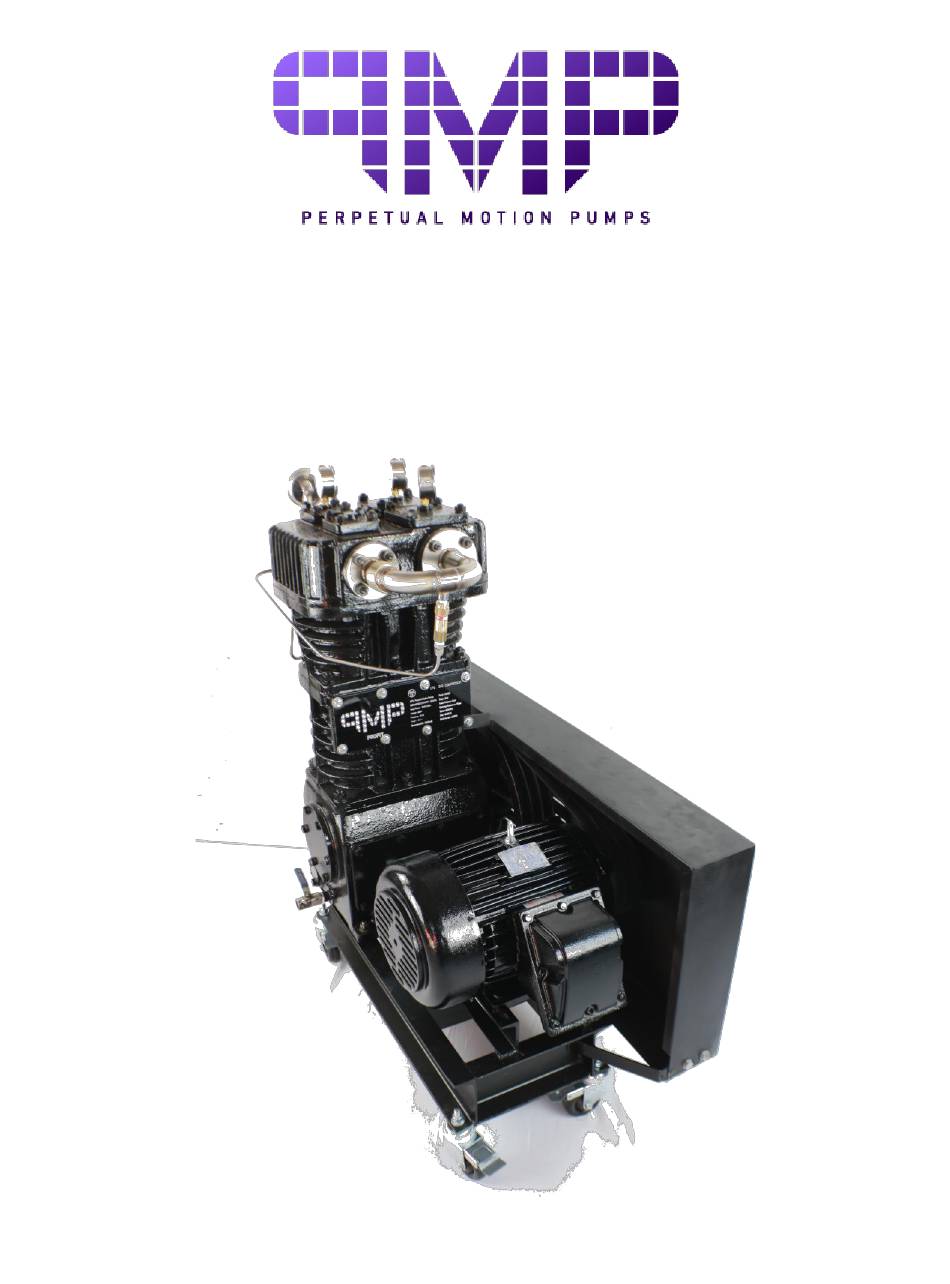

- Page 1 Operations Manual The Prophet (PMP-06) & The Prodigy (PMP-04) Please read/understand entire manual prior to use.
- Page 2 Safety Warning: Never modify the pump or any of the safety relief systems. Warning: Pump should never be operated above 150psi. Warning: It is strictly forbidden to let liquid enter the compressor; otherwise, it will cause serious damage to the compressor and possible safety issues. Pump creating knocking noises is an indication that it has sucked liquid into the system, discontinue use immediately.
- Page 3 Safety switch must be of code and approved for use where needed in C1D1 environments. (Available with installation package from PMP). Due to high capacity of the motor, these pumps are designed to be used with a contactor relay.
- Page 4 Plumbing PMP-04 “The Prodigy” The Prodigy pump has inlet and outlet on opposing sides of the pump. Inlet side is the 1.5” tri-clamp connection closet to the end of the pump (furthest from the motor). The outlet of the pump is on the opposite side (closest to the motor).
- Page 5 PMP-06 “The Prophet” The Prophet pump has inlets and outlets on the same side of the pump. While looking at the end of the pump with the open connections, the inlet is on the left, the outlet is on the right. The outlet will also be noted as the side which has the pressure relief valve mounted.
- Page 6 150psi the pump will not operate with any efficiency. In normal operation pump should not be continuously run above 100psi for a long period of time. Pressure Differential (PMP-04 The Prodigy Only) Because the Prodigy pump is only single stage compression, it should not be continuously run above 4x pressure differential for a period greater than 60 minutes or run above 8x pressure differential ever.
- Page 7 Failure to comply with pressure differential limitations will cause premature damage to the pump and motor. Completion When finished with the pumping process shut off the pump using the power switch. Close both valves (inlet/outlet) isolating the pump and if possible, release the pressure on the unit, discharging in a safe manner in accordance with all local governing regulations.
- Page 8 PMPumps features a dry seal cylinders which require no oil lubrication. Because of this there will be noticeable wear over time. If pumping becomes substantially less efficient (taking longer to run a process) it is most likely time for a rebuild. Additionally, if gasses are ever present seeping from the crank case vent a rebuild is necessary.
