Ramblegard RG43 User Instructions

Hide thumbs Also See for RG43:

Advertisement

Quick Links

Download this manual
Display Monitor
(RG43)
User Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the RG43 and is the answer not in the manual?

Questions and answers

Related Manuals for Ramblegard RG43

Summary of Contents for Ramblegard RG43

  • Page 1 Display Monitor (RG43) User Instructions...

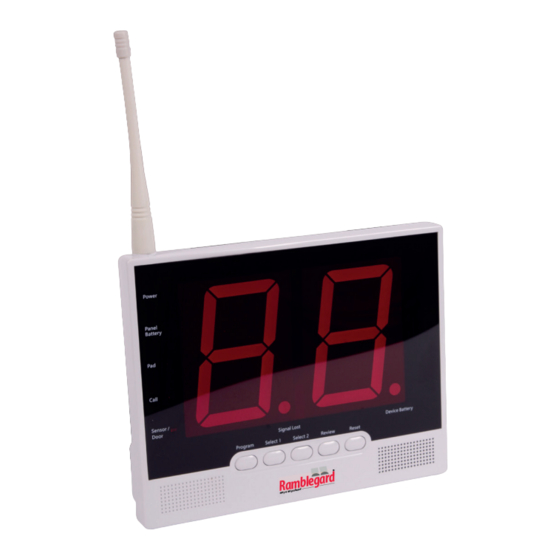

  • Page 3 The Ramblegard Central Monitor Display is an affordable falls management and nurse-call solution for Care Homes & Hospital wards. Caregivers can conveniently read a large LED display from a distance, and the panel can also forward signals to a Caregiver Alert Pager that will display call type and device ID.
  • Page 4 1. Set-Up 1.1 Open battery case and insert 6 x AA alkaline batteries or remove the pull tab. Batteries are intended as a back up only, in case of power loss and will give approximately 4-8 hours of operation. The product must be connected to a power supply for normal operation.
  • Page 5 2. Programming 2.1 Panel Setting To access the panel settings menu, press and hold the PROGRAM + SELECT1 buttons for ~5s. The display will beep once. Use the SELECT1 button to cycle between the settings, and SELECT2 to change. Call Forward: To configure the call-forward feature, tap SELECT1 until the tens digits displays “t”.
  • Page 6 2. Programming (cont.) Alarm Tone: To change this setting, tap SELECT1 until the tens digit displays “b”. Use SELECT2 to choose between b1 (ascending harmonic scale) or b2 (standard beep). Delay Setting: At times, a caregiver may not require an immediate alarm when a patient exits the bed (e.g.

  • Page 7: Auto Programming

    Example 1. If an RG2 monitor with a bed and chair sensor programmed in and are set to t=2, then is uploaded with new display [34], the RG43 panel will first show [d2] to indicate that two devices are paired into this display, followed by [34] to confirm what will now display when a device is triggered.

  • Page 8: Operation

    Any devices that were previously programmed into these display slots on the RG43 panel will be overwritten. If these devices were previously programmed into a different displays slot on the RG43 panel, they will be automatically deleted. 3. Operation The RG43 panel will only accept alarm signals from devices that have been entered into memory.
  • Page 9 Cordless Monitors: Cordless RG2 monitors can now be used as a “kit” together with a RG43 panel. The monitor will act as pause/reset for any devices paired with it, and can be conveniently moved around a ward when a caregiver needs the monitor for a different patient.

  • Page 10: Troubleshooting

    = 3. If this does not solve the issue, check that the pager is configured to turn Direct Signalling OFF. • Check that the area code and paging code settings on the RG43 panel match what you have selected on your pager.
  • Page 12 T: 028 9448 3971 www.ramblegard.com S&E CareTrade t/a Ramblegard Elmfield House Rathenraw Industrial Estate Greystone Road Antrim BT41 2SJ...
