AFRISO ARV ProClick 13 381 10 Instruction Manual

INSTRUCTION MANUAL
AFRISO Sp. z o.o. Customer service
Szałsza ul. Kościelna 7 Tel. +48 330 33 55
42-677 Czekanów Fax: +48 330 33 51
Poland zok@afriso.pl
www.afriso.pl

NOTICE!

This instruction manual is also available on www.afriso.pl.

WARNING!

The product may only be mounted, commissioned and disposed of by qualified, specially trained
staff.
Alterations performed by unauthorized staff may cause a threat and are forbidden for safety
reasons.

APPLICATION

3-way rotary valves are mainly used as mixing valves, where the desired temperature is achieved by mixing the hot
water from the boiler and the cold water from the system return, in appropriate proportions. 3-way valves can also
be used as switching or separating valves, when changing the flow direction between two outlets (e.g. central he-
ating and domestic hot water preparation) is required. The 3-way ARV ProClick valves can be utilized in cooling and
d.h.w. systems.

DESCRIPTION

3-way rotary mixing valves ARV ProClick with inner threads are made out of brass. The connections have octagonal sha-
pe. The valves have knobs for manual operation and rotation angle limiters. The scale on top of the knob is printed with
"from 0 to 10" on one side and on the other "from 10 to 0", so one can mount the valve in various positions. The thicker
knob part shows the sleeve position inside the valve. The knob itself is made from a non-slip material. The durable
plastic parts under the knob are used to mount the ARM ProClick actuator on the valve. The ProClick system does not
require any tools. ARV ProClick valves require low torque.

TECHNICAL DATA

Parameter / piece
Working temperature
Working pressure
Differential pressure
Body
Sealing
Leak rate (Δp=100 kPa)
Rotation angle
Required torque
Glycol concentration

APPROVALS AND CERTIFICATES

The rotary mixing valves ARV ProClick comply with the Pressure Directive PED 2014/68/EU and according to artic-
le 4.3 (sound engineering practice) must not wear the CE mark.
953.001.0063 1
3-way rotary mixing valves
ARV ProClick
Art.-No 13 381 10, 13 388 10, 13 382 10,
13 384 10, 13 385 10, 13 386 10,
13 387 10
Value / description
5-110˚C
max 10 bar
max 1 bar
brass CW617N
EPDM
max 0,2% for DN15-DN32
max 0,5% for DN40-DN50
90˚
max 0,5 Nm for DN15-DN25, max 2 Nm for DN32,
max 3 Nm for DN40-DN50
max 50%

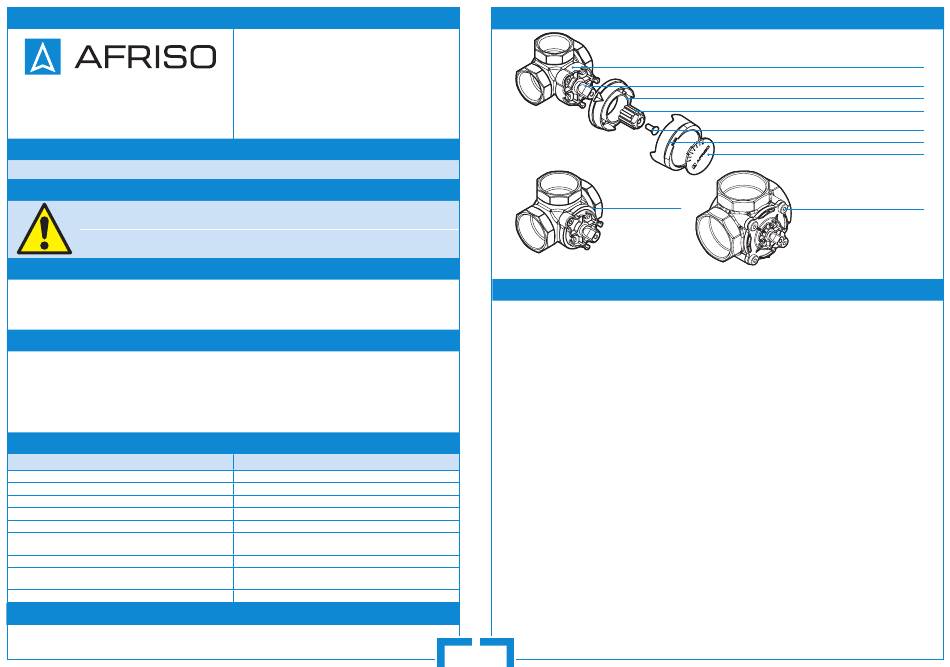

Drawing 1. Construction
DN15 ÷ DN25
valve body DN32
DN32

MOUNTING

Notice! The flattening on the spindle of the valve and on the adapter mounted on it
tion of the sleeve inside the valve (Drawing
The ARV ProClick valve is delivered with mounted knob, blue ring and scale. Not to damage the plastic elements,
we suggest to disassemble the scale, knob and blue limiting ring before mounting the valve. These parts are moun-
ted on latch. When having trouble with dismounting the knob, one can gently pry it up with a flat screwdriver.
Next mount the valve in the system. When the valve is in place, set it and assemble the plastic components,
as follows:
1. Determine the working range of the sleeve inside and the closing direction
the hot and cold water inlets after the valve is mounted. The sleeve should rotate by 90˚ between these two
inlets. Next set the sleeve exactly in the middle between the hot and cold water inlet
the direction of closing (closing the hot water inlet) and opening (opening the hot water inlet) of the valve.
2. Choose the right side of the scale. A double-sided scale is delivered with the ProClick valves. It is printed "from
0 to 10" on one side and "from 10 to 0" on the other. Apply the scale to the vale and choose the side on which
"0" will coincide with the cold water inlet and simultaneously "10" will coincide with the hot water inlet,
as shown on Drawing 2.
You can follow also another simple rule:
- if the valve is closed turned right (clockwise) choose the scale "from 0 to 10",
- if the valve is closed turned left (counter-clockwise) choose the scale "from 10 to 0".
3. Put on and latch the blue limiting ring on the valve, which was set according to point 1. The indicator should
point directly on the middle of the sleeve inside the valve
spindle and adapter. The indicator should find itself between the hot and cold inlets.
4. Lock the knob on the adapter. It fits only in one position
5. Put the lid with the chosen scale
inside the knob and then press the lid down.
6. Check if the valve works properly.
1 2
valve body DN15-DN25 with plastic part for ProClick actuator
adapter with f attening, for ARM ProClick actuators
knob with a thicker part showing the valve sleeve position
DN40 ÷ DN50
(Drawing
2).
(Drawing
(Drawing 3a or 3b), as well as the flattening on the
(Drawing 4).
(Drawing 5) on the knob. To lock the lid first put the smaller inset in the hole
f attening on the valve spindle
limiting ring with indicator
adapter f xing screw
double-sided scale
valve body DN40-50
1) indicates the posi-
2). First determine
(Drawing 2). Learn also
