Dali DT8 Quick Start Manual

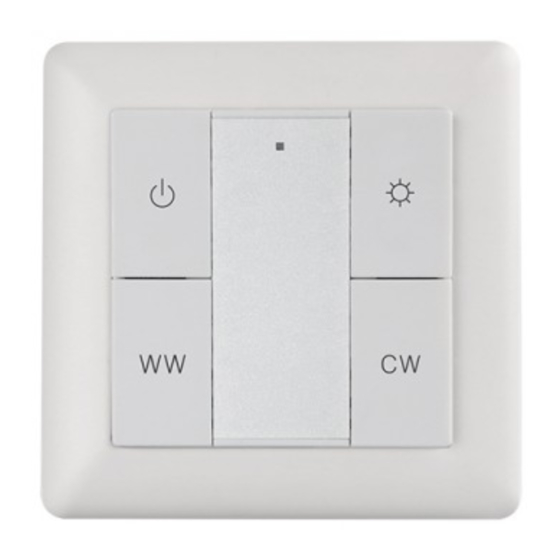

Push Button Tunable White DALI DT8 Controller
Important: Read All Instructions Prior to Installation
Function introduction
Click to switch on/off group.
Click to get 100% WW and 0%
CW. Press and hold down to
increase WW and decrease CW
9mm 17.6mm
09.2402K4CG.04756
Press and hold down to turn
up/down brightness of group.
Click to get 100% CW and 0%
WW
CW
WW. Press and hold down to
increase CW and decrease WW
Front side
80 mm
59.3 mm
Rotary Switch for Assigning
Group (Total 16 Groups)
DALI INPUT
DA DA
DALI signal output
Back side
Product Data
Output
DALI signal
Power Supply Supply By DALI Bus
Operation Current
30mA
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimensions
80x80x26.6mm

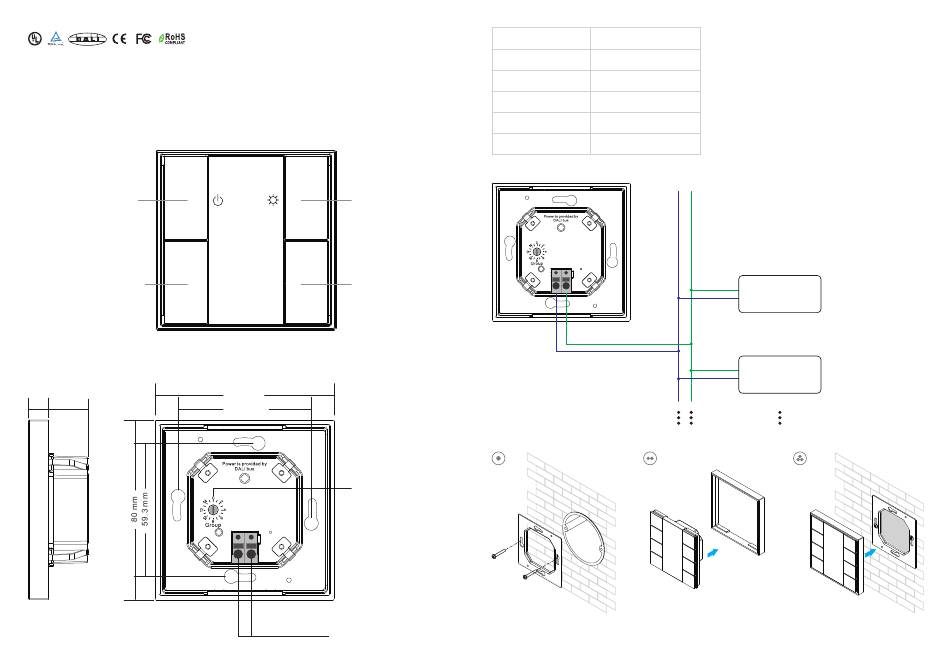

Wiring Diagram
DALI BUS
DALI INPUT
DA DA
DALI signal
Installation
Safety & Warnings
• DO NOT installed with power applied to device.
• DO NOT expose the device to moisture.
• Push button DALI DT8 CCT controller, color type Tc
• Ultra slim and luxury design
• Material and finishing color can be customized
• With back lighting design, easy to find even in dark night
• DALI bus powered, no extra power supply required
• Each channel DALI bus can install multiple controllers
• Enables to select and control 1 DALI group from total 16
DALI groups
• Easy installation with mounting bracket
• Waterproof grade: IP20
DA DA
DA
DALI DT8
DA
Tunable White Device
DA
DALI DT8
DA
Tunable White Device
