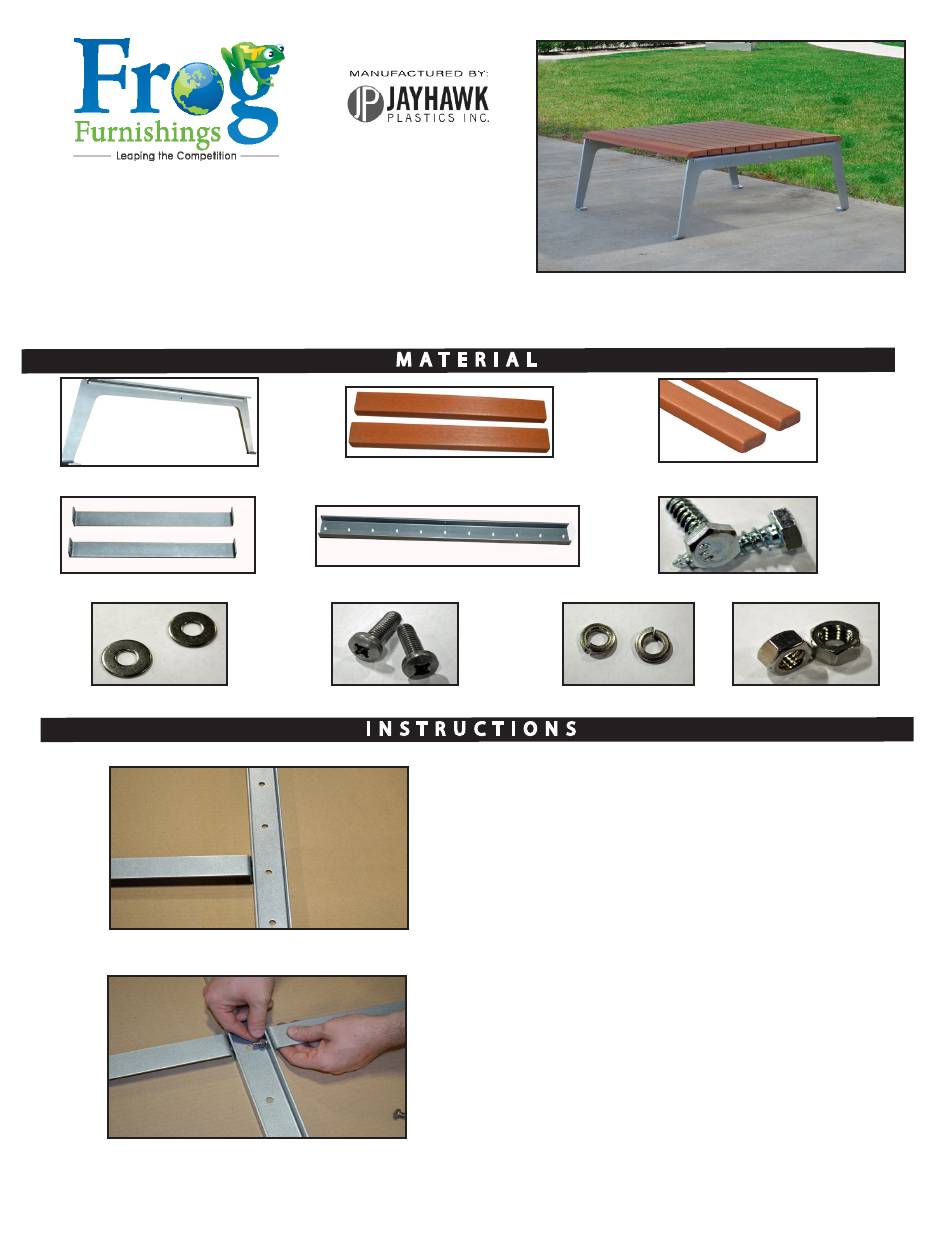

Assembly Instructions
Plaza Collection Table/Bench
TOOLS REQUIRED: POWERED DRIVER & 1/2" SOCKET
PHILLIPS HEAD BIT
1/2" WRENCH
(2) STEEL TABLE ENDS
(2) STEEL SUPPORT CHANNEL STRAPS
(34) 5/16" SS FLAT WASHERS
Picture A
01/2017
klklkl
(9) 2" x 4" x 41" PLASTIC SLATS
(1) STEEL SUPPORT CHANNEL
(4) 5/16-18 x 1" SS PHILLIPS HEAD BOLTS
Picture B
(2) 2" x 6" x 41" ROUND NOSE PLASTIC SLATS
(34) 5/16" SS HEX LAG SCREWS
(4) 5/16" SS LOCK WASHERS

PLEASE NOTE BEFORE ASSEMBLY

-Check materials list to verify all items have been
shipped. Extra hardware may be included
-Assembly will require two people.
-Assemble the table on a flat and level surface.
Step 1. Lay the steel support channel face down
and place one steel support strap perpendicular
to and in the center of the support channel. The
flat side of the straps will be facing up. See Picture
'A' . Ensure the center attachment holes line up
with each piece. Loosely attach each strap to the
support channel with 5/16-18 Phillips head bolts,
lock washers and hex nuts as shown in Picture 'B.
Finger tighten only.
