Sony FA-HS1AM Service Manual

SERVICE MANUAL
Ver. 1.0 2008.10
SPECIFICATIONS
Voltage 60 V or less
Compatible with center-positive
and center negative polarities
Battery Button type 3V lithium battery
(CR1220)
Battery life Approx. 10,000 continuous releases
Dimensions Approx. 35.5 x 24.4 x 54.8 mm
(w / h / d)
(1 7/16 x 31/32 x 2 1/4 inches)
(excluding the projecting parts)
Mass Approx. 30 g (1.1 oz)
(battery not included)
0 °C to 40 °C (32 °F to 104 °F)
Operating temperature
- 20 °C to +60 °C
Storage temperature
(-4 °F to +140 °F)
Included items Hot shoe adaptor
FA-HS1AM (1) .
(A button type 3V lithium battery
(CR1220) installed)
Set of printed documentation
Design and specifications are subject to change without notice.
is a trademark of Sony Corporation.
FA-HS1AM
9-852-628-11
FA-HS1AM
1
PARTS LIST
Ref. No. Part No.
1 A-1566-597-A HOT SHOE ADAPTOR ASSY (AEP)
1 A-1566-601-A HOT SHOE ADAPTOR ASSY (US, CND, CH)
• Abbreviation
CND : Canadian model
CH : Chinese model
Sony EMCS Co.
US Model
Canadian Model
AEP Model
Chinese Model
Description

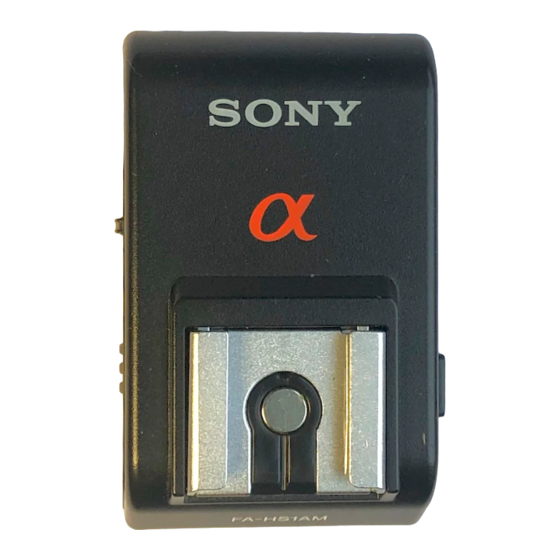

HOT SHOE ADAPTOR
Published by Kohda TEC
2008J0200-1
© 2008.10
