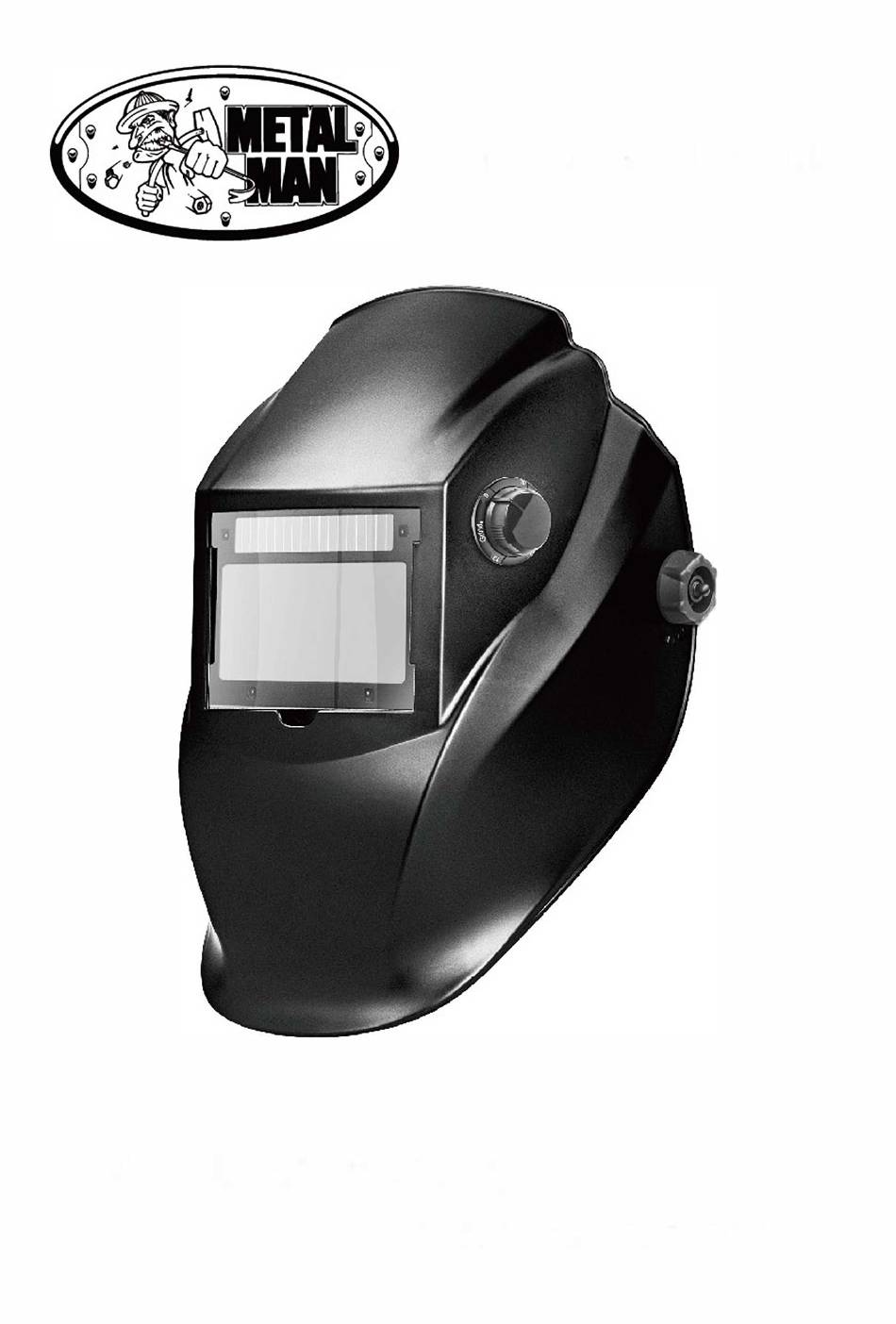

- Page 1 8735SGC SERIES WITH OPTICLEAR Auto Darkening Welding Helmet...
- Page 2 Professional Quality Welding Helmet SAFETY WARNINGS - READ BEFORE USING WARNING 氹 氹 Read & Understand All Instructions Before Using Auto-Darkening welding helmets are designed to protect the eye and face from sparks, spatter and harmful radiation under normal welding conditions. Auto-Darkening filter automatically changes from a light state to a dark state when an arc is struck and it returns to the light state when welding stops.
- Page 3 COMMON PROBLEMS AND REMEDIES • Irregular Darkening Dimming Headband has been set unevenly and there is an uneven distance from the eyes to the filter lens (Reset the headband to reduce the difference to the filter). • Auto-Darkening filter does not darken or flickers Front cover lens is soiled or damaged (Change the cover lens).
- Page 4 the "Shade Guide Table" below for settings. Turn the shade control knob on the side of the helmet to the shade number required. • SENSITIVITY The sensitivity can be set to "HI" (high) or "LO" (low) by using the infinitely dial knob on the back of the shade cartridge. The "Mid-High"...
- Page 5 wearing it. If the headgear moves while tilting, re-adjust it until it is stable • ADJUSTING THE DISTANCE BETWEEN THE HELMET AND THE FACE Step 1: Undo the block nut (See "T" in fig.5) to adjust the distance between the helmet and your face in the down position.
- Page 6 • CHANGING THE SHADE CARTRIDGE (See figs.Sa & 8b). • INSTALLING NEW CARTRIDGE. Take the new shade cartridge and pass the potentiometer cable under the wire loop before dropping the cartridge into its retaining frame inside the helmet. Press down the wire loop clip and ensure that the front edge of the loop is properly retained under the retaining lugs as shown in fig.Sb.
- Page 7 PARTS UST&ASSEMBLY Reference Number Description Part No. Lens kits MLK85 (5 Front Cover Lenses) MLK7351 (5 Inside Cover Lenses) Replacement lens MRL7 35L MSC735L Shade control knob MSB8L Sweatband MHG8L Headgear CR2450R Battery MBC735L Battery cover...
- Page 8 METAL MAN WORK GEAR COMPANY 1760 PROSPECT CT #120 APPLETON WI 54914 metalmangear.com Toll Free 888-762-4045 MADE IN CHINA...
