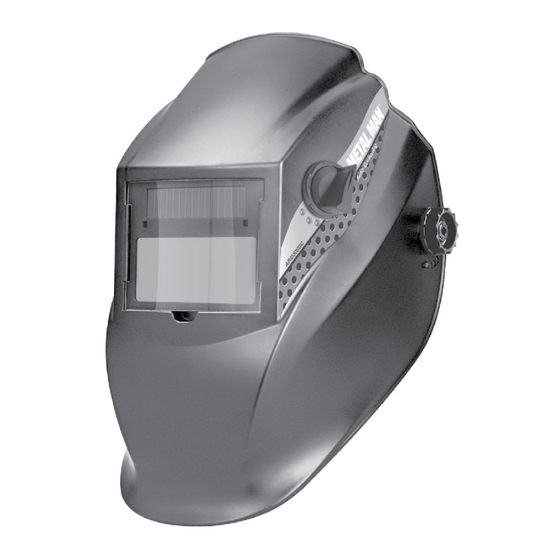

- Page 1 AB8550SGC Auto Darkening Welding Helmet...
- Page 3 SAFETY WARNINGS - READ BEFORE USING WARNING Read & Understand All Instructions Before Using Auto-Darkening welding helmets are designed to protect the eye and face from sparks, spatter and harmful radiation under normal welding conditions. Auto-Darkening filter automatically changes from a light state to a dark state when an arc is struck and it returns to the light state when welding stops.
- Page 4 WARNING Severe personal injury could occur if the user fails to follow the above mentioned warnings and/or fails to follow the operating instructions. COMMON PROBLEMS AND REMEDIES • Irregular Darkening Dimming Headband has been set unevenly and there is an uneven distance from the eyes to the filter lens (Reset the headband to reduce the difference to the filter).
- Page 5 • Test the fit of the headband by lifting up and closing down the helmet a few times while wearing it. If the headband moves while tilting, re-adjust it until it is stable. • ADJUSTING THE DISTANCE BETWEEN THE HELMET AND THE FACE ‘W’...
- Page 6 helmet. Press down the wire loop clip and ensure that the front edge of the loop is properly retained under the retaining lugs as shown in fig.5b. • Fasten the potentiometer to the inside of the helmet with the shaft protruding through the hole.
- Page 7 PARTS LIST & ASSEMBLY Reference Number Description Part No. Lens kit (5 front Lens Covers) MLK85 (5 inside Lens Covers) MLP65I Replacement lens MRL550 Retaining wire MRW8 Sweat band MSB8 Headgear MHG8 Shade control knob MSC86 SHADE GUIDE TABLE (NO.1) ARC CURRENT（Amperes) Welding Process SMAW...
- Page 8 METAL MAN WORK GEAR COMPANY 1760 PROSPECT CT #113 APPLETON WI 54914 metalmangear.com Toll Free 888-762-4045 MADE IN CHINA...
