Getting started with Raspberry Pi Pico

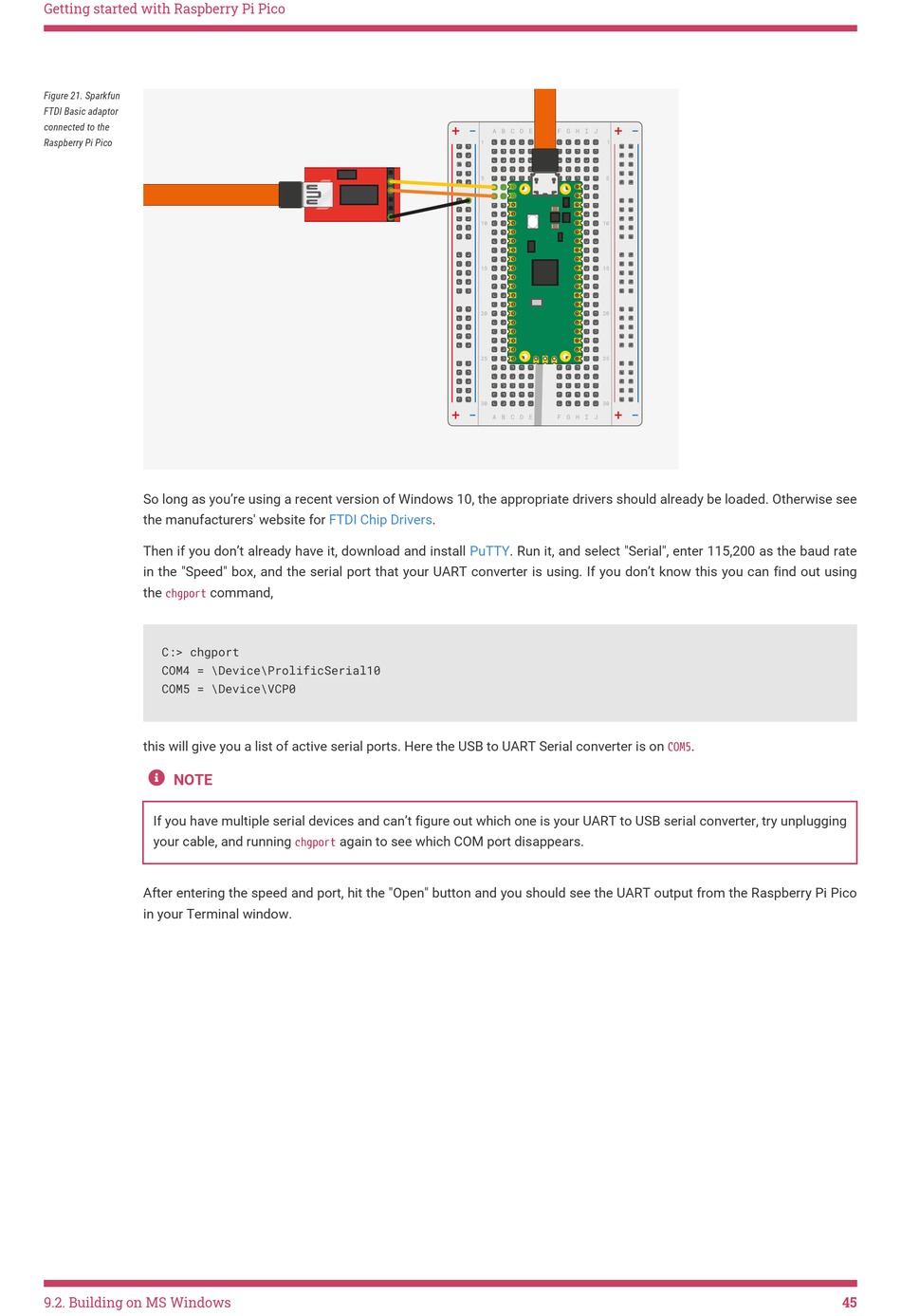

Figure 21. Sparkfun
FTDI Basic adaptor
connected to the
Raspberry Pi Pico
So long as you're using a recent version of Windows 10, the appropriate drivers should already be loaded. Otherwise see
the manufacturers' website for
Then if you don't already have it, download and install PuTTY. Run it, and select "Serial", enter 115,200 as the baud rate
in the "Speed" box, and the serial port that your UART converter is using. If you don't know this you can find out using
the
command,
chgport
C:> chgport
COM4 = \Device\ProlificSerial10
COM5 = \Device\VCP0
this will give you a list of active serial ports. Here the USB to UART Serial converter is on
NOTE
If you have multiple serial devices and can't figure out which one is your UART to USB serial converter, try unplugging
your cable, and running
After entering the speed and port, hit the "Open" button and you should see the UART output from the Raspberry Pi Pico
in your Terminal window.
9.2. Building on MS Windows
FTDI Chip
Drivers.
again to see which COM port disappears.
chgport
.
COM5
45
