- Page 1 Handy Pak/Rescue Pak Operating Manual Draeger Safety, Inc. 101 Technology Drive P.O. Box 120 Pittsburgh, PA 15230-0120 Telephone: (412) 787-8383 Customer Service Telephone: 800-922-5518 Customer Service FAX: 800-922-5519 http://www.draeger-usa.com...
-
Page 2: Table Of Contents
Specifications ....................2 Operation ........................3 Set-up ....................... 3 Use ........................3 End of Use ...................... 3 Maintenance ....................... 4 High Pressure Airline ................... 4 Spare Parts and Accessories .................. 4 Handy Pak ....................... 4 Rescue Pak ....................5 Handy Pak/Rescue Pak... -
Page 3: General
1 General Description The Handy Pak/Rescue Pak is a portable air supply unit. It is designed to deliver bottled breathing air to airline respirators. The Handy Pak/Rescue Pak utilizes SCBA cylinders which can provide up to two hours of breathing air. Directly attach the respirators with up to 300 feet of air supply hose, to each of the four standard quick disconnects. -
Page 4: Operation

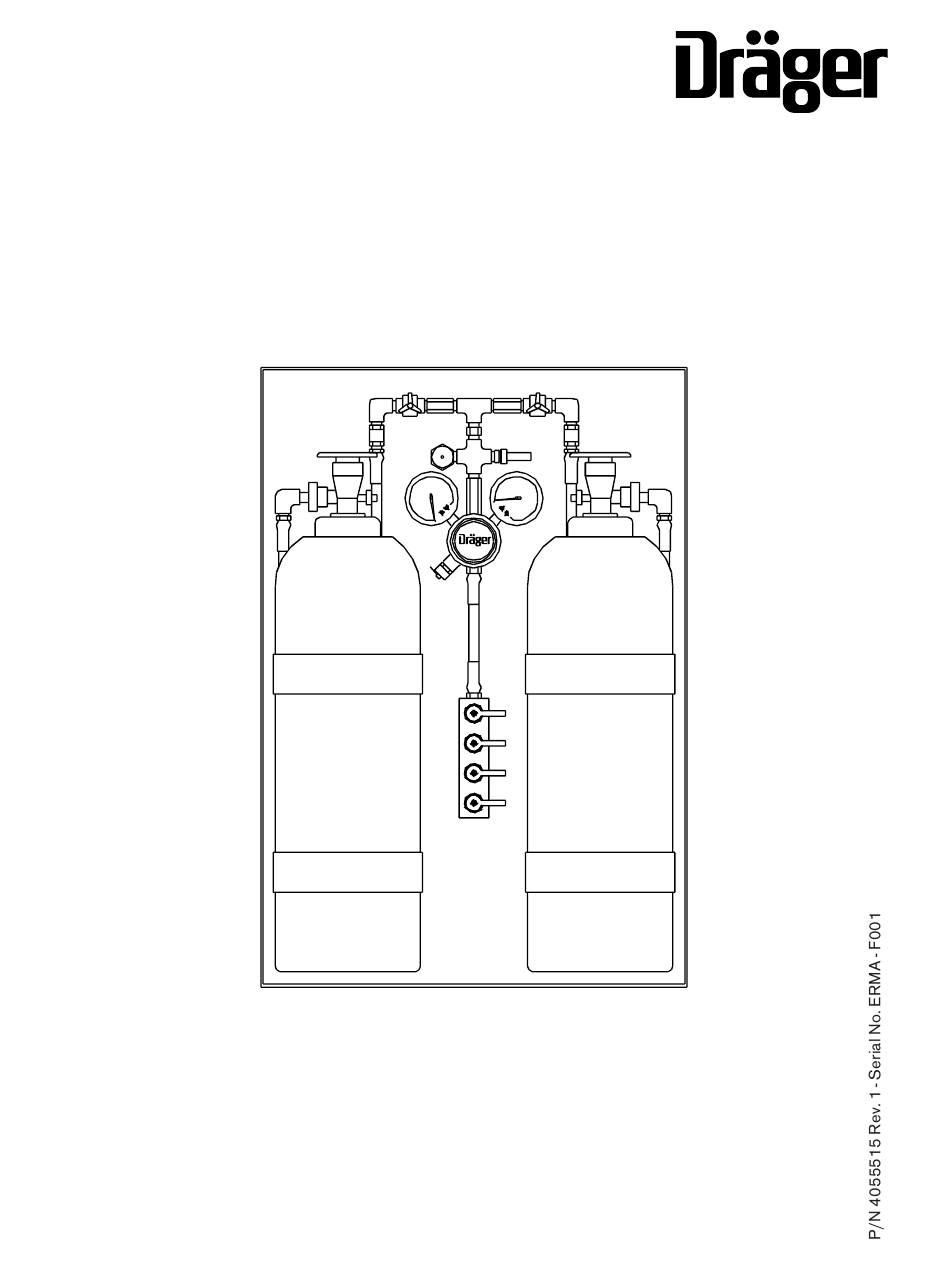

Set-up (Refer to Figure 1) • Install cylinders on Handy Pak and ensure cylinder straps are tight. Low pressure (2216 PSI) and high pressure (4500 PSI) cylinders can be used. • Install CGA-347 connections to cylinder valves and tighten with hand-tight wheels. -
Page 5: Maintenance
Relief Valve, 125 PSI 4055368 Outlet Pressure Gauge, 0-200 PSI 4055465 Low Pressure Warning Whistle 4055332 Respirator Fitting, Quick Disconnect, Hansen, 3/8" MPT 4055335 ----- O-ring Replacement 4055333 ----- Whip Assembly, Handy Pak, 17" w/o BLV 4055517 Handy Pak/Rescue Pak... -
Page 6: Rescue Pak
Respirator Fitting, Quick Disconnect, Hansen, 3/8" MPT 4055335 Relief Valve, 125 PSI 4055368 Outlet Pressure Gauge, 0-200 PSI 4055465 ----- Pak Cover Aluminum (optional) 4055257 ----- O-ring Replacement 4055333 ----- Whip Assembly, Rescue Pak, 28" w/BLV 4055518 Handy Pak/Rescue Pak... - Page 7 K-Kart II Operating Manual Draeger Safety, Inc. 101 Technology Drive P.O. Box 120 Pittsburgh, PA 15230-0120 Telephone: (412) 787-8383 Customer Service Telephone: 800-922-5518 Customer Service FAX: 800-922-5519 http://www.draeger.net...
- Page 8 Draeger Safety, Inc. Table of Contents General ........................2 1.1 Description ....................... 2 1.2 Specifications ....................2 Operation ........................3 2.1 Set-up Procedure .................... 3 2.2 Use ........................3 2.2.1 Low Pressure Alarm ............... 3 2.2.2 Changing a Cylinder While in Use ..........3 2.3 End of Use ......................
-
Page 9: General
Draeger Safety, Inc. 1 General Description The K-Kart II is designed to provide bottled breathing air to airline respirators. Respirator attachments can be made directly to the cart manifold or air can be attached up to 300 feet away via the optional low pressure manual hose reel. The K-Kart II has been uniquely designed for ease of mobility and reduction of stress from lifting for workers using the system. -
Page 10: Operation
Draeger Safety, Inc. 2 Operation Set-up Procedure • Remove clevis pin near the 16" wheels. Push the handles up and forward to situate the cart in an upright position. Reinstall the clevis pin. • Install, arrange and index the air cylinders so that the valve outlets are facing away from the control panel. -
Page 11: End Of Use
Draeger Safety, Inc. End of Use WARNING Make sure that the cylinder brackets are securely tightened to the air cylinders before moving or lifting the cart. Two eyelets are provided for sling lifting of the entire cart when necessary. 2.3.1 Shutdown Make sure all personnel have egressed the hazardous area and have disconnected from the breathing air system. -
Page 12: High Pressure Airline General Maintenance & Inspection
Draeger Safety, Inc. 3 High Pressure Airline General Maintenance & Inspection Monthly • Check regulators, gauges, and valves for external leakage. • Inspect cylinder valves for proper closure. • Check cylinder pigtails for cleanliness, flexibility, wear, leakage, blisters on hose, thread damage, and O-rings on CGA fittings. Replace damaged items immediately. -
Page 13: Spare Parts And Accessories
Draeger Safety, Inc. 5 Spare Parts and Accessories Item Description Part Number Quick Disconnect, Hansen 4055335 (not shown) O-ring 4055333 (not shown) Whip Assembly 4055334 Whistle 4055332 K-Kart II...
