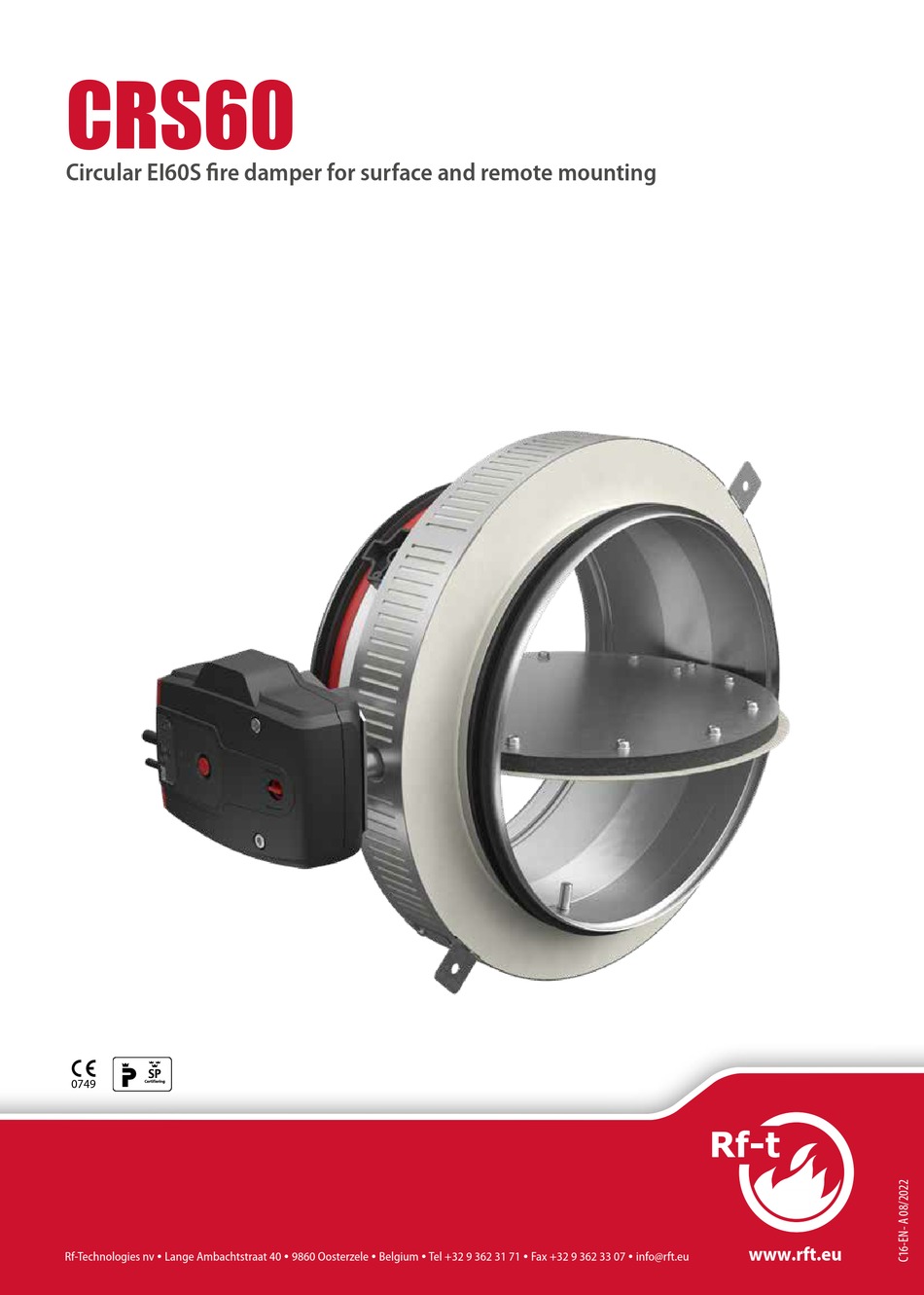

- Page 1 CRS60 Circular EI60S fire damper for surface and remote mounting 0749 www.rft.eu Rf-Technologies nv Lange Ambachtstraat 40 9860 Oosterzele Belgium Tel +32 9 362 31 71 Fax +32 9 362 33 07 info@rft.eu...
-
Page 2: Table Of Contents
Table of content Table of content Declaration of performance Product presentation CRS60 Range and dimensions CRS60 Evolution - kits Storage and handling Installation Installation in a rigid wall - sealing with acrylic sealant Installation in a rigid wall - sealing with stone wool... -
Page 3: Declaration Of Performance
Declaration of performance Harmonised standard EN 15650:2010... -
Page 4: Product Presentation Crs60
5. sealing ring for damper blade 6. collar 7. intumescent strip Range and dimensions CRS60 ØDn [mm] 100 125 160 200 250 315 400 500 630 Exceeding blade: X = on the mechanism side, Y = on the wall side ØDn... -
Page 5: Evolution - Kits
Evolution - kits Evolution - kits Spring return actuator ONE 24V (with fusible link T) + unipolar beginning- and end-of- KITS ONE T 24 FDCU L range switch Spring return actuator ONE 230V (with fusible link T) + unipolar beginning- and end- KITS ONE T 230 FDCU L of-range switch KITS BFLT24... -
Page 6: Storage And Handling
Storage and handling Storage and handling As this product is a safety element, it should be stored and handled with care. Avoid: • any kind of impact or damage • contact with water • deformation of the casing It is recommended: •... -
Page 7: Installation
Installation Installation in a rigid wall - sealing with acrylic sealant Fire resistant acrylic sealant ≤ Dn+10 mm ≥100 Fire resistant acrylic sealant... -
Page 8: Installation In A Rigid Wall - Sealing With Stone Wool
Installation Installation in a rigid wall - sealing with stone wool Fire resistant acrylic sealant ≤ Dn+50 mm ≥100 Stonewool stuffed Fire resistant acrylic sealant... - Page 9 Installation Installation in flexible wall (metal stud gypsum plasterboard wall) - sealing with acrylic sealant ≤ Dn+10 mm A (EN520) F (EN520) 2x12.5 / 1x25 mm 100 mm Fire resistant acrylic sealant Fire resistant acrylic sealant...
- Page 10 Installation Installation in flexible wall (metal stud gypsum plasterboard wall) - sealing with stone wool ≤ Dn+50 mm A (EN520) F (EN520) 2x12.5 / 1x25 mm 100 mm Fire resistant acrylic sealant Stonewool stuffed Fire resistant acrylic sealant...
-
Page 11: Installation In Shaft Wall
Installation Installation in shaft wall ≤ Dn+10 mm F (EN520) 2x15 / 1x30 mm 80 mm Fire resistant acrylic sealant... -
Page 12: Installation In Rigid Floor - Sealing With Acrylic Sealant
Installation Installation in rigid floor - sealing with acrylic sealant ≤ Dn+10 mm ≥100 Fire resistant acrylic sealant Fire resistant acrylic sealant... -
Page 13: Installation In Rigid Floor - Sealing With Stone Wool
Installation Installation in rigid floor - sealing with stone wool ≤ Dn+50 mm ≥100 Fire resistant acrylic sealant Stonewool stuffed Fire resistant acrylic sealant... -
Page 14: Installation Remote From A Rigid Wall - Sealing With Acrylic Sealant
Installation Installation remote from a rigid wall - sealing with acrylic sealant ≤ Dn+10 mm ≥100 2. Provide suspension where necessary in accordance with the instructions of the duct manufacturer. Silicate based adhesive 3. Attention: Make sure that the movement of the damper 4. -
Page 15: Installation Remote From A Rigid Wall - Sealing With Stone Wool
Installation Installation remote from a rigid wall - sealing with stone wool ≤ Dn+50 mm ≥100 2. Provide suspension where necessary in accordance with the instructions of the duct manufacturer. Silicate based adhesive 3. Attention: Make sure that the movement of the damper 4. -
Page 16: Installation Remote From A Flexible Wall - Sealing With Acrylic Sealant
Installation Installation remote from a flexible wall - sealing with acrylic sealant ≤ Dn+10 mm A (EN520) F (EN520) 2x12.5 / 1x25 mm 100 mm 3. Provide suspension where necessary in accordance with the 4. Attention: Make sure that the movement of the damper †... -
Page 17: Installation Remote From A Flexible Wall - Sealing With Stone Wool
Installation Installation remote from a flexible wall - sealing with stone wool ≤ Dn+50 mm A (EN520) F (EN520) 2x12.5 / 1x25 mm 100 mm 3. Provide suspension where necessary in accordance with the 4. Attention: Make sure that the movement of the damper †... -
Page 18: Installation Remote From The Shaft Wall
Installation Installation remote from the shaft wall ≤ Dn+10 mm F (EN520) 2x15 / 1x30 mm 80 mm Fire resistant acrylic sealant 3. Provide suspension where necessary in accordance with the 4. Attention: Make sure that the movement of the damper †... -
Page 19: Installation Remote From A Floor - Sealing With Acrylic Sealant
Installation Installation remote from a floor - sealing with acrylic sealant ≤ Dn+10 mm ≥100 4. Attention: Make sure that the movement of the damper † blade is not impeded by the screws. Silicate based adhesive Fire resistant acrylic sealant Silicate based adhesive 5. -
Page 20: Installation Remote From A Floor - Sealing With Stone Wool
Installation Installation remote from a floor - sealing with stone wool ≤ Dn+50 mm ≥100 4. Attention: Make sure that the movement of the damper † blade is not impeded by the screws. Silicate based adhesive Stonewool stuffed Fire resistant Silicate acrylic sealant based adhesive... - Page 21 ∎ Follow local maintenance regulations (i.e. BS9999 Annex V; NF S 61-933) and EN13306. ∎ Read the maintenance instructions on our website: https://www.rft.eu/assets//PIM/DOCUMENTS/BROCHURE%20KITS/BRO_K139_MAINTENANCE_C.pdf ∎ Use the damper at up to 95% humidity, non-condensing. ∎ The fire damper can be cleaned with a dry or slightly damp cloth. It is forbidden to use abrasive cleaners or mechanical cleaning...
-
Page 22: Operation And Mechanisms
Operation and mechanisms Operation and mechanisms ONE Spring return actuator for remote control The spring-return actuator ONE is designed to easily operate Rf-t fire dampers of all sizes, automatically or remotely. Five models are available, 24 or 230 volt, with FDCU or FDCB position switches; and 24 volt with plug (ST). 1. - Page 23 The spring return actuator BFL(T) is especially designed to operate fire dampers remotely. The BFL(T) variant is intended for fire dampers with smaller dimensions (CR60, CR120, CR2 with ø ≤ 400 mm, CRS60 with ø ≤ 315 mm, CU2 / CU2-15 / CU4 with B+H ≤...
- Page 24 The spring return actuator BFN(T) is especially designed to operate fire dampers remotely. The BFN(T) variant is intended for fire dampers with large dimensions (CRE60, CR2 with ø > 400 mm, CRS60 with ø > 315 mm or CU2, CU2-15, CU4 with B+H > 1200 mm. For Markage FD with H of 400 and 600 mm or with H = 1200 mm (2 pcs) and with H = 2400 mm (in combination with BFT motor).
-
Page 25: Electrical Connection
Electrical connection Electrical connection BFL(T) BFN(T) black black black 24VDC 24VDC 24VDC 24VAC 24VAC 24VAC 230VAC 230VAC 230VAC DC : Switch open position re damper DC : Switch open position re damper DC : Switch open position re damper FC : Switch closed position re damper FC : Switch closed position re damper FC : Switch closed position re damper Nominal voltage... -
Page 26: Weights
Weights Weights CRS60 + ONE T 24 FDCU L / ONE T 230 FDCU L ØDn [mm] 14,1 14,3 20,1 CRS60 + BFLT ØDn [mm] CRS60 + BFNT ØDn [mm] 14,0 14,2 20,0 Selection data ∆p (Pa) = 0,6 x v² x ζ... -
Page 27: Sample Order
Approvals and certificates Sample order CRS60 250 ONE T 24 FDCU L product diameter mechanism type Approvals and certificates All our dampers are submitted to a number of tests by official test institutes. Reports of these tests form the basis for the approvals of our dampers.
