1. TECHNICAL SPECIFICATIONS ........................................................................... 1
2. WIRING DIAGRAM ............................................................................................... 3
3. BLOCK DIAGRAM ................................................................................................ 5
4. SCHEMATIC DIAGRAM ....................................................................................... 7
5. PARTS LOCATION ............................................................................................. 13
6. IC DATA .............................................................................................................. 18
7. EXPLODED VIEW AND PARTS LIST ................................................................ 25
8. SERVICE PROCEDURE .................................................................................... 29
9. ELECTRICAL PARTS LIST ................................................................................ 30
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
STANDBY
DISPLAY
AUTO NIGHT
LFE L
C R
5 - STEREO
SL S SR
SLEEP
TIMER
STANDBY
DISPLAY
SURROUND
TIMER
AUTO NIGHT
LFE L
C R
5 - STEREO
SLEEP
TIMER
SL S SR
MENU
PHONES
TABLE OF CONTENTS
PS110
AV Surround Amplifier
MUTE
OPEN
DIGITAL
PLII
MOVIE
MUSIC
PS110
MUTE
OPEN
VOLUME
NIGHT
+
SLEEP
DIGITAL
PLII
MOVIE
MUSIC
BASS
BOOST
PS110/
N1S
PAGE
R
16AW855010 MIT
First Issue 2003.3
Advertisement
Table of Contents
Related Manuals for Marantz PS110
Summary of Contents for Marantz PS110
-
Page 1: Table Of Contents

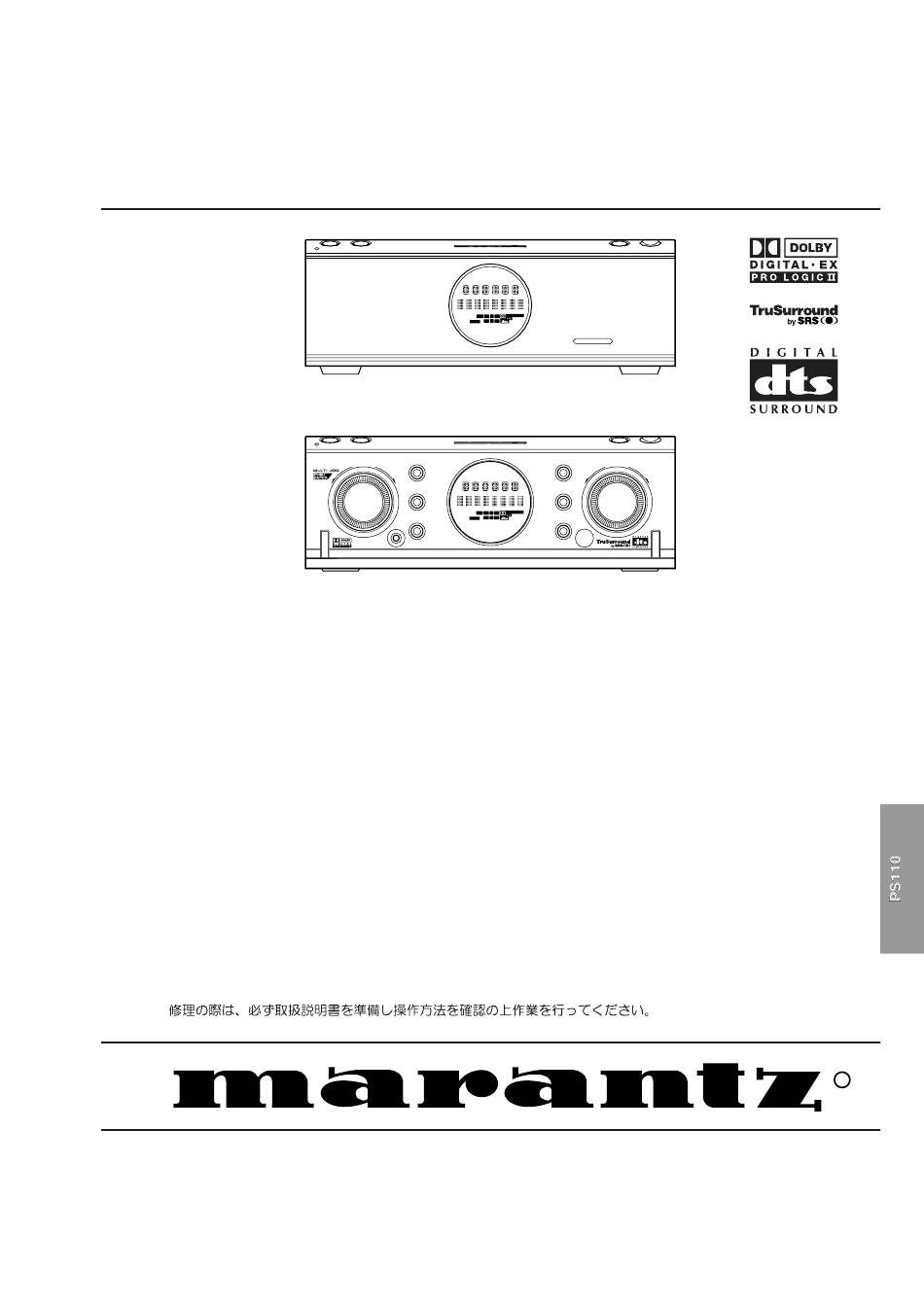

Service PS110/ Manual AV Surround Amplifier STANDBY DISPLAY MUTE OPEN AUTO NIGHT DIGITAL PLII LFE L 5 – STEREO MOVIE SL S SR SLEEP TIMER MUSIC PS110 STANDBY DISPLAY MUTE OPEN VOLUME SURROUND NIGHT TIMER SLEEP AUTO NIGHT DIGITAL PLII LFE L 5 –... - Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
-
Page 3: Technical Specifications
1. TECHNICAL SPECIFICATIONS AUDIO SECTION THD 10 % 6 Ω ................................50W / Ch THD 10 % 8 Ω ................................40W / Ch THD 1 % 6 Ω ................................40W / Ch THD 1 % 8 Ω ................................30W / Ch Continuous Power Output (40 Hz - 20 kHz) .......................... - Page 4 The relation between the selected surround mode and the input signal The surround mode is selected with the surround mode knob on PS110 or the remote control unit. However, the sound you hear is subject to the relationship between the selected surround mode and input signal. That relationship is as follows;...
-
Page 5: Wiring Diagram
2. WIRING DIAGRAM... -
Page 6: Block Diagram
3. BLOCK DIAGRAM... -
Page 7: Schematic Diagram
4. SCHEMATIC DIAGRAM... -
Page 10: Parts Location
5. PARTS LOCATION MAIN IC404 IC403 IC407 IC412 IC411 Q407 IC408 Q409 IC413 IC405 Q403 IC105 IC103 IC101 Q406 IC417 D401 D404 IC410 IC415 IC104 IC107 IC106 IC102 Q101 IC416 D402-3 D405-6 Q410-415 IC414... - Page 11 FRONT LED303 LED302 D307 LED303 FRONT Q301 Q307 Q302 Q303 Q311 D304 Q309 Q308 D301-2 Q301 Q310 Q312 Q304 Q305 D303 Q306 Q313...
-
Page 12: Ic Data
6. IC DATA IC102, IC104:DDX4100A Pin Function NAME TYPE DESCRIPTION FAN - IN / OUT Input I S Serial Data 1/AC97 Output Data SDl_1/SDATA_OUT S mode maps to L,R DDX) Input I S Serial Data 2/AC97 Input Data SDl_2/SDATA_IN S mode maps to LS,RS DDX) LRCKI/SYNC Input I S Left/Right Clock/AC97 Synch. - Page 13 IC101, IC103, IC105:DDX2100 Pin Assignment Block Diagram GNDREF VCC1P INLA GNDR1 OUTPL OUTPL VREG1 OUTPL BIAS DRIVE OUTPL VREG1 VCC1P CONFIG PROTECTION PGND1P PGND1P PWRDN DRIVER VCC1N FAULT CONFIG PGND1N LOGIC OUTNL TRISTATE PWRDN VCC1N TWARN OUTNL DRIVE TRI-STATE OUTNL GNDREF PGND1N FAULT...
- Page 14 IC405:AK4586 Pin Function No. Pin Name Function X'tal Output Pin X'tal Input Pin EXTCLK External Master Clock Input Pin TVDD Output Buffer Power Supply Pin, 2.7V ~5.5V DVSS Digital Ground Pin, 0V DVDD Digital Power Supply Pin, 4.5V ~5.5V Transmit channel (through data) Output Pin MCKO Master Clock Output Pin LRCK...
- Page 15 IC401:NJM4556AM IC410:74HCT244 Block Diagram Block Diagram Truth Table IC411:LC78211 Block Diagram...
- Page 16 IC413:74LCX244 Block Diagram Pin Function Pin Names Description , OE 3-STATE Output Enable Inputs – I Inputs – O Outputs Truth Table Inputs Outputs (Pins 12, 14, 16, 18) Inputs Outputs (Pins 3, 5, 7, 9) H = HIGH Voltage Level L = LOW Voltage Level X = Immaterial Z = High Impedance...
- Page 17 IC301:M66005FP IC414:CXP82840-351Q Pin Assignment Pin Assignment Note) 1. NC (Pin 3) must be connected to V Pin Function 2. V (Pins 44 and 89) must be connected to V Pin Function control PIN NO PIN NAME connection POWER DOWN SMPS CONTROL POWER ON MAIN OPERATION RC-5 IN...
-
Page 18: Exploded View And Parts List
7. EXPLODED VIEW AND PARTS LIST A x2 E x2 A x4 A x4 C x14 POWER SUPPLY (SMPS) PCB ASSY E x2 K x13 K x2 F x2 PE x2 8 x3 7 x3 9 x2 35 x2 34 x2 5 x2 K x2 4 x2... - Page 19 ACM393 DARB-2(W=2.6,L=50)/WIRE 4330000310000 *YU001180R CABLE,FLAT CARD 17PIN MAIN(CP484) – FRONT(CP301) L301241170010 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
-
Page 20: Service Procedure
8. SERVICE PROCEDURE 9. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : ASSIGNMENT OF COMMON PARTS CODES. Rsetting the unit RESISTORS The suppliers and their type numbers of fusible resistors 1. Pull out the Mains (AC) plug from wall outlet. : 1) GD05 ×... - Page 21 C,FILM POLYESTER 0.1µF-J/63V-5RE D020104068050 C158 DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160 C159 DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160 C160 DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 22 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160 C438 OA10603540 C,ELECT GE 85C 10µF-M/35V,5*11-5RE SY D040100085050 C439 DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160 C440 DK96103300 C,CERAMIC CHIP HIK 0.01µF-K/50V-1608REEL D011103777160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 23 DDX-4100A MULTI CH DIGTAL J085410000010 IC105 *HC108270R *HC108270R IC,LINEAR POWER DDX-2100 DIGITAL HIGH POWER J122210000010 IC107 *HC108230R *HC108230R IC,LOGIC-D/A CONVER CS4334-KS 24BIT,96K STEREO DAC J042433400010 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 24 R,CHIP THICK 20-J,1/4W-3216REEL C200020006330 R121 NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160 R124 R125 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330 R126 *NX000010R *NX000010R R,CHIP THICK 4.7-J,1/4W-3216REEL C2004R7006330 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 25 C20001056M160 R496 NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160 R497 NN05224610 R,CHIP THICK 220K-J,1/16W-1608REEL C20002246M160 R498 NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160 R499 NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 26 C,CERAMIC CHIP HIK 2200pF-K/50V-1608REEL D011222777160 C450 DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160 C453 OA10505020 C,ELECT GE 85C 1µF-M/50V,5*11-5RE D040010087050 C454 DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 27 C20004716M160 R411 NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160 R412 NN05471610 R,CHIP THICK 470-J,1/16W-1608REEL C20004716M160 R413 NN05104610 R,CHIP THICK 100K-J,1/16W-1608REEL C20001046M160 R416 NN05472610 R,CHIP THICK 4.7K-J,1/16W-1608REEL C20004726M160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 28 EJ147601610 C,ELECT GE 85C 47µF-M/16V,6.3*5-5RE.SY D040470083070 C304 DK96104300 C,CERAMIC CHIP HIK 0.1µF-K/50V-1608REEL D011104577160 C305 DK96821300 C,CERAMIC CHIP HIK 820pF-K/50V-1608REEL D011821777160 C308 C310 DD95101300 C,CERAMIC CHIP T.C 100pF-J/50V-1608REEL D010101167160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 29 C20002426M160 R363 NN05432610 R,CHIP THICK 4.3K-J,1/16W-1608REEL C20004326M160 R364 NN05822610 R,CHIP THICK 8.2K-J,1/16W-1608REEL C20008226M160 R365 *NN000520R R,CHIP THICK 24K-J,1/16W-1608REEL C20002436M160 R367 NN05103610 R,CHIP THICK 10K-J,1/16W-1608REEL C20001036M160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 30 SW,TACT SKHV10920A,5MM/260G-REEL G180000270010 VOL301 *SR000230R *SR000230R SW,ENCODER EC16B24T00C3ZZZ G121162400010 VOL302 *SR000160R *SR000160R SW,ROTARY EC11B20D2-ZZZ G120112020010 POWER SUPPLY(SMPS) PCB *FS001010R *FS001010R FUSE T4AL/250V FUSE CARTRIDGE G659402251010 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
