GKOLED GKOFDG11 Series Installation Manual

Advertisement

Quick Links

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
— Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
— To prevent product malfunction and/or electrical shock this product must be properly grounded.
— RANGE OF POWER ADJUSTMENT IS LIMITED TO 100% / 80% / 60% / 40%. RANGE OF CCT ADJUSTMENT IS LIMITED TO 3000K / 4000K / 5000K.
— This luminaire is designed to operate in ambient temperatures ranging from -40°F to 104°F (-40°C to 40°C).
— This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and
the hazards involved.
— MIN 167°F (75°C) SUPPLY CONDUCTORS.
— Suitable for mounting up to 4ft (1.2m) off the ground.
— If installing product with lens facing up, ensure the lens is kept free of debris to minimize the risk of damage to the product.
— This product is not suitable for several special environments, such as places with corrosive gas liquids or high pressure water vapor.

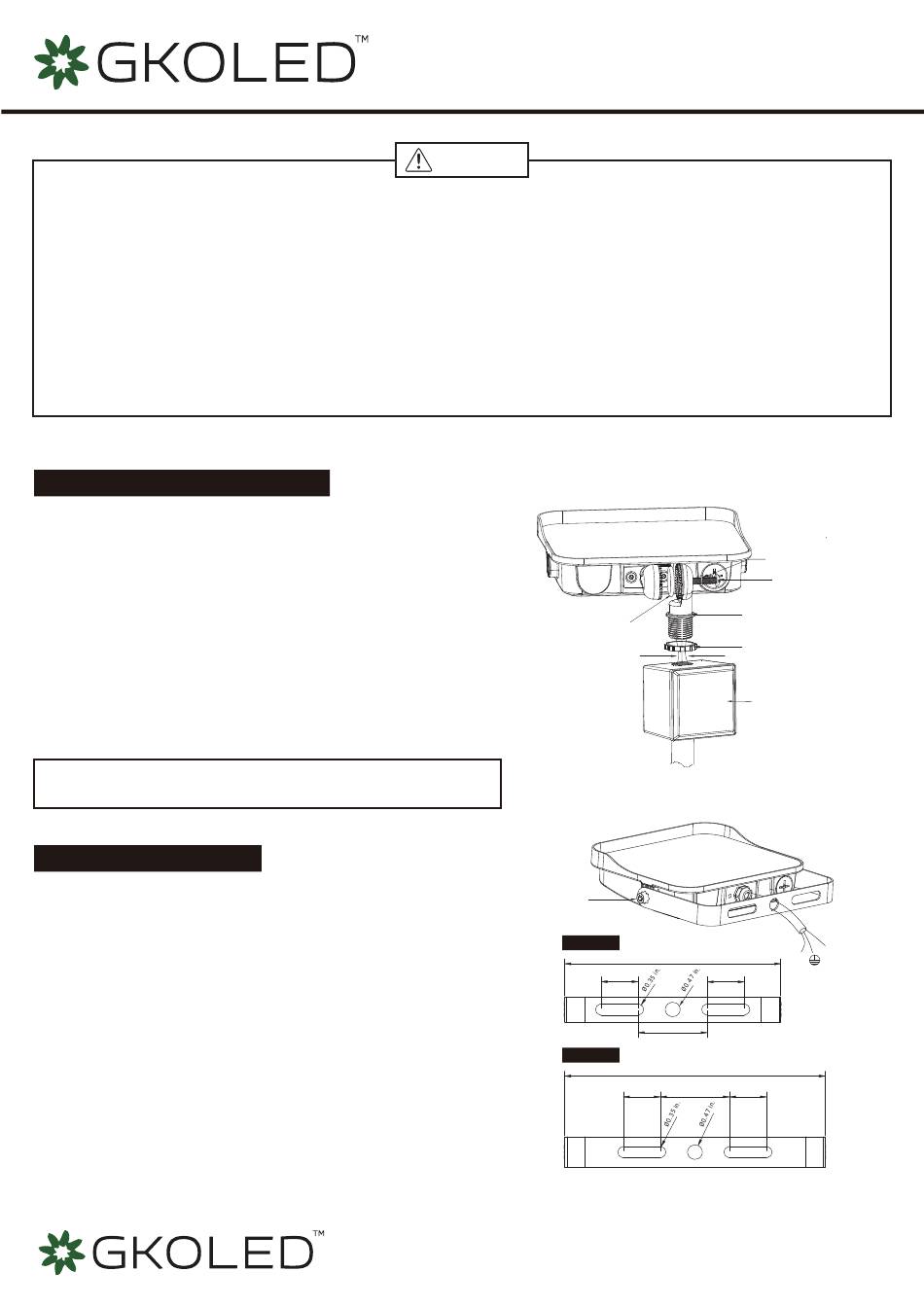

Installation Guide
1/2" NPS Knuckle Mount (Figure 1)
OPTIONAL: Ground Stake Mount
1. IMPORTANT: Installation and service of luminaire should only be performed by
a qualified licensed electrician.
2. Install the fixture using the 1/2" screw bracket onto a weatherproof Junction
Box (not included), and secure it using the 1/2" locknut.
3. Make electrical connections from the supply ground (L/N/GND) lead to the
fixture ground (L/N/GND) lead respectively, making sure to follow all National
Electrical code and all applicable codes and ordinances. Make sure water does
not enter the fixture through the 1/2" fitter while making electrical connections.
4. To aim the fixture, loosen the screw on the fitter of the knuckle mount and
rotate the fixture to the desired tilt angle, then retighten the screw.
5. Series GKOFDG11 Flood Lights come equipped with a photocell, which is
covered by a cap by default. To activate the photocell, remove the photocell cap
on the top of the fixture (See Figure 7).
IMPORTANT: Seal the 1/2" NPS thread using waterproof silicone sealant during
installation to prevent water ingress.
Trunnion Mount (Figure 2)
1. IMPORTANT: Installation and service of luminaire should only be performed by
a qualified licensed electrician.
2. Mount the fixture onto the surface using the hole pattern provided on the
trunnion bracket.
3. Make electrical connections from the supply ground (L/N/GND) lead to the
fixture ground (L/N/GND) lead respectively, making sure to follow all National
Electrical code and all applicable codes and ordinances.
4. To aim the fixture, loosen hex socket CM6 screws on the sides of the trunnion
mount and rotate the fixture to the desired tilt angle, then retighten the screws.
5. Series GKOFDG11 Flood Lights come equipped with a photocell, which is
covered by a cap by default. To activate the photocell, remove the photocell cap
on the top of the fixture (See Figure 7).
FLOOD LIGHT GKOFDG11
WARNING
Waterproof Ring
Hex Socket
CM6 Screw
15W / 27W
1.18 in.
40W / 65W
Installation Guide
Silicon Rubber
Waterproof Gasket
Screw
1/2" Screw Bracket
1/2" Locknut
L
N
Weatherproof Junction Box
(Not Included)
(Figure 1)
L
6.95 in.
1.18 in.
2.2 in.
8.33 in.
1.18 in.
1.18 in.
2.2 in.
(Figure 2)
10330 Argonne Woods Dr. Ste. 200
Woodridge, IL 60517
Phone: 630-793-9449
Web: www.gkoled.com
N
