Summary of Contents for WizarPOS Q1

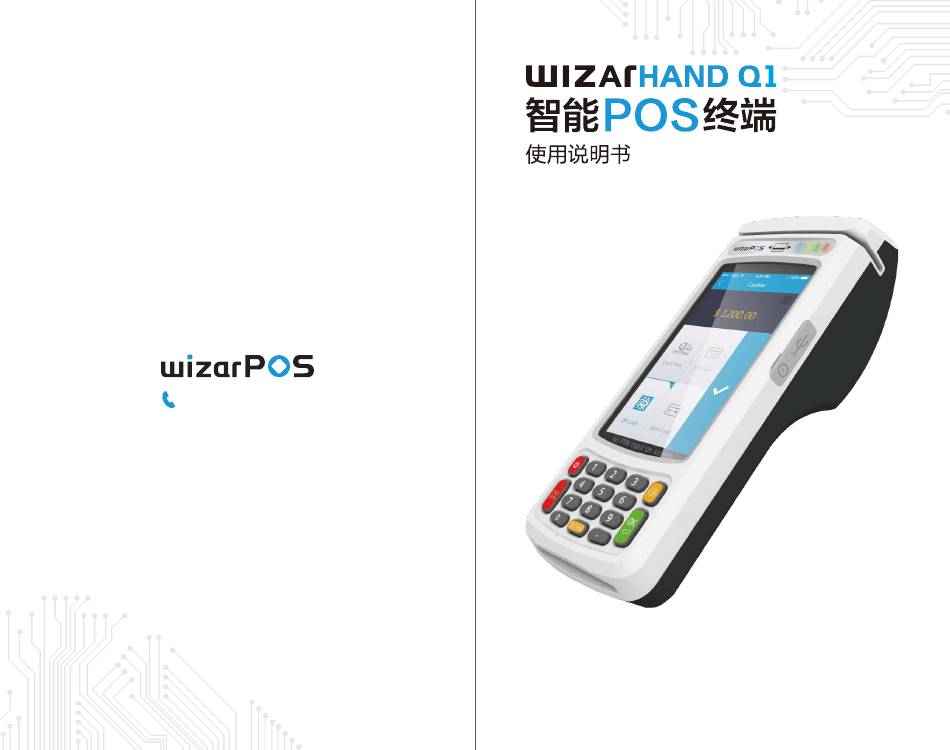

- Page 1 400-608-2601 www.wizarpos.com V1.4, 2019年8月...
- Page 2 产品特点 装箱单 Product Characteristics Packing List 感谢您使用上海慧银信息科技有限公司产品！ Thank you for using the wizarPOS International Co., Ltd. Products! 智能 ＋ 安全 Security Intelligent WIZARHAND Q1 5V电源适配器 WIZARHAND Q1 5V Adapter 充电线 7.4V锂电池 DC Cable 7.4V Lithium Battery...
- Page 3 正视图 左/右视图 Front View Lift / Right View 左 Left 右 Right 磁条卡读卡器 Magnetic Card Reader LED状态指示灯×4 4 Indicators 扫描键 4英寸电容式多点触摸屏 Scan Key 4”Capacitive Multi-touch Screen 按压式指纹扫描模块(选配) 开关键 密码键盘 Fingerprint Sensor (Select) PINPAD Power Key 扫描键 话筒 电源接口 & Micro-USB 接口 Scan Key DC Jack &...
- Page 4 上/下视图 后视图 Top / Bottom View Back View 上 下 Bottom 非接卡读卡区域 高清自动对焦摄像头 Contactless Card Reader Auto-focus Camera 一维、二维码扫描头 58mm热敏打印机 Barcode and 2D Barcode Scanner 58mm Thermal Printer 智能卡读卡器 电池仓盖 IC Card Reader Battery Compartment Cover...
- Page 5 后视图 操作说明 Back View Operating instructions 使用前准备 (Before use) a) 使用前请先安装电池，并锁紧电池盖紧固螺钉。 Please install the battery first, and lock the screw on cover. b) 如电池电量不足，请先充电。 Please charge if the battery has not enough energy. c) 正确装入纸卷，并盖好打印机后盖。 Load the paper roll, and close the printer cover. 开机与关机...
- Page 6 请将磁条卡的磁条朝向屏幕侧刷卡，本机可双向刷卡。 电池 7.4V 2400毫安时锂离子聚合物电池 Swipe the magnetic stripe card with magnetic stripe facing to screen, you can bi-directional swipe the card. 外观尺寸 183×76×50毫米 c) 使用非接触卡时，请快速将卡靠近非接触卡读卡器。 重量 450克 Place the contactless card close to the card reader area. 以上产品规格仅供参考，产品最新信息请查阅慧银官方网站 www.wizarpos.com 。...
- Page 7 规要求回收。 Weight 450g Do NOT waste the POS, charger or battery as common household garbage. All features and specifications are subject to change without notice. Please support recycle according to local environment rules. Contact wizarPOS website for more details. www.wizarpos.com...
- Page 8 安全注意事项 故障排查指南 Safety Precaution for Use Trouble shooting 安全警示 (Warning) 故障情况 排查方式 Trouble Trouble shooting ◆ 请使用原装电池及充电器，否则可能造成产品损坏或人身伤害。 Please use the original battery and charger, otherwise that may cause 无法连接移 ◆检查设置中“移动数据”功能是否已开启。 product damage or personal injury. 动通信网 Check whether the function of “data” is open. ◆...
- Page 9 环保说明 (Description of environmental protection) 2. 保修期内，产品出现非人为损坏的故障，本公司可提供免费维修或部件 环保使用期限标识和产品中有害物质的名称及含量。 更换服务。 List of harmful substances in the product and logo of environment-friendly In warranty period, wizarPOS provide free repair/replace service, if the use period. product has non artificial product failures. 3. 用户需要维修本产品时，请拨打慧银公司售后服务热线。 左图为本型号产品的环保使用期限标...
- Page 10 慧银产品保修条例 慧银产品维修记录 wizarPOS Warranty regulations wizarPOS repair records 有害物质 Harmful substances 部件名称 维修日期 维修内容 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 Part Repair date Repair content Cr(VI) PBDE 显示屏组件 LCD and ○ ○ ○ ○ ○ ○ TP Module 外壳与键盘 Housing and ○...
