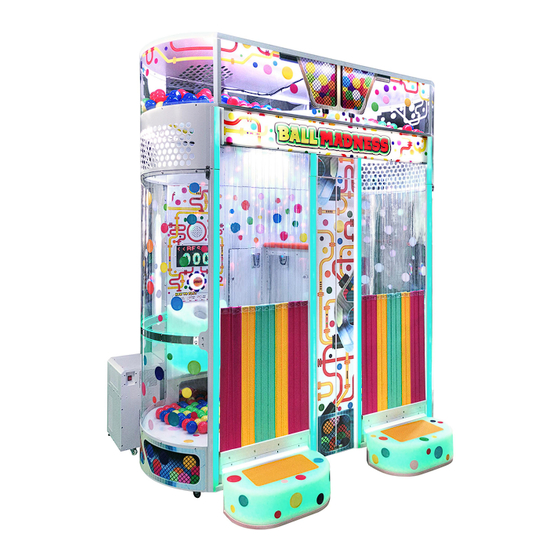

BALL MADNESS
Operator Manual V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BALL MADNESS and is the answer not in the manual?

Questions and answers

Related Manuals for Betson BALL MADNESS

Summary of Contents for Betson BALL MADNESS

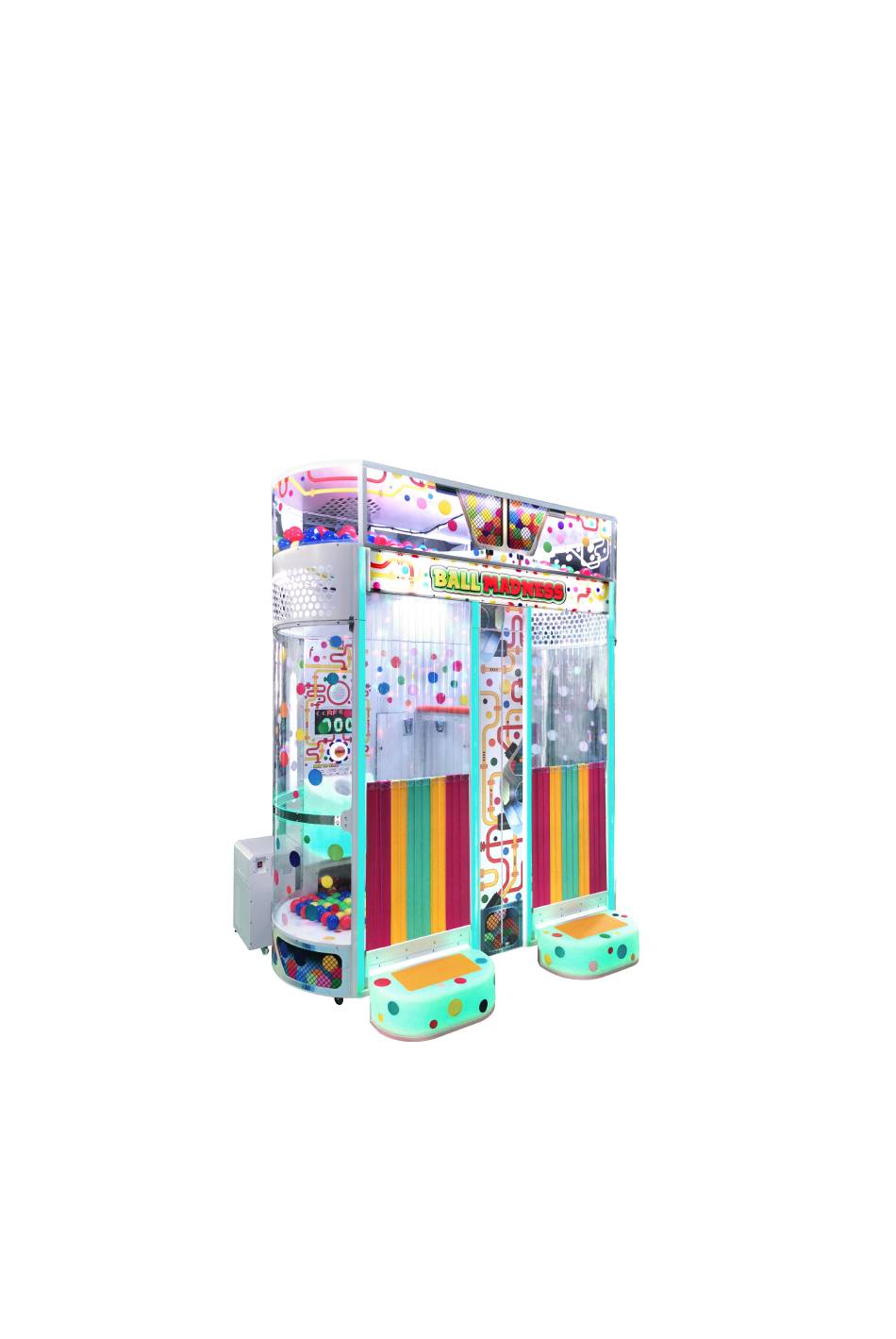

  • Page 1 BALL MADNESS Operator Manual V1.1...

  • Page 2: Table Of Contents

    < BALL MADNESS > Manual V1.1 Contents 1. Read safety information before using............2 1.1. Machine specification................2 1.2. Safety instruction................. 2 1.3. Package Contents................. 4 2. Machine instructions..................5 2.1. Installation notes.................. 5 2.2. Play instruction...................11 2.3. Game considerations................12 3.

  • Page 3: Read Safety Information Before Using

    < BALL MADNESS > Manual V1.1 1. Read safety information before using 1.1. Machine specification 1.Rated power supply: AC110-220V 50/60Hz （According to nameplate which stick on the machine） 2.Size：W2300×D1660×H2600mm 3.Weight：About 500 Kg 4.Rated power consumption：1200W 1.2. Safety instruction ***Instructions to the Owner***...
  • Page 4 < BALL MADNESS > Manual V1.1 ●Dust accumulating on the power cord plug may result in a fire. Inspect the plug regularly and remove any dust. ●Fully insert the power cord plug into the outlet. Poor contact may generate heat and result in a fire or burns.

  • Page 5: Package Contents

    < BALL MADNESS > Manual V1.1 1.3. Package Contents 1.3.1 Packaging List Name N.W(KG) G.W(KG) Packing size(W x D x H) Player 1 (Left cabinet) 1320x1160x2200mm Player 2 (Right cabinet) 1320x1160x2200mm Marquee 2310x1450x830mm 1.3.2 List of Accessories bag Description Code...

  • Page 6: Machine Instructions

    < BALL MADNESS > Manual V1.1 2. Machine instructions 2.1. Installation notes 2.1.1. Unpack the packing material of each part of the machine Step x 2set Main cabinet Marquee Balls x 1000PCS 700pcs for operating (350pcs per side*2 sides )
  • Page 7 < BALL MADNESS > Manual V1.1 2.1.2. Install the marquee on the top side of main body as below photo. 1--Remove the two sheetmetal supports. Attention the cable 2--Splice Left cabinet、 Right cabinet and Marquee. 3--Lock the 5 locks around.
  • Page 8 < BALL MADNESS > Manual V1.1 2.1.3. Install the Curtain (Elastic curtain version). Tighten the screws here (hexagon socket truss head screw M4×8, 8PCS) Tighten the screws here (Inside) (Lid Nut M4, 8PCS + Spacer M4, 8PCS )
  • Page 9 < BALL MADNESS > Manual V1.1 2.1.4. Install the Curtain (Magnetic curtain version). Tighten the screws here (Inside) (Lid Nut M4, 8PCS + Spacer M4, 8PCS ) Use side holder metal to fix the curtain on both sides . (hexagon socket truss head screw M4x6,...
  • Page 10 < BALL MADNESS > Manual V1.1 2.1.5. Install the blower’s component to the main cabinet and connect the communication cable. 2--Connect the cable 3--Insert the metal hook 1--Connect the connection between blower ASSY and into the main cabinet. between the blower ASSY main cabinet ASSY and the main cabinet.
  • Page 11 < BALL MADNESS > Manual V1.1 2.1.6. Fix the steps with the main cabinet as follows: 1--Connect the LED cable 2--Fix the bottom plate on the main cabinet by bolts. (M5x10, 2PCS) 3--Fix the steps with main cabinet by bolts.

  • Page 12: Play Instruction

    < BALL MADNESS > Manual V1.1 2.2. Play instruction Display screen Ticket dispenser Start button Coin selector Ball entrance Coin box Ball recycling entrance Ball release door...

  • Page 13: Game Considerations

    < BALL MADNESS > Manual V1.1 A—Single player Mode 1.Open the colorful curtain and enter into house carefully. 2.Insert the coins ,the machine will be ready soon. 3.When display screen show “DOWN ARROW” , Press “START BUTTON” to start the game.

  • Page 14: Machine Setting & Test Instructions

    < BALL MADNESS > Manual V1.1 3. Machine setting & Test instructions 3.1. Dip switch setting DIP SWITCH “SW1, SW2, SW3” on the mother board, as below： SW1： Demo Clear balls Clear balls Item Coin(s) per credit Memory Language music...
  • Page 15 < BALL MADNESS > Manual V1.1 SW2： Item Points per ball Winner tickets Speed of collecting ball 1 Point/Ball 2 Points/Ball 3 Points/Ball 4 Points/Ball 5 Points/Ball 10 Points/Ball 15 Points/Ball 20 Points/Ball 0 Ticket 1 Ticket 2 Tickets 5 Tickets...
  • Page 16 < BALL MADNESS > Manual V1.1 SW3： Master/sla Item Points per ticket ve device Without ticket Set as slave Set as master 1P = ON Default setting 2P = OFF ▲Host and slave device： We should set the left side of the machine as Host device （ON） , and right side as Slave device （OFF）...

  • Page 17: Test Instructions

    < BALL MADNESS > Manual V1.1 3.2. Test instructions 3.2.1. Setting Panel Description ■UP / TEST: Click in the standby state to enter the test program; Press the flip page in the test program ■DOWN / SERVICE：On standby, click the free game once; Click on the next page in the test program ■ENTER/CLEAN：Tap in the test program to select or ENTER, Hold 3 seconds to clean the...
  • Page 18 < BALL MADNESS > Manual V1.1 Testing of TOP BALL RELEASE DOOR switch Press“ENTER” button, BALL RELEASE DOOR start to turn(the second press will turn back), Display screen will show “OPEN”“CLOSE”to check the switch. ON means be detected, OFF means haven’t been detected.
  • Page 19 < BALL MADNESS > Manual V1.1 Test of SOUND Press “ENTER” button,the screen displays the segment number and starts playing the segment. Browse all input signal states Each letter represents an input signal,red is “OFF” and green is “ON”. The corresponding signal name of each letter is shown in the table below: “ENTER”...
  • Page 20 < BALL MADNESS > Manual V1.1 SAVE AND EXIT 3.2.3. Detailed explanation of game mode and game time setting  GAME MODE  GAME TIME  JUDGE TIME  PASS SCORE Press “ENTER”,he selection to be set will turn red.Press “UP” or “DOWN” to adjust the mode or value.Press“...

  • Page 21: Fault & Resolution

    < BALL MADNESS > Manual V1.1 4. Fault & Resolution 4.1. Fault code description and fault handing ERROR ERROR DESCRIPTION FAULT ANALYSIS AND TREATMENT CODE Software version The version has been updated.Restart the machine to Error 1 update remove the alarm.

  • Page 22: Other Fault Analysis And Treatment

    < BALL MADNESS > Manual V1.1 ERROR ERROR DESCRIPTION FAULT ANALYSIS AND TREATMENT CODE working normally.If the motor doesˊt turn,change the motor;If there is no “OFF” signal,adjust the gap between the sensor and door or replace sensor. 1、Check if there is any foreign matter stuck in the ball pipe and remove if there is；...

  • Page 23: Machine Parts Analysis Diagram And Parts List

    < BALL MADNESS > Manual V1.1 5. Machine parts analysis diagram and parts list Left & Right cabinet: Part Number Part Name Specifications Main frame coaming KL0002391 Transparency PC (The left and right are the same.) KL0000890 Display screen panel...
  • Page 24 < BALL MADNESS > Manual V1.1 Marquee: Part Number Part Name Specifications YB0000252 Ball drop fixed gate White ABS MA0000370 Sensor TL-N10ME2;NPN:NC YB0000242 Ball drop turn gate White ABS ZC0000400 Bearing 606zz KL0000873 Scatter plate of LED Acrylic KL0002411 Scatter plate of LED-CR...
  • Page 25 < BALL MADNESS > Manual V1.1 Main cabinet: Part Number Part Name Specifications Step-JP(Elastic curtain version) YB0000980 White PE Rubber mat(Elastic curtain version) TD0000350 PEVA,200mm ME0000750 Stainless buckle NRH,5104B(Lock hole) KL0002501 Curtain (Elastic curtain version) Transparency PVC HE0000700 Curtain of red (Elastic curtain version)
  • Page 26 < BALL MADNESS > Manual V1.1 Blower box: Part Number Part Name Specifications MH0000300 12V power supply box LRS-200-12 MH0000240 Switching power RD-125A，5V-12V double lines MA0000350 Solid state relay CDG1-1DA40 HE0001330 Rubber damping cushion VD15*15*M4 MA0000621 Blower CY160,550w，220V， HE0001340 Rubber damping cushion...
  • Page 27 < BALL MADNESS > Manual V1.1 Inside of cabinet: Part Number Part Name Specifications MA0000160 Gate opening motor 634JX31ZY12V33RPM MX0000920 Correlation type sensor detection-Receiving IR-16A MX0000930 Correlation type sensor detection-Emitting IR-16B MX0000020 Sensor detection substrate MY4035.PCB KL0000913 Ball gate baffle...
  • Page 28 < BALL MADNESS > Manual V1.1 Part Number Part Name Specifications MX0000180 Motherboard MY MAIN PCB V002.3B YB0000010 Ticket box White plastic ML0000010 Counter DC 12V 6 MB0000070 Press button HE0000310 Right of the L-spring latch 90mm,Install of metal,right Outside of cabinet:...
  • Page 29 < BALL MADNESS > Manual V1.1 Part Number Part Name Specifications HE0000210 L-spring latch 90mm,left YQ0000030 Cash box lock 3157 Sound and light parts： Part Number Part Name Specifications MK0000010 Speaker 4 inches, 8 ohms, 15 watts;85*85 SH0005570 L90 Cable ties...
  • Page 30 < BALL MADNESS > Manual V1.1 Part Number Part Name Specifications SH0020370 972N Mounting Plate SECC SH0020360 Chain bracket Q235 SH0013531 Chain fixing frame SECC HE0001300 Chain 2.0,Stainless SH0013630 Front case chain buckle SECC MA0000900 Fuse Littelfuse 218 Series, 5×20 mm, T5A@250VAC...
  • Page 31 < BALL MADNESS > Manual V1.1 Magnet curtain (Magnet curtain version) inside Magnet curtain version ONLY Part Number Part Name Specifications HE0002210 Left magnet curtain of one set 300x1670mm HE0002220 Right magnet curtain of one set 300x1670mm AY0000090 Magnet curtain set. With [93][94]&Bracket...

  • Page 32: Machine Maintenance And Replace Sensors

    < BALL MADNESS > Manual V1.1 6. Machine maintenance and replace sensors 6.1. Machine maintenance Even if the machine is running normally, in order to keep the machine operating in the best condition and for a longer period of use, please carry out the following routine inspection and maintenance (once a month) 1.

  • Page 33: How To Replace Sensors

    < BALL MADNESS > Manual V1.1 6.2. How to replace sensors. 1.Remove the four hexagonal caps with a socket wrench and remove the semicircle gusset plate . 2.Remove the two screws with an cross screwdriver 3.Remove the five screws of the cover plate.

  • Page 34: Wiring Schematic

    < BALL MADNESS > Manual V1.1 6.3. Wiring schematic...
  • Page 35 < BALL MADNESS > Manual V1.1...
  • Page 36 < BALL MADNESS > Manual V1.1...
  • Page 37 < BALL MADNESS > Manual V1.1...
  • Page 38 < BALL MADNESS > Manual V1.1...
