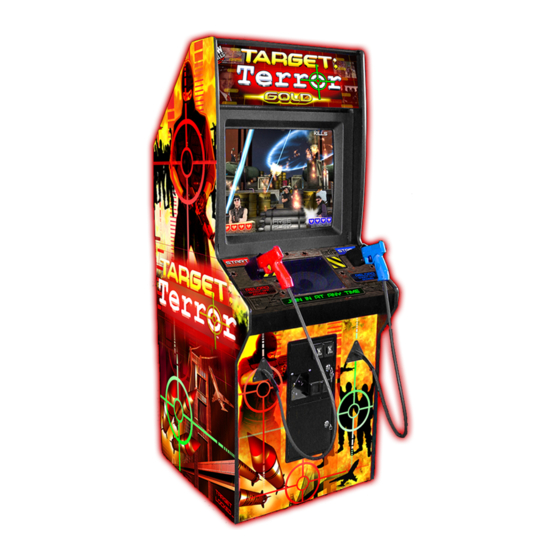

April 2005 TARGET: TERROR GOLD TARGET: FORCE GOLD CONVERS ION KIT MANUAL Target: Terror / Target: Force • Copyright 2005 • Raw Thrills Inc • All rights reserved.
Page 2
April 2005 Target: Terror Gold Target: Force Gold For Parts or Service contact your local Distributor or: Betson Enterprises 303 Paterson Plank Road Carlstadt, New Jersey Main Phone: (201) 438-1300 Toll Free Phone: (800) 524-2343 Part Phone: (800) 828-2048 CAUTION: •...
Page 3
April 2005 Safety Instructions Safety instructions apply to operators and service personnel. Read these instructions before preparing the video game video game conversion. Other safety instructions appear throughout this manual. WARNING: TRANSPORTING THE VIDEO GAME MACHINE (VGM). The VGM contains glass and fragile electronic devices. Use appropriate care when transporting . Avoid rough handling when moving the VGM.
This kit conversion requires some familiarity with AC voltage and safety around electronic devices. If at any point you are uncertain as to how to proceed during this conversion, STOP and call Betson Enterprises at 1-800-524-2343.
April 2005 SECTION 2: INSTALLATION PROCEDURE 1. Unplug the game and move it to a safe work area. 2. Remove the following items from the cabinet • game logic PCB • marquee graphic insert • control panel if converting from a game other than a gun game Note: Leave the existing power supply, JAMMA harness and all associated game wiring harness in the cabinet.
Page 7
April 2005 Lethal Enforcers Cabinet Conversion Gauntlet Legends Cabinet Conversion Target: Terror / Target: Force • Copyright 2005 • Raw Thrills Inc • All rights reserved.
Page 8
April 2005 Making the Electrical Connections NOTE: Make sure the game is unplugged and with the game power switch to the OFF position before you begin. Please refer to Fig. A “Kit Chassis Block Diagram” for connector locations. AC Service to Power Supply 1.
Page 9
April 2005 1. Connect the Player 1/Red Gun connector to JAMMA I/O board at connector labeled “Player 1 Gun”. 2. Connect the Player 2/Blue Gun connector to JAMMA I/O board at connector labeled “Player 2 Gun”. 3. Double-check your connections before you proceed. Set DIP Settings for Correct Display Resolution Note: Game display output resolution is determined by two DIP switch settings on the JAMMA I/O board.
Page 10
April 2005 FIGURE A: Kit Chassis Block Diagram HARD DRIVE HARD DRIVE POWER Motherboard Power PC uATX 270W AC Power PC Reset Signal POWER SUPPLY RESET PCB & Power Switch (WATCHDOG HARNESS) **See Notes 1,2 for JAMMA IDE1 Connection IDE2 Connect to Red/”Reset”...
April 2005 Power Up and Startup Sequence 1. Double check all your connections before turning the game on. 2. Turn the game ON. 3. The start up sequence is as follows: NOTE: All video output is VGA during this sequence. Your monitor may display a scrambled image, no image, or “NO SIGNAL”...
Page 12
April 2005 The gun can also be used to perform the above functions. Shoot the menu item to Select and shoot twice to Enter. The selected item is highlighted. SECTION 3.1: MAIN MENU The Main Menu appears when the TEST button is pressed. SECTION 3.2: GAME SETTINGS From the Main Menu, select Game Settings and Enter to view options.
Page 13
April 2005 SECTION 3.2.1: MORE OPTIONS From the Game Settings menu, select More Options and enter to view more options. Return to Game Settings by selecting Previous Options. Default Settings GAMEPLAY DURING ATTRACT Disabled- Enabled Enabled VIOLENCE LEVEL Red Label(1-5), Yellow Label Red Label LV5 3-6 Characters 6 Characters...
Page 14
April 2005 Default Settings FREE PLAY OFF-ON MONETARY UNIT Select Currency Dollars ONE UNIT EQUALS Select Unit 0.25$ REGULAR START 1-10 UNITS 2 UNITS (0.50$) REG. CONTINUE 1-10 UNITS 2 UNITS (0.50$) JUSTICE START 1-10 UNITS 2 UNITS (0.50$) JUSTICE CONTINUE 1-10 UNITS 2 UNITS (0.50$) 10-200...
Page 15
April 2005 SECTION 3.5: GUN CALIBRATION From the Main Menu, select and enter Gun Calibration. Follow the instructions as they appear on the screen. Press Left Start or Service to accept the calibration. If gun calibration is unsuccessful, the game automatically returns to the calibration screen. If successful, a verification screen will appear.
Page 16
April 2005 SECTION 3.7: COIN METER TEST From the Main Menu, select and enter Coin Meter Test. Press the Service button to advance the mechanical coin meter. Press Test or Start to return to the Main Menu. SECTION 3.8: AUDIO/VIDEO OPTIONS From the Main Menu, select and enter Audio/Video Options.
Page 17
April 2005 SECTION 3.8.1: COLOR BARS AND PURITY From the Audio/Video Options menu, select and enter Color Bars & Purity. Verify correct color and purity for Red, Blue and Green screens. SECTION 3.8.2: CONVERGENCE TEST From the Audio/Video Options menu, select and enter Convergence Test. Verify proper screen contrast and size.
Page 18
April 2005 SECTION 3.9: VIEW AUDITS From the Main Menu, select and enter View Audits. Press Service Left Start or Service to cycle through Audits Page 1 to 5. Audit Page 1: Audit Page 2: Target: Terror / Target: Force • Copyright 2005 • Raw Thrills Inc • All rights reserved.
Page 19
April 2005 Audit Page 3: Audit Page 4: Audit Page 5: Target: Terror / Target: Force • Copyright 2005 • Raw Thrills Inc • All rights reserved.
April 2005 SECTION 3.10 OTHER OPTIONS From the Main Menu, select and enter Other Options. OPTION DESCRIPTION Clear High Score Clear high score tables Auto HS Clear Adjust number of games before high score tables get cleared Clear Credit Zero any existing game credits Clear Audits Zero all game play statistics Restore Default Settings...
Page 21
April 2005 Sync Polarity incorrect. Scrambled or scrolling display Scrambled or scrolling Try various DIPswitch settings for Sync Polarity incorrect. display HSYNC and VSYNC. No video display. No power to video display. Check power to video display. Sync Polarity incorrect. Scrambled or scrolling display Game will not power up.
April 2005 SECTION 5: PARTS PART DESCRIPTION PART NUMBER TT KIT ASSEMBLY 1-7-01-00-00-000 TT MARQUEE GRAPHIC 1-7-01-00-00-001 TF MARQUEE GRAPHIC 1-7-01-00-00-002 LEFT SIDE DECAL 1-7-01-00-00-003 RIGHT SIDE DECAL 1-7-01-00-00-004 CONTROL PANEL 1-7-01-00-00-005 TT CHASSIS ASSY 1-7-02-00-00-000 NFORCE MOTHERBOARD(BIOSTAR) 1-7-02-00-00-001 256MB RAM PC3200 1-7-02-00-00-002 20G HARD DRIVE 7200RPM 1-7-02-00-00-003...
Page 23
April 2005 INCLUDED PARTS (NOT SHOWN: MANUAL & RESTORE DVD) Kit Chassis Bracket Guns & Holsters 2 X Marquee Graphics Left & Right Side Decals 1 X Control Panel Overlay Mounting and Power Hard Drive & Mounting Hardware Set Screws Target: Terror / Target: Force •...
April 2005 Appendix A: Hard Drive Recovery NOTE: Target: Terror is shipped with a recovery DVD disk. Hard drives have been known to occasionally fail for many reasons. Follow the procedure below to restore data on the hard drive if a disk failure should occur. Use extreme care when performing the following procedure and avoid rough handling of PC components or DVD disk.
April 2005 AppendixB: BIOS SETTINGS NOTE: Target: Terror Kit is shipped with the correct BIOS settings. Any changes made to the BIOS other than what is described below may adversely affect the game. Procedure: 1. Turn game OFF. 2. Connect a PS/2 or USB keyboard to the PC. 3.
April 2005 Appendix C: Basic Display Adjustments WARNING: Extremely high voltage is present on the monitor assembly. The monitor does not contain any user serviceable parts. Do not attempt to service the monitor. Target: Terror utilizes gun optic boards which rely on signals being detected from the display to operate properly.
April 2005 Appendix D: Violence Level Settings The information below contains details of each Violence Level Setting available on Target: Terror. For information an how to change the Violence Level, please refer to Section 3 to Section 3.2.1 of this manual. Violence Level Mode Yellow...
