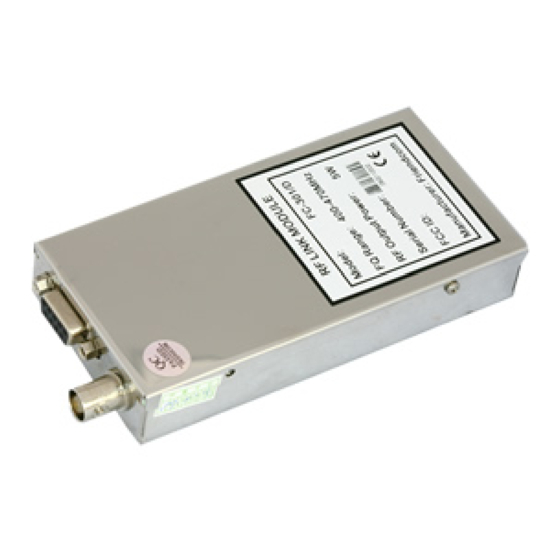

FC-301/D

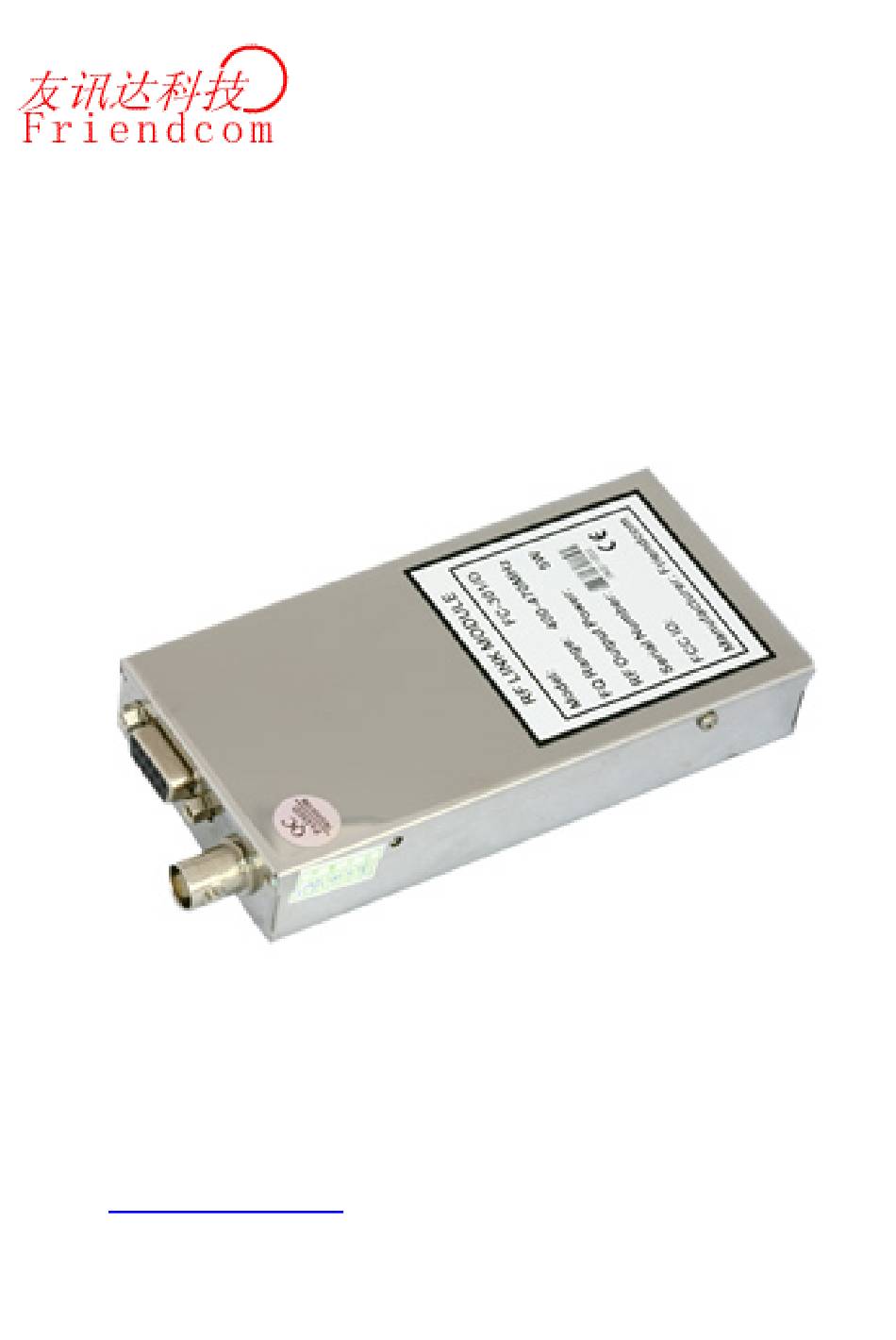

USER MANUAL
SHENZHEN FRIENDCOM TECHNOLOGY DEVELOPMENT CO.,LTD
ADD: 6/F, 17 Building , Guangqian Industrial Park, Longzhu Road, Xili Town, Nanshan,
Shenzhen City 518055 P.R.CHINA.
TEL: +86-755-86026600 +86-755-86026192 FAX: +86-755-86026300
E-MAIL :
inmgr@friendcom.com
WEBSITE: www.friendcom.cn
