PAIRGAIN TECHNOLOGIES
Technical Practice
Engineering - PLANT Series
P
G
™ T
AIR
AIN
List 1 PairGain # 150-1125-01, CLEI: T1MFFB04RA
List 2 PairGain # 150-1125-02, CLEI: T1MFFC04RA
CONTENTS
A. PRODUCT OVERVIEW
1. GENERAL
B. INSTALLATION
8
CAUTION
This product incorporates static sensitive components.
Proper electrostatic discharge procedures must be
followed.
Q
I
UICK
NSTALLATION GUIDE FOR
ECHNOLOGIES
MODEL HRE-421 Issue 1
PAGE
H
G
™ R
I
AIN
2
2
2
3
3
3
3
4

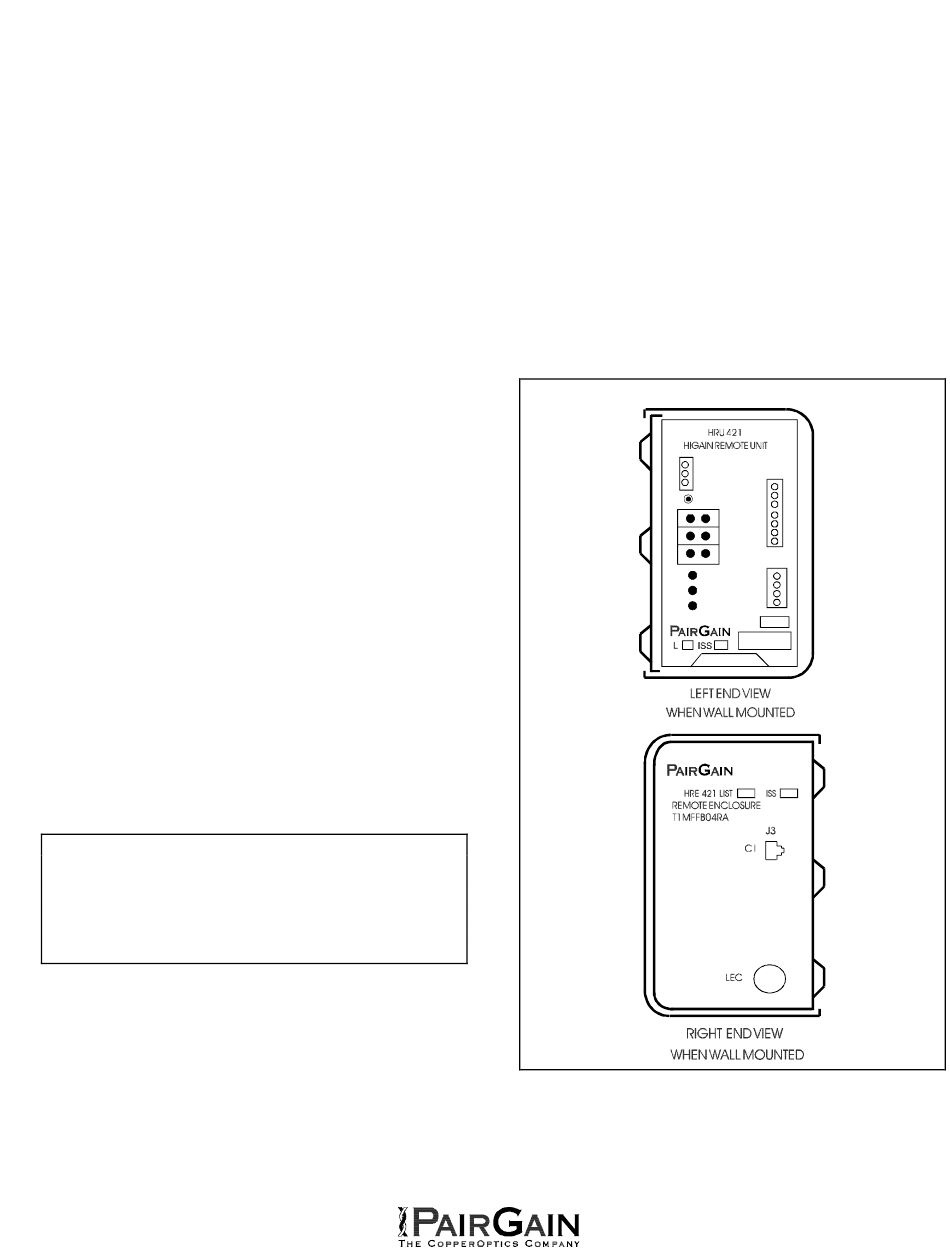

Figure 1. Left and right view of HRE 421, List 1
Enclosure.
Section 100-421-100
August 15, 1995
E
EMOTE
NCLOSURE
Revision 05
Page 1
Advertisement
Table of Contents
Related Manuals for CopperOptics PairGain HiGain HRE-421
Summary of Contents for CopperOptics PairGain HiGain HRE-421
- Page 1 PAIRGAIN TECHNOLOGIES Section 100-421-100 Technical Practice Revision 05 Engineering - PLANT Series August 15, 1995 UICK NSTALLATION GUIDE FOR ™ T ™ R ECHNOLOGIES EMOTE NCLOSURE MODEL HRE-421 Issue 1 List 1 PairGain # 150-1125-01, CLEI: T1MFFB04RA List 2 PairGain # 150-1125-02, CLEI: T1MFFC04RA CONTENTS PAGE A.
- Page 2 Section 100-421-100 Revision 05 1. DESCRIPTION AND FEATURES All wiring external to the product(s) should follow the provisions of the current edition of the National 1.01 This Data Sheet describes installation of the Electrical Code. HiGain HRE-421 Mounting Enclosure for HRU-412 Remote Units.
- Page 3 Section 100-421-100 Revision 05 4. TECHNICAL ASSISTANCE 6. MOUNTING 4.01 PairGain Technical Assistance is available 6.01 See Figures 1 and 2. Select a location for wall mounting the unit which will allow 24-hours-a-day, 7-days-a-week by contracting PairGain’s Customer Service Engineering group at sufficient access to wiring connections on the right one of the following numbers: and indicators, test jacks, etc., on the left.
- Page 4 Section 100-421-100 Revision 05 7.04 Current feed jumpers: See Figure 4. an input to HiGain. That on TD is an output from HiGain. The port requires only pins 2, 3 and 5 to be List 1 & 2 HRU Connections: When the List 1 connected.
- Page 5 Section 100-421-100 Revision 05 Figure 3. Component Locations. Figure 4. TB1 pin assignments. Page 5...
- Page 6 Section 100-421-100 Revision 05 Figure 5. List 1 RJ-48C Pin Assignments. Figure 6. List 2 RJ-48x Pin Assignments. Figure 7. RS-232 Pin Assignments. Copyright © 1995, PairGain Technologies, Inc. PairGain and HiGain are trademarks of PairGain Technologies. Page 6...
