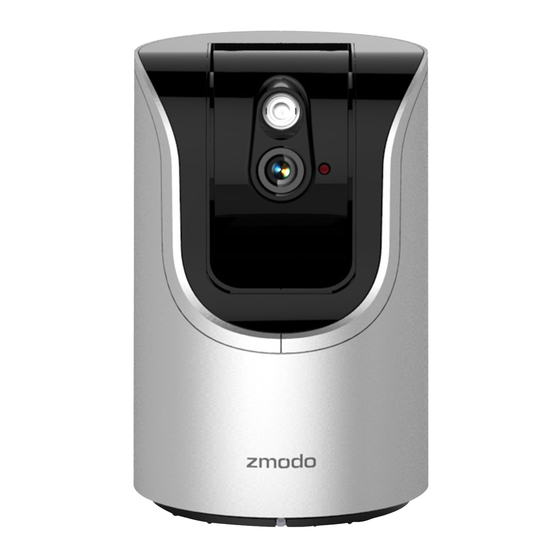

ZMODO ZH-IZV15-WAC Smart Pan & Tilt Camera Manual

Status Indicator Guide

Solid green
The camera is powering on.

Solid blue
The camera has successfully connected to the WiFi network.

Blinking green
The camera is ready for SmartLink setup.

Blinking blue
The camera is connecting to the WiFi network. Please do NOT turn off or unplug the camera.

Solid red
The camera can't connect to the WiFi. Why?

You may have entered the password incorrectly. Try reentering your WiFi password.

You may not have a working internal connection. Check to see if your router is connected to the Internet. Try resetting your camera by pressing the reset pinhole on the bottom of the camera. Hold the button until the light turns blinking green. Then begin the setup procedure again.

Having difficulty?
Please visit our support page for more instructions, troubleshooting, and other resources:

http://www.zmodo.com/supports

Mounting the Camera

Set up the camera and find the best mounting location based on the live view from your smartphone. Make sure that your camera is within range of your WiFi network.

1. Line the camera's mounting bracket against the wall and mark the appropriate holes. Drill two holes slightly smaller than the wall anchor and use a hammer to gently insert the anchors into the wall. Insert the screws into the anchors.

2. Take the PT camera and line it up to the bracket as shown, using the provided screws to fasten the camera to the mounting bracket.

3. After you've attached the bracket to the camera, slide the bracket onto the two screws that you inserted into the wall in Step 1


MeShare App Interface

My MeShare Interface

1. Enter the device's live view.
2. View captured alarm snapshots.
3. Invite your family or friends to view the clips of moments.

Live view Interface

4. Access device settings.
5. Record videos directly onto your phone. Tap once to record, and tap again to stop recording.
6. Capture photos directly onto your phone.
7. Activate the push-totalk function.
8. Enable / disable audio.
9. Change the display resolution.
10. Enter the Pan Tilt Control Interface.

Pan Tilt Control Interface

11. Rotate the camera by using the control stick.

Viewing & Recording Options

• Local Recording (microSD Card not included)

Record continuous footage by inserting a microSD card (up to 64GB) into the corresponding port on the camera (please see the diagram on the box).

Note: You will need to format the microSD card in the MeShare app after inserting it. You can do so through the device settings menu.

• Now compatible with MeShare!

We have partnered with MeShare to bring you optional cloud services! The MeShare Cloud Service (MCS) allows you to:

• Record continuously and store the footage on our secure cloud servers.
• Create and save video clips from your recordings.
• Access your playback footage and clips from any location with Internet connection.
• Share recorded footage and clips with family and friends.
• Access more smart features in the future!

Visit www.meshare.com/cloud for more information on plans and features.

• MeShare Web App

You can also view your device on any computer using MeShare's free web app. Simply use your MeShare username and password and log in to user.meshare.com.

Camera Setup

Congratulations! We are excited to welcome you to the next generation of smart technology. Follow the steps below to set up your camera. To get started, all you need is a smartphone and WiFi:

1. Connect your Android^TM phone or iPhone^® to the WiFi network that you want your camera to use. Make sure that you know the password to connect to this network.
   System Requirements: Android™ (v.4.0 or newer) or iPhone^®, iPad^®, iPod touch^® (v.7.0 or newer),a password-protected 2.4GHz WiFi network.
2. Download and install the 'MeShare' app from Google Play^TM or the App Store^TM. Launch the app and sign up for a free MeShare account.

3. Log in and press the Add Device option located on the bottom of the screen, and follow the onscreen instructions to complete your setup!
   Note: Plug the power adapter into the power input located at the bottom of the camera.
