OXO Brew 8 Cup Coffee Maker Manual

A Note About Safety

IMPORTANT SAFEGUARDS
Read all instructions.
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions. Use this product only as described in this manual.
• Keep the packaging material (cardboard, plastic, etc.) out of the reach of children (danger of asphyxiation or injury).
• Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled hot liquid.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or Coffee Maker in water or other liquid.
• Children should be supervised to ensure that they do not play with the appliance.
• Unplug Coffee Maker from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
• To prevent scalding, do not open brew basket lid, attempt to dislodge a potential clog, or otherwise touch the brew basket area until Coffee Maker has sufficiently cooled. Scalding may occur if the lid is removed during brewing cycles.
• Coffee Maker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Contact OXO Customer Service at (800) 545-4411. Do not return to store.
• The use of accessory attachments not recommended by OXO may result in fire, electric shock, or injury to persons.
• Use only the carafe provided with the Coffee Maker to capture brewed coffee when in Carafe mode.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to the off position, then remove plug from wall outlet.
• The coffee carafe is designed for use with this appliance. It must never be used on a range top or in a microwave oven.
• Do not put any substances other than water, descaling products, or coffee grounds into the Coffee Maker. Do not use Coffee Maker to cook or prepare other liquids or foods.
• Do not use appliance without lid properly placed on carafe.
• Do not touch internal parts while Coffee Maker is brewing.
• Do not rotate or remove carafe or brew basket while brewing coffee.
• This appliance is intended for household use only.
  Do not use appliance for other than intended use. Do not use outdoors.
  To reduce the risk of fire or electric shock, do not remove the bottom cover. Doing so will void the warranty. No user-serviceable parts are inside. Repair should be done by authorized service personnel only.
  Shock Hazard:
  This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet. Do not plug this appliance into an outlet with a voltage other than specified on the bottom of this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• To avoid an electrical circuit overload, do not use any high wattage appliance on the same circuit as this appliance. This Coffee Maker is not intended for use by children, persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have received supervision or instruction concerning use of the appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS

WARNING!
SHOCK HAZARD
ONLY FOR USE WITH 110V AC OUTLET.
DO NOT USE ADAPTER.
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN DEATH, FIRE OR ELECTRICAL SHOCK.

WARNING! RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN
WARNING, TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

This symbol alerts you to important operating and service instructions.
This symbol alerts you to the risk of fire or electric shock in the accompanying message.

Register your product at oxo.com/productregistration for updates and other relevant information.
Although we appreciate registration, it is not required. As part of our privacy policy, we never sell or give away your information.
If you have any trouble with the product during the warranty period, do not attempt to return it to a retail store. Instead, please email info@oxo.com or call (800) 545-4411.

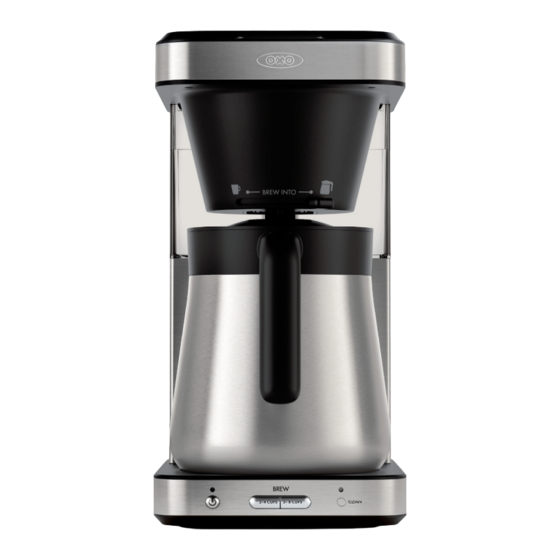

Meet Your Coffee Maker

1. Rainmaker™ Showerhead


2. Large Filter


   Brew Basket


3. Mug/Carafe Mode Switch
4. Water Tank
5. Stainless Steel Carafe
6. Brew Cycles
7. Power
8. Reversible Well Cover and Platform


9. Clean Cycle

Coffee Scoop

Optional Single-Serve Accessory: optimizes flavor when brewing 2-4 cups
Kalita Wave Filter 185


Single-Serve Accessory

Use the Accessory and wave filter inside the Brew Basket for single-serve brewing.
The Single Serve Accessory was designed for brewing 2–4 cups into the carafe or directly into a mug. Its compact size and shape changes the way the brewing water and grounds interact during the extraction, meaning the Accessory will draw out different nuanced characteristics of your favorite coffee.

Before You Begin

1. Remove all packaging
2. Clean and wash all parts
   Do not use abrasive pads, harsh chemicals or spray cleaners. Carafe is not dishwasher safe.
3. Plug in Coffee Maker
   We selected a short cord for this Coffee Maker to reduce the hazards of becoming tangled in, or tripping over a longer cord. If you need to use a longer cord, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of Coffee Maker. Make sure the extension cord is arranged so that it cannot be pulled on by children or tripped over.
4. Run Water-Only 5-8 Cup Brew Cycle
   Fill water tank to MAX fill line.

A Note About Water

Your Coffee Maker uses all of the water you put in the tank every time you brew. Add only as much water as you need for your coffee. For example, if you want to make 3 cups of coffee, only fill the water tank to the 3 cup fill line.
Brew tip: If you're brewing a single mug, use your mug to measure the water and fill the water tank for a perfect cup.
Note: For best results, always use filtered water. Do not use distilled water.

Water/Coffee Ratio

OXO recommends using approximately 8 grams of medium-ground coffee per cup (5 fl oz). Coffee dosage recommendations are based on the Specialty Coffee Association (SCA) Golden Cup Standard designed for optimal extraction and strength.
1 OXO scoop = approximately 8 grams of medium-ground coffee.

Brewing into Carafe

1. Adjust Mug/Carafe Mode Switch
   Carafe mode activates drip-free valve. Ensure switch is pushed all the way to the right.

2. Snap in Brew Basket
   Ensure brew basket is securely in place and handle is down, then add large paper filter and ground coffee.

3. Add Filtered Water to Water Tank
   Fill to number of cups desired. Your Coffee Maker will use all of the water you put in the tank for every brew cycle. Always fill between the MIN and MAX fill lines.

   Always align the opening and the spout to prevent leaking. The lid features a convenient marking to indicate the opening.
4. Press Power then Brew Button to Start
   When brewing is complete, Coffee Maker will chime and Brew button light will turn off. Power light will remain on for 15 minutes.
   Do not open the brew basket lid during brew cycle

Brewing into Mug

1. Adjust Mug/Carafe Mode Switch
   Mug Mode will open valve to brew into any cup or mug. Ensure switch is pushed all the way to the left.

   If the switch is not on Mug mode, the brew basket will not drain and could overflow.
2. Snap in Brew Basket
   Ensure brew basket is securely in place, then add large paper filter and ground coffee.
3. Add Filtered Water to Water Tank
   Never fill above 4 cups (20 fl oz) in Mug mode; only use as much water as your cup or mug can hold. The Coffee Maker will use all water in the tank.
   Tip: Use your mug to measure the perfect amount of water.
4. Place Mug Under Brew Basket
   Turn over well cover to elevate mug with platform, if needed. Well cover can also be removed for taller mugs.
5. Press Power then 2-4 Cup Button to Start
   When brewing is complete, Coffee Maker will chime and Brew button light will turn off. Power light will remain on for 15 minutes.
   Do not open the brew basket lid during brew cycle

Optional Single-Serve Accessory: optimizes flavor when brewing 2-4 cups
Insert wave filter (Kalita 185) into the Single-Serve Accessory.

Place the Single-Serve Accessory directly into the brew basket. Snap brew basket into place.

Add 2-4 cups of filtered water to water tank and press button to brew.

Rinse the Single-Serve Accessory after each use to prevent clogs and / or overflow.

Cleaning & Care

Always unplug your Coffee Maker before cleaning it. Any service or maintenance other than cleaning or descaling should be performed by an authorized service representative. For more information, call OXO Customer Service at (800) 545-4411.

Never immerse the Coffee Maker power cord or plug in water. Do not allow liquid to come in contact with power cord or plug. Doing so can result in electrical shock or death.
To prevent damage to the appliance when cleaning, do not use alkaline cleaning agents, abrasive pads, harsh chemicals, or spray cleaner chemicals when cleaning.

Regular Cleaning
Clean exterior regularly with a damp cloth and wipe dry. Descale your Coffee Maker regularly.

Stain Removal
Remove coffee oil stains in the carafe by soaking overnight with a small amount of dishwasher detergent and water.

Filters
To replace filters for Single Serve Accessories, look for Kalita Wave Filter 185. To replace large filters, look for basket filters labeled as 8-12 cup filters.

Hand Wash
carafe and lid with mild detergent after use. Rinse thoroughly. Carafe and lid are not dishwasher safe. Placing carafe in dishwasher will compromise the vacuum insulation.

Removable Parts
are all top-rack dishwasher safe.

Descaling

The Clean button light will turn on after every 90 cycles as a helpful reminder to descale. Your Coffee Maker will not work properly if it is not descaled regularly. The warranty is voided if descaling is not carried out in accordance with these instructions. Using filtered water will help prevent mineral buildup.

1. Fill Water Tank
   Add descaling solution and filtered water to the tank up to the MAX fill line. The mixture should not exceed the MAX fill line. Make sure empty carafe is in place with lid fully screwed on. Remove any filters or the Single Serve Accessory from the brew basket. Ensure brew basket is securely in place.
2. Start Clean Cycle
   Slide switch to Carafe mode. Press Power, then press the Clean button to start the clean cycle. When clean cycle is complete, machine will chime and Clean button light will turn off. To cancel the cycle, press the Clean button or Power.
3. Start Rinse Cycle
   After descaling, fill the water tank to the MAX fill line and run a 5-8 cup water-only brew cycle. Discard water before next use.

Notes on Descaling

Scale is a naturally occurring buildup of mineral deposits. How often you should descale your Coffee Maker depends on water hardness.
Buy descaling solution where household cleaning products are sold; follow solution's recommended use.
Clean cycle will take around 25 minutes. Time will vary based on amount of mineral deposit. Allow cycle to finish to ensure machine is fully descaled.

Troubleshooting

For the most up-to-date troubleshooting information, visit oxo.com

Our Guarantee

Two-Year Warranty:
Your OXO Brew appliance is guaranteed by OXO for two years from the date of purchase in the case of any manufacturing defects in materials or workmanship. This OXO warranty is only offered on OXO Brew appliances sold new and utilized in the US and Canada.
The OXO warranty covers all costs related to restoring the proven defective product through the repair or replacement of any defective part and necessary labor so that it conforms to its original specifications. A replacement product may be provided instead of repairing a defective product. OXO's exclusive obligation under this warranty is limited to such repair or replacement.
A receipt indicating the purchase date is required for any claims, so please keep it in a safe place. We recommend that you register your product on our website, www.oxo.com/productregistration. Although greatly appreciated, the product registration is not required to activate any warranty and product registration does not eliminate the need for the original proof of purchase.
The warranty does not cover damages resulting from misuse or abuse of the product and/or uses inconsistent with this Instruction Manual, attempts at repair, theft, use with unauthorized attachments or failure to follow the instructions provided with the product.
The warranty becomes void if attempts at repair are made by nonauthorized third parties and/or if spare parts, other than those provided by OXO, are used. You may also arrange for service after the warranty expires at an added cost.
For questions, returns, repairs or warranty claims within the U.S., please visit www.oxo.com or contact OXO Customer Service at (800) 545-4411. We will be glad to assist you.
For customer service, claims, or questions on sales in Canada, OXO Customer Service will gladly put you in touch with the appropriate individuals.
This warranty gives you specific legal rights, and you may have other legal rights which vary from state to state, country to country, or province to province. The customer may assert any such rights at their sole discretion.

CONTACT INFO:
If you have any trouble with the product during the warranty period, do not attempt to return it to a retail store. Instead, please visit us online at www.oxo.com or contact us here:

OXO U.S. Customer Service
Hours: Monday–Friday, 8:00am – 5:00pm (ET)
Phone: (800) 545-441 1
Mail: OXO International, Inc.
1331 S Seventh St., Building 1,
Chambersburg, PA 17201-9912

Outside the U.S.
Please contact your local distributor or email info@oxo.com
