Blueair Blue Pure 211 Manual

Blue PURE 211

SAFETY

General safety instructions

Remember, Pure 211 is an electrical appliance. Please read these safety instructions carefully before use and take the necessary precautions to reduce the risk of fire, electric shock or injury. The Pure 211 warranty applies only if the unit is used according to these instructions.


Indicates a hazardous situation that, if not avoided, could result in death or serious injury.


Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

General


To avoid hazardous conditions, only the manufacturer, a service center authorized by Blueair or similarly qualified persons shall replace the power cord, if damaged.

  • Use the power cable provided with your Pure 211 unit to plug directly into an appropriate, electrical outlet. (Refer to the rating label on your unit).
  • Do not alter the plug in any way.
  • Remember to always disconnect the power supply before servicing the unit.
  • Do not use the unit if the power cable or plug is damaged or malfunctions in any manner.
  • Keep the power cable away from heated surfaces.
  • Do not sit on, stand or climb onto the unit or use the unit either as a table or for storage.
  • Do not place any objects on top of the unit, block air outlets or intakes, or allow foreign objects to enter the unit as this may cause an electric shock or damage the unit.

Intended Use

  • Supervise children to ensure that they do not play with the appliance.
  • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

SYSTEM OVERVIEW

Blueprint

SYSTEM OVERVIEW

  1. Air outlet
  2. Ion chamber (Air stream optimizer)
  3. Inner wall
  4. Fan
  5. Motor
  6. Fan base
  7. Protective grill
  8. Release button for filter
  9. Pre-filter
  10. Particle filter or Particle + Carbon filter
  11. Air inlet 360°

WHAT'S IN THE BOX

Pure 211 package

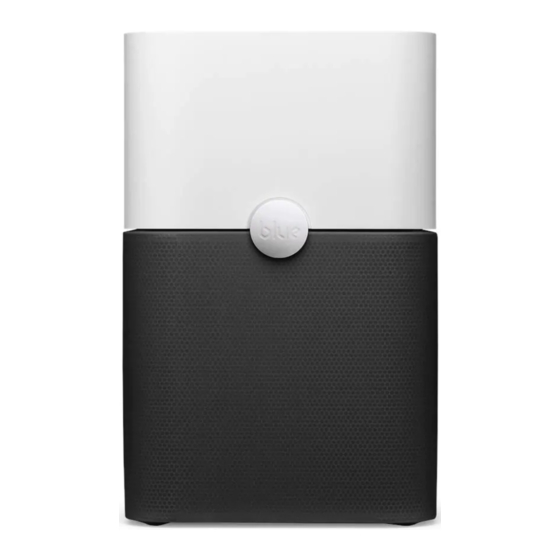

The Pure 211 air purifier
The Pure 211 air purifier

Particle or Particle + Carbon filter
Particle or Particle + Carbon filter

Fabric pre-filter (Two filters included)
Fabric pre-filter (Two filters included)

Options

  • A Particle filter or Particle + Carbon filter.
  • Choice of color for the fabric pre-filter.

USAGE

Placement

Place Pure 211 in an upright position on the floor in your room. Be sure to place the unit where it won't be knocked over by any person or pet in the household.

Using Pure 211 in your bedroom:
After 7 seconds the light automatically dims to 10% of the full effect.

Place the unit in a location where air can circulate freely in, out and around the unit.
Do not place the unit closer than 10 cm (4") from another object.
Do not place the unit directly on or against soft furnishings such as bedding or linen.
Do not place the unit near sources of heat, such as radiators, fireplaces or ovens.
Do not place the unit near wet areas, such as bathrooms or laundry rooms where it may come into contact with water.
Do not place the unit outdoors.

SET UP

Getting started

  1. Gently press the buttons on both sides of the unit simultaneously.
    Getting started Step 1
  2. Remove the top portion of the unit.
    Getting started Step 2
  3. Then attach the fabric pre-filter. To ensure a smooth fit, pull it carefully over the main filter.
    Getting started Step 3
  4. Next, reposition the top of the unit onto the bottom and make sure it clicks into place.
    Getting started Step 4
  5. Plug in your Pure 211 air purifier.
    Getting started Step 5
  6. Press the button to turn the unit on. The unit automatically sets itself to the recommended energy-efficient operating speed.
    Getting started Step 6

ON/OFF AND OPERATING SPEEDS

On/off and speed control

On/Low
Press once to turn the unit on and set it to the recommended energy-efficient speed.

On/Low

Medium
Press twice to set to medium speed.

Medium

High
Press three times to set to high speed.

High

Off
Press a fourth time to turn the unit off.

Off

Moreover, Pure 211 has an Autostart feature. This means that Pure 211 will automatically restart at the set speed if a power failure occurs, the unit is unplugged or a power switch timer is used.

Filters

General information:
The unit is delivered with a fabric pre-filter and either a Particle filter or a Particle + Carbon filter. These filters remove the following pollutants:

Particle filters remove:

PM2.5
PM2.5*

Dust
Dust

Pollen
Pollen

Pet dander
Pet dander

Mold
Mold

Dust mites
Dust mites

Bacteria
Bacteria

Particle + Carbon filters remove all the above pollutants, plus:

VOC
VOC

Smoke
Smoke

Chemicals
Chemicals

Cooking odors
Cooking odors

*Particle matter smaller than 2.5 microns


Use only genuine Blueair filters to ensure proper function of your unit and to qualify for full warranty coverage.

Button control functions

Change filter indicator
When the indicator turns yellow (after 5 months of operation), it's time to order a new filter.

Change filter indicator

Change filter
When the indicator light turns red (after 1 extra month of operation), you should change the main filter.

Change filter

Reset filter alert
Press the button for three seconds to reset the filter alert.

Reset filter alert

You can change the filter before the indicator light turns red, i.e. when it first turns yellow. In this case, just reset the unit after changing the filter and use for another 6 months. (see "Change the main filter")

Vacuum or wash the pre-filter

Occasionally vacuum the exterior of the fabric pre-filter to remove dust. Before removing the fabric pre-filter, unplug the unit.

  1. Gently pull and detach the pre-filter from the lower half of the unit.
    Vacuum or wash the pre-filter Step 1
  2. Wash the prefilter on a gentle, low temperature cycle in the washing machine.
    Vacuum or wash the pre-filter Step 2
  3. Before replacing the fabric pre-filter, gently press the release buttons on both sides of the unit until you hear a click.
    Vacuum or wash the pre-filter Step 3
  4. Lift off the top of the unit.
    Vacuum or wash the pre-filter Step 4
  5. Re-fit the fabric pre-filter over the bottom part of the unit.
    Vacuum or wash the pre-filter Step 5
  6. Replace the top of the unit, pressing firmly until you hear a click.
    Vacuum or wash the pre-filter Step 6
  7. Plug in the unit and touch the button to restart.

Change the main filter

Be sure to unplug the unit before changing the main filter.

  1. When the indicator light glows red, it's time to change the main filter.
    Change the main filter Step 1
  2. Turn off the unit and unplug it.
    Change the main filter Step 2
  3. Gently press the release buttons on both sides of the unit until you hear a click.
    Change the main filter Step 3
  4. Lift off the top of the unit.
    Change the main filter Step 4
  5. Gently pull and detach the fabric pre-filter from the old main filter and fit the pre-filter onto the new main filter.
    Change the main filter Step 5
  6. Firmly press the top of the unit onto the replacement filter until you hear a click.
    Change the main filter Step 6
  7. Plug in the unit.
    Change the main filter Step 7
  8. Restart the unit by pressing the Pure 211 button for three seconds, and then release it.
    Change the main filter Step 8
  9. This lets Pure 211 know that you have changed the filter. The indicator light flashes 3 times and then changes from red to white.
    Change the main filter Step 9

CARE AND MAINTENANCE

General care

Take good care of your Pure 211 to ensure that it delivers optimal performance.

  • Vacuum the pre-filter occasionally to remove dust, or wash it on a gentle, low temperature cycle in the washing machine.
  • Change the main filter every six months, depending on the operating conditions.
  • When the unit is open to change the filter, vacuum any dust that may have accumulated inside the unit.
  • Occasionally wipe the top of the unit with a dry dust cloth.

SPECIFICATIONS

Certified ratings as stated are based on U.S. version models (120VAC, 60Hz) with Blue Particle Filter. Ratings may be affected by use of other Blue filter models.

Room size: 50m² (540 sq. ft.)
Clean Air Delivery Rate (CADR)
Filter replacement indicator Yes
On/Off timer No
Speeds 1-2-3-off
Dimensions Height: 517 mm (20.4 in)
Width: 330 mm (13 in)
Depth: 330 mm (13 in)
Weight: 5.7 kg (13 lbs)
Airflow rate 230 - 620 m3/h (135 - 365 cfm)
Air exchange1 5 per hour (50 m2 or 540 sq.ft.room)
Power usage3 30 - 61 W
Noise level 31 - 56 dB(A)
Average filter service life Six months2
Warranty Local regulations

Blue is available in different colors for model Pure 211. The colored fabric works as a pre-filter.
1Air changes per hour are calculated on the recommended room size, assuming 8-foot (2.4-m) ceilings. For smaller rooms, the air changes per hour will increase.
2Depending on air quality in the area of use, the recommended six-month filter lifetime may be longer.
3The available electrical power voltage and frequency affects the power consumption of the unit. the power consumption might therefore be different from the stated value.
