ThermoPro TP-67 Wireless Weather Station Manual

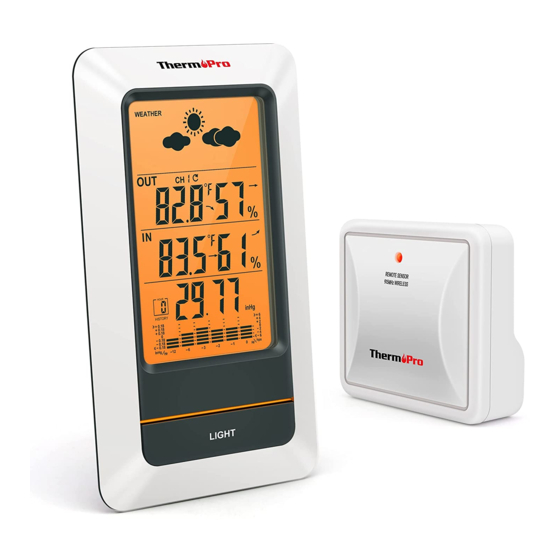

Components

1. One base station unit (Receiver)
2. One outdoor remote sensor (Transmitter)
3. USB charging cable

* Remote sensor is designed to be rain-proof, it's preferable to place the remote sensor in a dry location that avoids direct rainfall and sunlight for a more accurate measurement.

Product Features and Specification

1. LCD display: Displays the current outdoor temperature, indoor humidity/temperature, barometric pressure including its history and the weather forecast.
2. Indoor Temperature range: -4°F ~ 158°F (-20°C ~ 70°C), humidity range: 10% ~ 99%.
3. Outdoor Temperature range: 58°F ~ 158°F (-50°C ~ 70°C).
4. Temperature tolerance: +/- 2.0°F (+/- 1.1°C).
5. Humidity tolerance: ±2% from 30% to 80%; ±3% below 30% and above 80%.
6. Low battery indication for both base station and remote sensor.
7. Backlight LCD display.
8. Tabletop and wall mountable design; Base is detachable.
9. Rain proof design for remote sensor.
10. Power source: 2*AAA 1.5V batteries for base station and 18650 lithium 3.7V battery for remote sensor.

Base Station (Receiver)

1. Large LCD display
2. Weather Forecast
3. Outdoor temperature
4. Base Station Low Battery Icon
5. Indoor Temperature
6. Backlight Button
7. Remote Low Battery Icon
8. Indoor humidity
9. Barometric Pressure
10. inHg/mb
11. °C/ °F
12. WEATHER
13. Wall hanging hole
14. Battery Compartment
15. HISTORY
16. MAX/MIN
17. CHANNEL

Buttons

1. LIGHT: Press to turn on/off display backlight.
2. WEATHER: Press to select one of five weather conditions (sunny, partially cloudy, cloudy, rainy, and snow) to best reflect the current weather condition.
3. °C/°F: Press to select temperature display unit between °C or °F.
4. inHg/mb: Press to select barometric pressure display unit between inHg or mb (hPa).
5. HISTORY: Press to display the record of barometric pressure for the past 12 hours.
6. MAX/MIN: Press once to display the maximum and minimum temperature and humidity since last reset. Press and hold to clear the MAX/MIN records.
7. CHANNEL: Press once to display the temperature readings from up to 3 outdoor remote sensors; Press and hold to enter the synchronization mode.

Temperature & HUMIDITY Trend

1. indicates the temperature & humidity is in an increasing trend.
2. indicates the temperature & humidity is in an no change trend.
3. indicates the temperature & humidity is in a decreasing trend.

Outdoor Remote Sensor (Transmitter)

Note: To access CHANNEL SELECTOR and RESET buttons, you need to unscrew the cover as per below Figure.

CHANNEL Selector (1,2,3): Slide to set Channel 1,2 or 3.
RESET: Press once to reset the remote sensor.
: Press and hold for 2 seconds to turn ON/OFF the unit. (ON: Flash 1 time, OFF: Flash 3 times)

Charging Remote Sensor

1. Remote sensor: A built-in rechargeable lithium battery is installed in the remote sensor. Although there could be some power in the rechargeable battery before the unit leaves our manufacturing facility, we always recommend to fully recharge the remote sensor before use by following the steps below:
   1. Note, the package does not INCLUDE a wall adapter. Simply use any cellphone wall charger with USB socket to charge the battery. Connect the charging cable (provided in the package contents) into your wall adapter and take the other end of the plug and insert into the charging socket located on the back of the remote sensor;
   2. Plug the wall charger into a standard AC outlet
   3. The red light on the remote sensor will light up
   4. Charge the remote sensor for at least 4 hours until the light changes from red to green which indicates charging is complete.

Low Battery Warning

If the battery power (base station or remote sensor) is low, there will be low battery icon showing on the base station display. If the low battery icon for base station is displayed, please replace the batteries with new batteries. If the low battery icon for remote sensor is displayed, please charge the remote sensor as soon as possible.

Display Unit Selection

1. Press °C/°F button on the back of the base station to change the temperature display unit between °C or °F.
2. Press inHg/mb button on the back of the base station to change the barometric pressure display unit between inHg or mb (hPa).

Synchronize Remote Sensors with The Base Station

1. Place the remote sensor near the base station.
2. Insert the batteries into the base station, the RF indicator (located on the upper left of the outdoor temperature display section) will begin to flash for 3 minutes, indicating that the base station is in synchronization mode and waiting for remote sensors to be registered.
3. Set the CHANNEL selector (on the back of the remote sensor unit) to position 1 or 2 or 3. The unit is pre-set to Channel 1 and you can always leave it unchanged unless you have purchased more than 1 remote sensor.
4. Press and hold ON/OFF button on the back of the remote sensor for 2 seconds to turn on the remote sensor. Then wait for a moment until the temperature of the remote sensor is displayed on the base station which indicates the synchronization is complete.
5. If the synchronization is not successful after 3 minutes since the batteries were inserted into the base station and the RF indicator no longer flashes, press and hold the CHANNEL button on the back of the base station for 3-4 seconds until the RF indicator begins to flash again, setting it back into synchronization mode;
6. If you have additional remote sensors, repeat the above steps to synchronize the additional remote sensors (up to 3 remote sensors can be registered with one base station). Please note the additional sensors should be set to a different channel.
7. If you have registered more than one sensor, press the CHANNEL button on the base station to select the remote channel you want displayed permanently on the base station. If wanting to observe all channels, press the CHANNEL button until you observe a circular arrow on the base station LCD display under the channel number, the unit will auto-scroll, changing from channel to channel every 5 seconds.

Thermometer

1. Once the remote sensor and the base station are synchronized, the indoor temperature/humidity and outdoor temperature will both be shown the base station display.
2. Maximum & Minimum Recorded Temperature & Humidity
   1. Press MAX/MIN/CLEAR button once to display the highest indoor temperatures/humidity and outdoor temperatures recorded. MAX is shown on the display.
   2. Press MAX/MIN/CLEAR button again to display the lowest indoor temperatures/humidity and outdoor temperatures recorded. MIN is shown on the display.
   3. To clear and reset the max/min records, press and hold MAX/MIN/Clear for 3 seconds.
3. Temperature and Humidity Trend: there are 3 types of icon on the base station display:
   indicates the temperature and humidity are in an increasing trend.
   indicates the temperature and humidity are in a no change trend.
   indicates the temperature and humidity are in a decreasing trend.

Barometer

1. Press the HISTORY button on the back of the base station to show the actual barometric pressure value in the past 1 to 12 hours.
2. Barometric Pressure Trend: on the bottom of the display, the graph shows the barometric pressure change in the last 12 hours.

Weather Forecast

The initial current weather condition should be set before using the weather forecast feature to allow for the weather station to accurately forecast the weather for the upcoming 12-24 hours. Press the WEATHER button on the back of the base station and the weather symbols on the top of the screen will change. Choose one of five weather symbols (sunny, partially cloudy, cloudy, rainy, snow) that best reflect the current weather condition.

Sunny	Partially Cloudy	Cloudy	Rainy	Snow

Interpreting the weather forecast symbols

The weather station requires at least 24 hours to acclimatize to local weather conditions. The weather station processes and analyzes the weather patterns including temperature and barometric pressure change for the past 24 hours to determine the forecast. Only then the predicted weather forecast will reflect the actual weather for your immediate area. Until that time has elapsed, the predicted weather forecast may not accurately reflect the actual weather in your immediate area. The weather station will display the symbols to indicate the predicted weather forecast for the next 12 to 24 hours for an area within a radius of approximately 20-30 miles or 30-50 km.

Note:

1. The weather forecasting is approximately 70% accurate. The accuracy rate might be lower in extreme weather conditions. The weather forecasting is for reference and for domestic use only. Do NOT rely on the weather station's weather forecast for any serious matters such as health, business and financial decisions and/or agricultural planning and certainly not for life and death situations.
2. The weather forecast does not display the current weather. It forecasts the weather for the next 12~24 hours.

Place the Base Station and Remote Sensor

1. The indoor base station (receiver) should always be placed in a well ventilated indoor area and located away from vents, heating or cooling elements, direct sunlight, windows, doors, or any other openings.
2. The remote sensor (transmitter) can be placed on a flat surface, indoor or outdoor. Make sure the sensor is within the wireless distance from the base station with minimal obstructions. Although the remote sensor is designed to be rain-proof, it still must be always put in a dry place to avoid direct rainfall.
3. The base station and remote sensor can both be wall mounted.

Purchasing Additional Remote Sensors

The model number of the remote sensor for this unit is TX-3. Additional sensors may be ordered directly from Amazon or ThermoPro by contacting our customer service listed below.

Hints and Tips

If the receiver can't connect to the transmitter, try as following:

• Repeat the synchronization process as described above.
• Relocate the base station or the remote unit until connection is established again.
• Signals from other electronic devices may cause interference. Place the base station and receiver away from these devices.
• If the base station is attached to a refrigerator or a metal object by magnet, the transmission may be shorter. Remove the base station from the refrigerator or the metal object and place the base station and remote sensor as close as possible.

Warnings

• Do not subject the unit to excessive force, shock, dust, temperature or humidity.
• Do not immerse the unit in water.
• Do not remove any screws.
• Do not dispose this unit in a fire. IT MAY EXPLODE.
• Keep unit away from children. The unit or parts of the unit might be a choking hazard.
• Dispose of the unit legally and recycle when possible.

Specifications

1. Transmission frequency: 433 Mhz.
2. Maximum transmit power: 8 mW.
3. Transmission range up to 200 feet in open area. (range maybe shorter based on interference present).
4. Indoor Temperature range: -4°F ~ 158°F (-20°C ~ 70°C).
5. Outdoor Temperature range: -58°F ~ 158°F (-50°C ~ 70°C).
6. Humidity range: 10% ~ 99%.
7. Temperature tolerance: +/- 2.0°F (+/- 1.1°C).
8. Humidity tolerance: ±2% from 30% to 80%; ±3% below 30% and above 80%.
9. Power: 2 X AAA 1.5V for base unit and 18650 lithium battery 3.7V for remote sensor.

Disposal of batteries

Please dispose of your batteries properly in containers especially set up as retailers. Batteries do not belong in the household waste. Dispose of batteries at an approved facility or at your recycling center. Contact your local council if in doubt.

Disposal

You can help protect the environment! Please remember to respect the local regulations. Hand in the nonworking electrical equipment to an appropriate waste disposal center.

FCC STATEMENT OF COMPLIANCE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity

Hereby, the manufacturer declares that this product complies with the basic requirements and applicable regulations of the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU. The complete declaration of conformity can be found at:
https://itronicsmall.com/eu-declaration-of-conformity/

LIMITED ONE-YEAR WARRANTY

ThermoPro warrants this product to be free of defects in parts, materials and workmanship for a period of one year, from date of purchase. Should any repairs or servicing under this warranty be required, contact Customer Service by phone or email for instructions on how to pack and ship the product to ThermoPro. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

CUSTOMER SERVICE

Telephone: 1-877-515-7797(USA & Canada only)
44-203-769-1321(UK)
Email: service@buythermopro.com
Hours: Weekdays 8:00 AM- 8:00 PM EST
1:00 PM - 12:00 PM CET(UK)
