Kanguru FC-RW User Manual

Portable flash card reader
Hide thumbs Also See for FC-RW:
Table of Contents

Advertisement

Quick Links

Download this manual

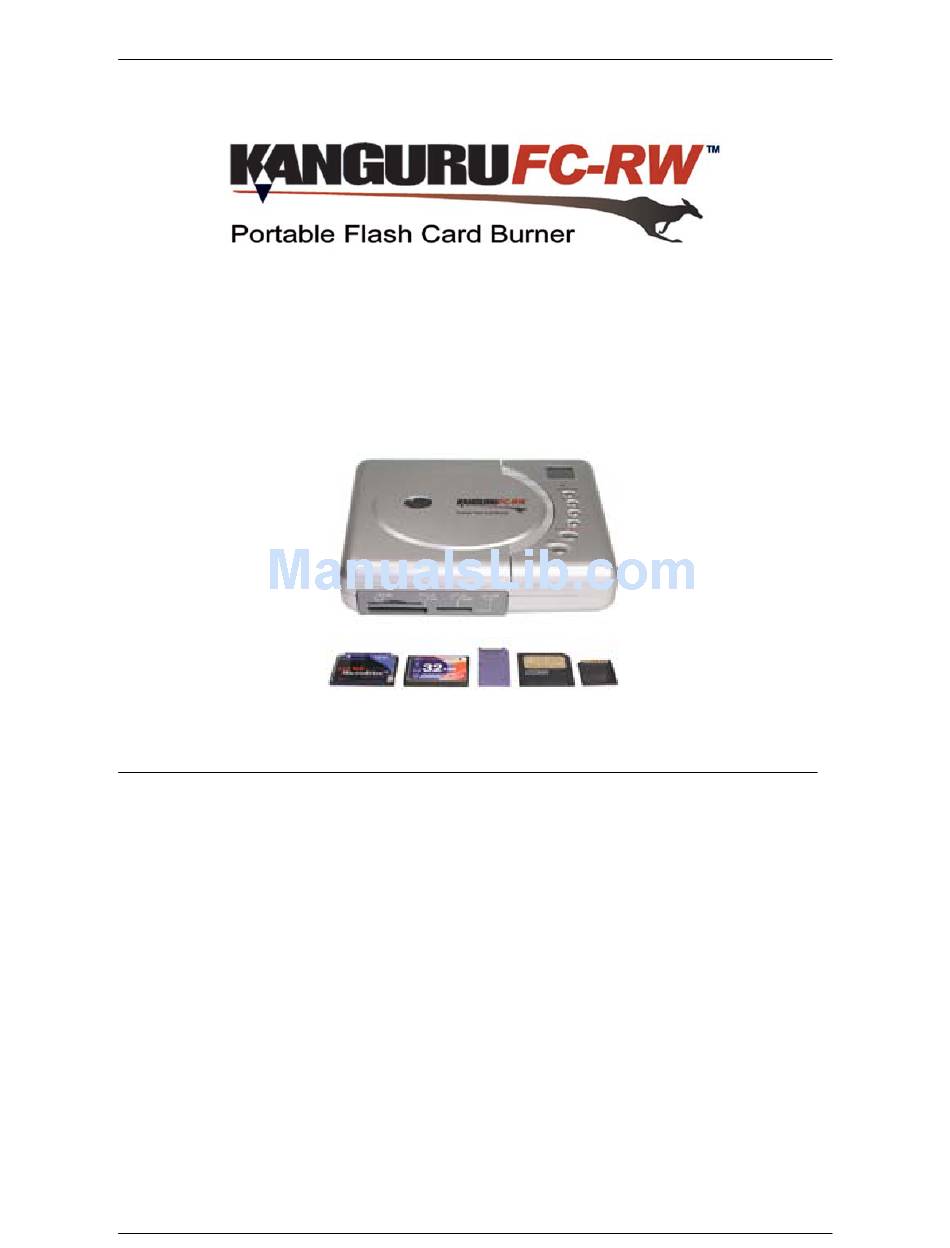

KanguruFCRW
USER'S GUIDE
Copyright 2004, All Rights Reserved.
- 1 -

Advertisement

Table of Contents
loading

Related Manuals for Kanguru FC-RW

Summary of Contents for Kanguru FC-RW

  • Page 1 KanguruFCRW USER’S GUIDE Copyright 2004, All Rights Reserved. - 1 -...

  • Page 2: Limited Warranty

    Machines Corporation. All other brand or product names are trademarks of their respective companies or organizations. Kanguru Solutions will not be held responsible for any illegal use of this product nor any losses incurred while using this product. The user himself is responsible for the copyright laws, and is fully responsible for any illegal actions taken.

  • Page 3: Table Of Contents

    3. Operation—Stand-Alone Basic Operation Mode ... 7 Duplicate and Verify ... 7 Erasing a CD-RW ... 7 4. Operation—USB2.0 CDRW & Card Reader 4. Operation—USB2.0 CDRW & Card Reader ***IMPORTANCE NOTICE***... 8 NEC requires v.2.0.8 or higher ... 14 Driver Installation ... 15 External CDRW...

  • Page 4: Introduction

    • 1 – Driver and Manual CD. • 1 – User registration form. If any of the above items are missing, please call Kanguru Solutions’ Tech Support department at: (508) 376-4245, extension 2 and replacement parts will be shipped to you ASAP.

  • Page 5: Specifications

    AC input 100~240V Power (Adapter): DC output 12V Power consumption: 25 Watt External device: USB 2.0 (for External Card Reader/CD-RW ) Audio output: Phone jack: 0.7Vrms (32 ohms headphone connected) Supports Operating Window98SE/ME/2000/XP, Mac OS X System: Flash Card Format by slot:...

  • Page 6: Product Description

    KanguruFCRW 2. Product Description Top View Front View Rear View Side View - 6 -...

  • Page 7: Operation-Stand-Alone

    7. The unit will display the % of storage left on the CD. 8. Press the “Open” button to release the CD. Note1: Keep the Kanguru FCRW on a flat surface during operation. Do not tilt or pickup the device as it may cause damage to the unit.

  • Page 8: Operation-Usb2.0 Cdrw & Card Reader

    4. Operation—USB2.0 CDRW & Card Reader ***IMPORTANCE NOTICE*** Windows 2000 users: The Kanguru FCRW requires the latest USB2.0 drivers available in Service Pack 3 or above. If your Windows 2000 system is not updated to Service Pack 3 or above, then you can download the update from: http://www.microsoft.com/windows2000/downloads/servicepacks/sp4/default.asp...
  • Page 9 KanguruFCRW 1. Right click on “My Computer” and select “Manage”. Select “Device Manager” from the section on the left. - 9 -...
  • Page 10 KanguruFCRW 2. Select the “Universal Serial Bus controllers” tab, and double-click the “USB Enhanced Host Controller” device. This will display information on the drivers you currently have installed. - 10 -...
  • Page 11 KanguruFCRW 3. Select the “Driver” tab. Your system still may be using the old drivers for your USB2.0 controller. If you do not have the Microsoft driver installed you will need to select the “Update Driver” tab. - 11 -...
  • Page 12 KanguruFCRW 4. Select “Display a list of the known drivers for this device…” and click “Next”. - 12 -...
  • Page 13 KanguruFCRW 5. Windows will display a list of available USB2.0 drivers. Select the “NEC USB Enhanced Host Controller”. Click “Next”. 6. Click “Next” to complete the update. - 13 -...

  • Page 14: Nec Requires V.2.0.8 Or Higher

    Windows 98 users: The Kanguru FCRW requires the latest USB2.0 drivers. You may need to install updated drivers for your USB2.0 controller. There are two sets of updated drivers included on the Kanguru Drivers folder for the NEC and VIA chipsets.

  • Page 15: Driver Installation

    Win98/98SE, 2000, and XP. CDRW drivers are only required for Win98/98SE. 1. Insert the Kanguru Drivers and Manuals mini CD included with this device. 2. Open the” KanguruFCRW” folder and open the “Drivers” folder. 3. Double-click on the “Setup.exe” file to begin the installation.

  • Page 16: Understanding The Lcd

    KanguruFCRW 5. Understanding the LCD LCD during Basic Duplication 1. When flash cards are inserted they will be displayed in the LCD. (Fig1.) Fig 1 . 2. When you Press the “Record” button to begin the duplication, the LCD will display the source info and the remaining % to completion.

  • Page 17: Lcd During Duplicate And Verify

    KanguruFCRW LCD during Duplicate and Verify 1. During a Duplicate and Verify session the LCD will display the same information as a normal duplication up until the verification begins. When the duplication is complete the LCD will start the % over from 00 to 99. (Fig4a.) When this function is finished the LCD will display a successful duplication or an error code for a failure.

  • Page 18: Error Codes

    KanguruFCRW Error Codes • Code 1: No CD is detected • Code 2: Not an Audio CD • Code 3: Play Error • Code 4: No Memory Card • Code 5: Format Not Supported • Code 6: Read Flash Error (FAT Error) •...

  • Page 19: F.a.q

    A2. Yes, you can copy different types of Flash Cards to the same CD until the disc is full. The Kanguru FCRW will display the % of storage left on the CD- R/RW disc. The Flash Cards must be copied individually and must be within the capacity left on the CD.

  • Page 20: Troubleshooting

    You may need to install a new set of USB2.0 drivers from Microsoft. Please refer to the installation section of this manual for detailed instructions. When I connect the Kanguru FCRW to my PC I only have access to the CD- RW drive but not the Card Reader.

  • Page 21: Warranty

    1 year from the date of purchase. This warranty does not apply if, in the judgment of Kanguru Solutions, the product fails due to damage from handling, accident, abuse, misuse, or if it has been used in a manner not conforming to the product’s instructions, has been modified in any...
