Please consult below checklist for all the components.
Video Doorbell
USB Cable
User Guide
Indoor Chime
Screw & Tools
Double-sided Tape

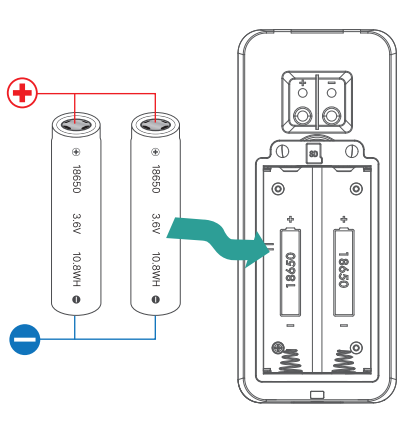

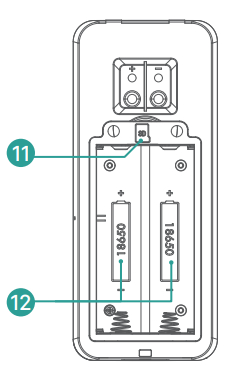

The batteries are pre-installed in the doorbell. If you have taken out the batteries, please note the electrodes when installing batteries. Please insert the batteries with positive poles upward!
NOTE: Improper battery installation will cause damage to the internal components and may result in serious injury.
The batteries inside the doorbell are not fully charged in accordance with transportation safety regulations.

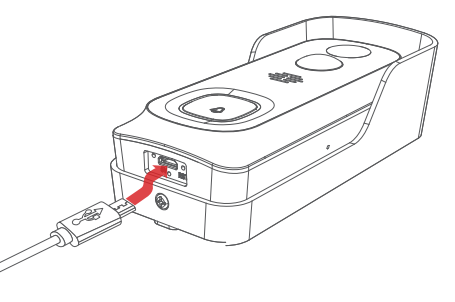

Please charge the batteries with a USB compatible wall charger (not included) and the provided USB cable for about 8~10 hours prior to Wi-Fi configuration and installation.
Download and install the 'CloudEdge' app from Google Play™ or the App Store™. The App is also available by scanning the QR codes on the right, using your QR code scanner in your smart phone.
NOTE: Google Play™ is a trademark of Google Inc. App Store™ is a service mark of Apple Inc.
IOS:

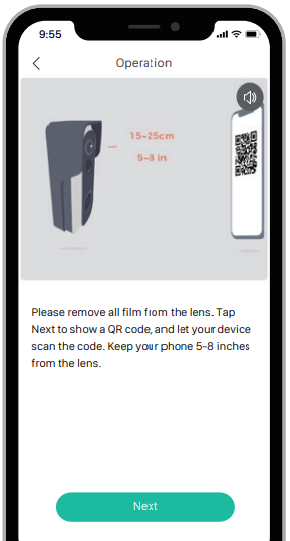

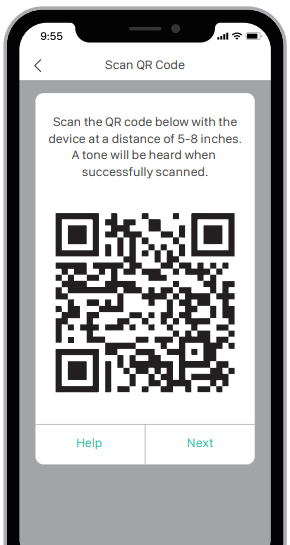

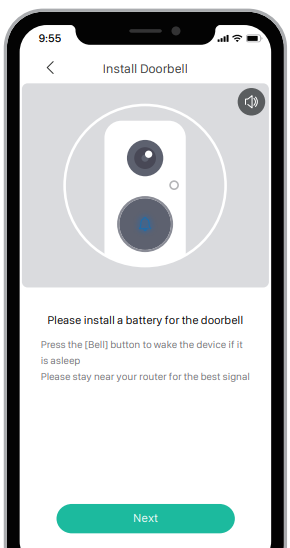

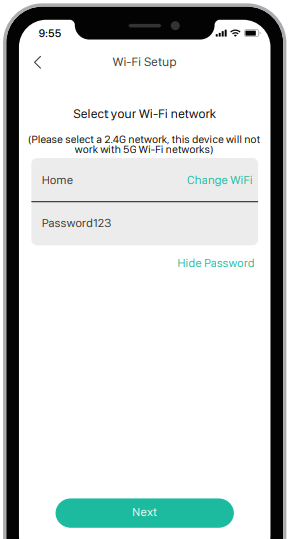

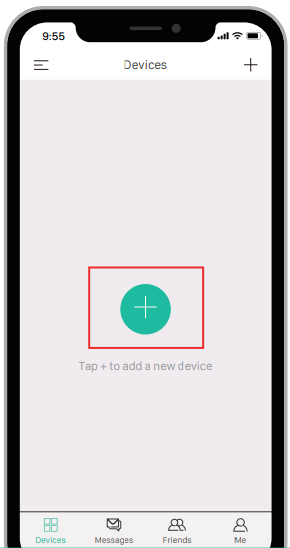

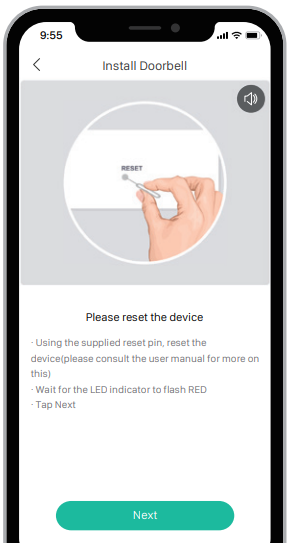

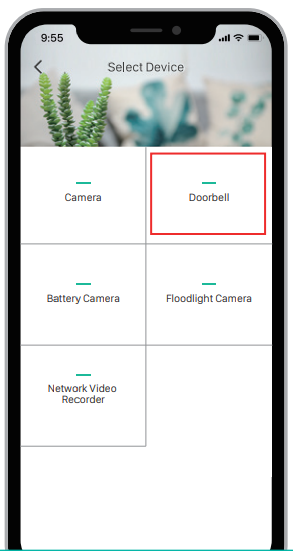

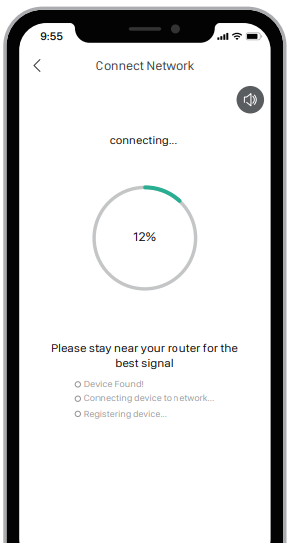

Before you start the Wi-Fi configuration, please note below:

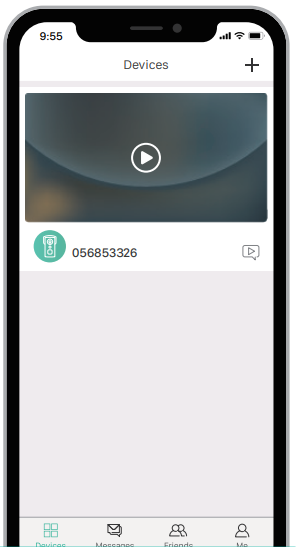

After setup, tap on the live view window in the app for a test. Then take your doorbell outside to the installation spot and run a test there. Make sure the installation spot is covered by strong 2.4 GHz Wi-Fi signal.
Note: If the video quality from the doorbell outside is not as good as it was indoors, you may need to move your router closer to your installation spot, or invest in an Wi-Fi extender.
You can leave a maximum 30-second voice message on the on-board memory of your doorbell, so as to quickly respond your visitor by a tap on your phone when you are not convenient to answer the doorbell call. The voice message function is available even without a pre-installed Micro-SD card.
STEPS:

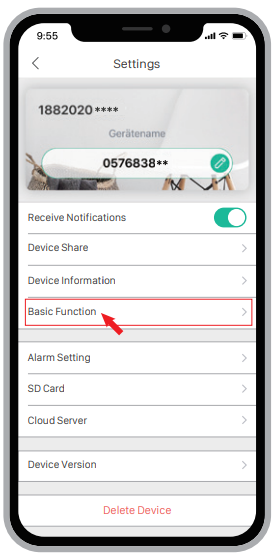

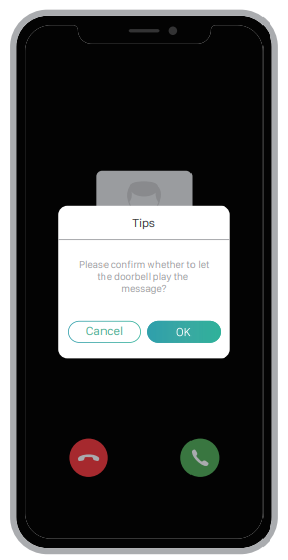

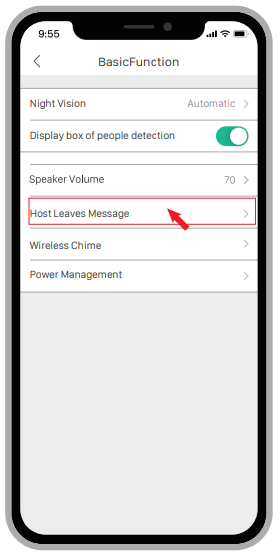

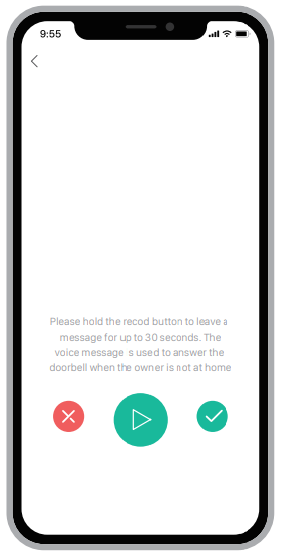

Setting -> Basic function -> Host Leaves Message -> Record your message -> Hang off the incoming call and play the voice message.
Your doorbell has 166-degree view angle and 120-degree human detection range.

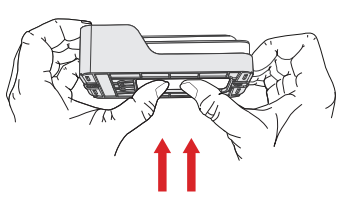

It is suggested to mount your doorbell at least 5 feet (160 cm) above the ground for the best angle of view and motion detection performance.
The chime can be powered by an USB compatible phone charger (DC5V 1A). You can also plug the chime to the USB port on your PC/notebook to supply power.

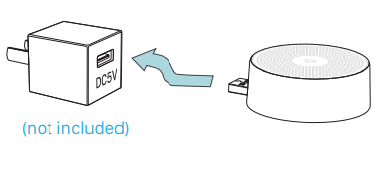

Powered by DC5V adapter (phone charger)

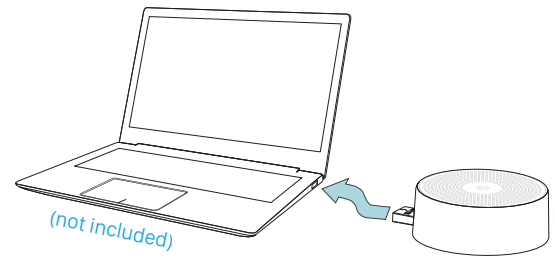

Powered by PC USB port
Picture.1
Picture.2
Picture.3
Picture.4
Picture.5
Picture.6

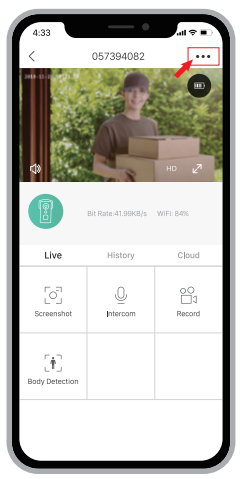

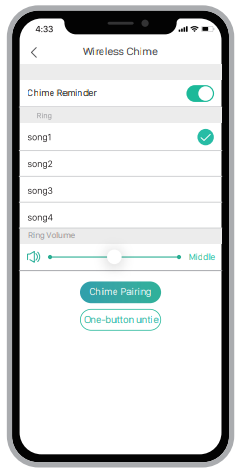

Enter into Settings→Wireless Chime, there are 4 ringtons available (See to Picture.6).
You can control the volume level for the chime in the Wireless Chime Pairing page (See to Picture.6).
You can share your doorbell with your family members and friends, by a few setting steps in your APP.
STEPS:

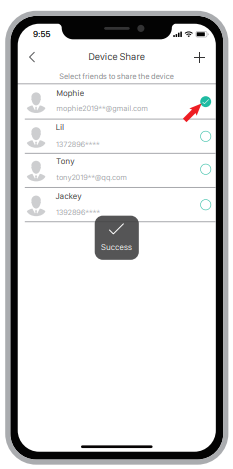

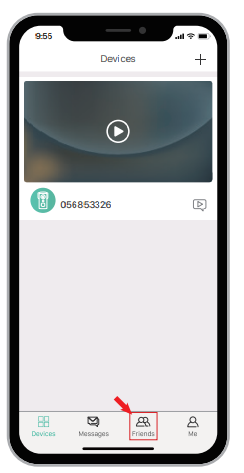

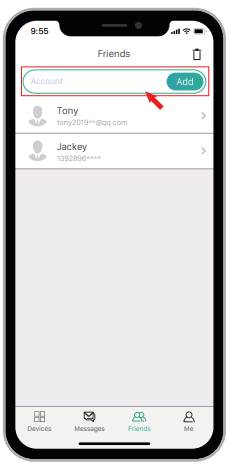

Friends→Search and add your friends into contact list→Back to Devices→enter into Settings→Device Share.
NOTE:

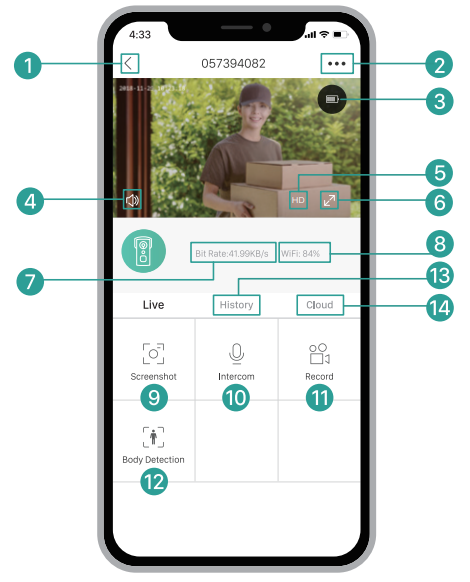

Remote view & control
The doorbell will be in "sleep mode" to save power, and can be activated remotely from the CloudEdge App to view and control.
Full dulplex audio
The doorbell support 2-way audio intercomm. You can see, hear and speak to your visitor even when you are not on the go.
Pre-recorded quick response
A max. 30-second voice message can be pre-recorded into the doorbell, which enables you to quickly reply your visitor with the voice message when you are not convenient to answer the call.
PIR human detection
With PIR motion sensor build-in, your doorbell detects human movements in front of it and sends you motion alerts and snapshots prior to the visitor's knock. And it would prevent intrusion/burglary before they actually happen.
Low battery alert
Embeded with power managment module, your doorbell can tell you the battery consumption status, showing the estimated usage time and sending you low-battery alerts when it needs a recharge.
Local & Cloud storage
Insert a Micro-SD card (Max. support 128GB) or activate the cloud storage service to record your video clips.
Video & Audio | |
Image Sensor | 1/2.7" CMOS (2.0MP) |
OS | Hisilicon Lite-OS |
Resolution | 1920 × 1080 px |
Stream | HD/SD dual stream |
Infrared LED | High power IR LED with ICR |
Lense | 1.7mm/F2.0 |
Angle of view | 166° |
Min. illumin. | Color: 0.01 Lux; B&W: 0.001Lux |
WDR | Digital WDR |
Audio | 2-way audio with noise cancellation |
Storage | |
Storage Type | Micro SD Card (Max 128G) |
Cloud storage | Support |
Recording | Triggered by PIR motion sensor |
Network | |
Wifi Frequency | 2.4 GHz ~ 2.4835 GHz |
Standards | IEEE 802.11 b/g/n |
Live View Speed | Within 3 ~ 4 Sec |
APP | |
App Name | CloudEdge |
OS | iOS, Android |
Remote View | Within 2~4 sec |
Notification | Push notification within 2~4 sec |
General | |
Working Temp. & Humidity | -20℃ ~ 50℃; <90% (No condensation) |
Power Source | Lithium 18650 Battery (3.5V, 3000mAh ) × 2 |
Standby Current | 300μA |
Working Current | 250mA |
Standby Time | 4 ~ 6 Months |
Working Time | 2 ~ 3 Months (20 times wake up per day) |
Battery Charging | DC5V 1A~2A (Micro USB Port) |
Firmware Upgrade | OTA (on the air) |
Dimension (mm) | 61× 41 × 135 |
Weight (g) | 235 |
General | |
Power source | DC 5V 1A |
Power port | USB (Type-A) |
Consumption | 0.2W |
Ringtones | 4 ringtongs optional |
Volume | Max 100dB |
Volume control | Low(mute), middle, high |
Connection type | Radio frequency |
Frequency | 433MHz-868MHz |
Place of use | indoor |

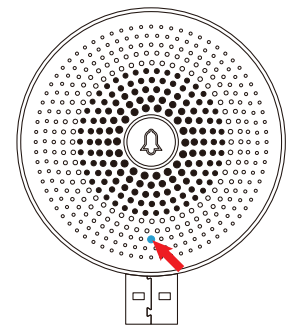

LED | Flashing blue: pairing mode Solid blue: power on/pairing succeeded Flash blue twice: reset to factory default |
Working Temp. | -30℃ ~ 70℃ |
Humidity | < 90%, no condensation |
Dimension(mm) | Ø60 × 24 |
Weight (g) | 33 |
Q1: Why I failed to set up Wi-Fi for the doorbell?
A1: ①.Device works with 2.4GHz Wi-Fi only, but not support 5GHz Wi-Fi. ②.Wi-Fi network is not good, try to keep the camera near the Wi-Fi router when setting up. ③.The Wi-Fi password is wrong. Please check if there are special characters in the password, or the network is specially encrypted.
Q2: How do I know if I have 2.4G or 5G wifi?
A2: Please check the user manual of your Router or call the network operator for help.
Q3: It has to be on same WiFi to see the camera, or is it over internet from anywhere?
A3: You can view the camera from anywhere, if your camera is well connected to the internet.
Q4: Do any of the recordings get saved to the cloud? Or is it mainly saved in the built-in SD card?
A4: It supports SD card recording as well as cloud storage. You can activate the cloud storage service in App.
Q5: What happens when the SD is full?
A5: When the memory card is full, the camera automatically erase the oldest footage.
Q6: Does it work with Google Home or Alexa?
A6: Sorry, this model does not support Google Home or Alexa.
Q7: Why does it lose connection to wifi?
A7: Please check the network connection of your phone and the Wi-Fi router. If the network signal is not strong, you may need to move your router closer to the device, or invest in an extender.
Q8: Can the motion detection be disabled?
A8: Yes, sure. Recording is triggered by detected motions. You can set up the sensitivity or disable motion detection in the setting menu.
Q9: Do we get charger for the batteries?
A9: Battery charger is not included. Please charge the batteries with a USB compatible charger(DC5V 1A~2A) for about 8-10 hours.
Q10: Can we have 2 or more doorbells at the same residence?
A10: Yes, you can add more than one device at the same residence.
TECHNICAL SUPPORT
E-mail: support@meco-ele.com
Facebook: @mecodirect
Website: http://www.meco-ele.com
Company: Lotus NL B.V.
Address: Koningin Julianaplein 10, 1e Verd, 2595AA, The Hague, Netherlands.
E-mail: peter@lotusnl.com
Tel: +31645171879
