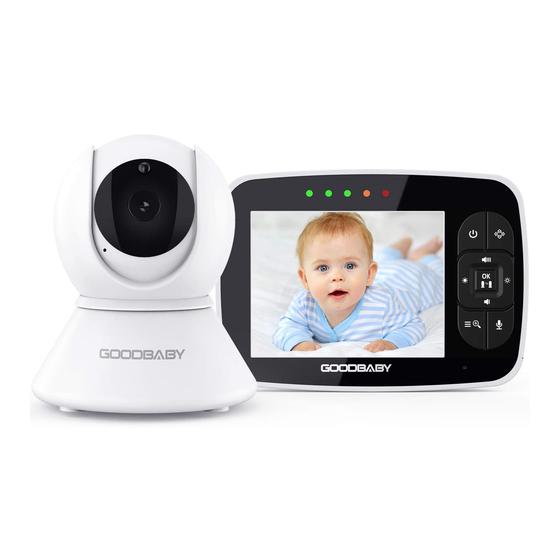

Goodbaby SM35PTZ BABY MONITOR Manual

ACTIVE AND EXTEND YOUR WARRANTY

PLEASE ACTIVE AND EXTEND YOUR WARRANTY NOW.

(Register within 7 days after receiving your product)
To register your product

Visit https://goodbaby.top/warranty
Finished the form on the website

That is it! Your product is now active and extend warranty!
If you are unsatisfied with your product, please contact us via
support@goodbaby.top or https://goodbaby.top
before leaving a negative review.
We will definitely give you a satisfactory solution.

Please retain your original dated sales receipt for your to records.
For warranty service of your baby monitor, you will need to provide a copy of your dated sales receipt to confirm warranty status.
Registration is not required for warranty coverage.
Before you use the product, we recommend you fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the power supply to carry it to another location.
Please read the safety instructions carefully.

Please make sure you have the following in the packing.

1. Parent unit x 1
2. Baby unit x 1
3. Adapter x 2
4. User manual x 1
5. Screw set x 1

SAFETY INSTRUCTIONS

Warning-Strangulation Hazard-Children have STRANGLED in cords.
Keep this cord out of children (more than 3 ft/0.9m away). Do not remove this tag that affixed to the cord of the unit.
Parent unit and baby unit with power cords should never be hung on or near the crib. This product is not a toy and should be kept out of children's reach. This product contains small parts. Be care when unpacking and assembling the product.
Read and keep instrutions: All the safety and operating instructions should be read before the video baby monitor is operated.
This product cannot replace responsible adult supervision.
Water and moisture: This product is designed for indoor use only. The unit should not be exposed to rain, moisture, dripping or splashing. No objects filled with liquid should be placed on top of, or beside the product, such as a glass or vase. This item should not be used near water.
DO NOT: Use the appliance if the cord or plug is damaged. If your baby monitor is not operating properly or has suffered any damage, contact service center to request inspection and repair it in order to avoid any possible risk.
DO NOT: Attempt to repair or adjust any of the electrical or mechanical functions of the unit since, if you do, the guarantee will be made void.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that may block the ventilation openings, or be placed in an enclosed area, such as a bookcase or drawer that may impede air flow.
Keep away from sources of heat: This unit should not be exposed to direct heat sources such as a candle, replace, radiator, heat register, stove or other appliance that emits heat. The unit should not be left in direct sunlight.
Power source: This unit should only be used with the AC power adapters included in this package.

FCC STATEMENTS:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE 1: This equipment complies with FCC RF radiation exposure complicnce requirements. The antenna(s) used for this equipment must be installed and operated with a minimum distance of least 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Use of other accessories may not ensure complicnce with FCC RF.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

PRODUCT OVERVIEW

What's included

Parent unit x 1

Baby unit x 1

Adapter x 2

User manual x 1

Screw Set x 1

Baby Unit

Icons Overview

Signal	Volume	Zoom
Alarm	Brightness	Night vision
Lullaby	ECO	Talk to baby
Baby Unit	Battery	Temperature

Getting Started

Charge the Parent Unit

Step 1:

Full charge the Parent Unit before using it When charging, the charging indicator will turn red. When the unit is turned on, the charging indicator will turn green.

Turn On the Baby Unit

Step 2:

Use the provide AC adapter to connect the Baby Unit to an AC outlet.

Note: The baby unit needs to be connected to the AC Adapter when using.

Turn On the Parent Unit

Step 3:
Press and hold the power button. The animation "Waiting for connection" will be displayed on the screen.

Prepare for Connecting the Baby Unit

Step 4:
Press and choose select , the icon will flash, then wait for connect.

Pair the Parent Unit with the Baby Unit

Step 5:
Long press the "Pair" button at the back of the baby unit until the parent unit shows images. If failed, choose another baby unit channel ( / / ) and try to pair again.

LULLABY SETTING

You can soothe the baby to sleep by playing a gentle lullaby from baby unit

Press the Menu/Exit key and the menu will pop up.

Press the LEFT key or RIGHT key until the lullaby icon is highlighted.

Press UP key or DOWN key to select.

Press OK key to confirm.

Video Pan/Tilt

Press the shot-cut key enter into the Pan/Tilt mode.

Press or key to Pan the Video.

Press or key to Tilt the video.

Press the shot-cut key to exit the Pan/Tilt mode.

Note: During the Pan/Tilt mode can not use the navigation key to adjust the Volume and the Brightness.

TECHNICAL DATA

System General

Frequency	2.4GHz FHSS
Type of Moduiation	GFSK
Transmittng Power	18dBm Max
Operation Environment	Indoor use only; Temperature: 0-40°C; Humidity: 5% to 90% rh. ( relative humidity)
Operating Range	Up to 900 feet (straight line and open space)
Power adapter	Input: 100-240VAC 50 / 60Hz, 300mA Max Output: 5V, 700mA
LCD	3.5'' TFT LCD
Rechargeable battery for monitor	Model: 503450; 3.7V, 1100 mAh
Operating time with battery fully charged (parent unit)	Up to 12 hours (ECO on)
Image sensor type	1/6.5'' Color CMOS image sensor
IR LED Type	940 nm

No reception on the monitor	The power adapters may not be properly connected. Confirm that the camera and monitor are ON. See "Getting started", connect the baby unit in the right way. If it is still unconnected, choose another baby unit to connect. The baby unit may be too far from the parent unit. Keep the distance between the baby unit and the parent unit with 900 feet (open space). The baby unit and parent unit may not be properly paired. Following the Pairing instructions. If the above strategies do not work, restart the parent unit. At the back of the parent unit(under the stand) you will see a small black hole marked "Reset". Just take a sharp object and press the reset button for a few seconds.
Interference or Poor Reception	The baby unit may be too far from the parent unit. Keep the distance between baby unit and parent unit in 900 feet (open space). The baby unit or the parent may be placed too close to metal objects. Keep the metal objects at least 5 feet away from the parent unit. In most cases it is even enough to move them about 8-10 inch away Other electronic devices may be interfering with signal. Keep the electronic devices at least 5 feet away from the parent unit. In most cases it is even enough to move them about 8- 10 inches away. The battery power may be to low. Full charge the parent unit with AC adapter provided If the above strategies do not work, restart the parent unit.
A high-pitched Noise is Heard	The baby unit and parent unit may be place too close together. Keep the distance between parent unit and the baby unit. The volume on the parent unit may be set too high. Turn down the volume on the parent unit. If the above strategies do not work, restart the parent unit.
No Sound on the Parent Unit	Volume may be set too low. Turn up the volume on the parent unit. If the above strategies do not work, restart the parent unit.
Image Freezes	Restart the baby unit(plug out the adapter then plug it into the socket again) Press the reset key at the back of the parent unit(hide behind the stand)
Temperature is Inaccurate	The temperature sensor is positioned very close to the baby unit and when it warms up the during operation. Stretch out the senor so it would be far enough from the baby unit Place the baby unit in an area with good air circulation. If the above strategies do not work, restart the parent unit.
Can not Connect with Multiple Baby Unit	Pair the baby unit in wrong ways. Refer to Paring More than one baby unit with parent unit. If the above strategies do not work, restart the parent unit.

MAINTENANCE

Clean the surfaces of the camera and monitor with a soft, fluff-free cloth.
Never use cleaning agents or solvents.
If the units become dirty, use a lightly dampened cloth to wipe surfaces, taking care to not allow water into any openings.

All rights reserved

The features described in user's manual are subject to modifications without prior notice.

Keep the small parts away from children
