PROKEYS SONO 61/88

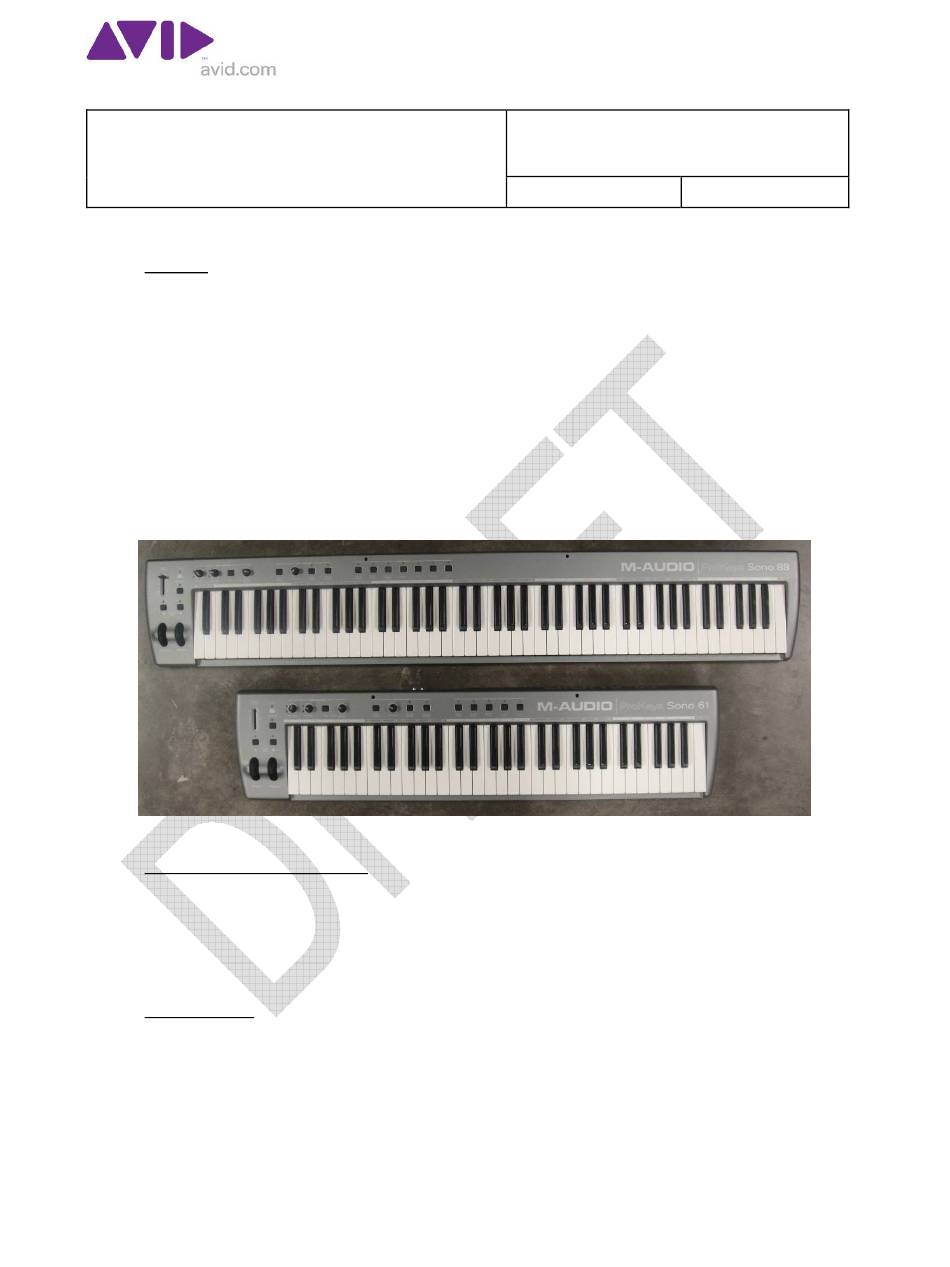

1.0 Scope

This procedure defines the method required to test the ProKeys Sono 61
and 88 digital keyboards.
• 9900-53102-10 PROKEYS SONO 88 INCL PRO TOOLS ES, NO
PWR
• 9900-52551-10 PROKEYS SONO 88, NO POWER
• 9900-53104-10 PROKEYS SONO 61 INCL PRO TOOLS ES, NO
PWR
• 9900-52550-10 PROKEYS SONO 61, NO POWER

2.0 Reference Documents

2.1 M-Audio Dealer Check in sheet
2.2 M-Audio Scrap log
2.3 M-Audio RTV Log

3.0 Equipment

3.1 Audio Source (DVD Player)
3.2 RCA male to RCA male cable x2
3.3 RCA male to ¼" cable
3.4 ¼" TRS to ¼" TRS cable x2
UNCONTROLLED DOCUMENT when printed or copied
Form: 0150-30027-01 Rev C
Procedure P/N
Revision:
Date Printed: 3/24/2010
PROCEDURE
:
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROKEYS SONO 61 and is the answer not in the manual?

Questions and answers

Related Manuals for Avid Technology PROKEYS SONO 61

Summary of Contents for Avid Technology PROKEYS SONO 61

  • Page 1 Revision: Page 1 of 6 1.0 Scope This procedure defines the method required to test the ProKeys Sono 61 and 88 digital keyboards. • 9900-53102-10 PROKEYS SONO 88 INCL PRO TOOLS ES, NO • 9900-52551-10 PROKEYS SONO 88, NO POWER •...
  • Page 2 PROCEDURE Title Procedure P/N PROKEYS SONO 61/88 Revision: Page 2 of 6 3.5 MIDI cable x2 3.6 Oxygen 8v2 3.7 MidiSport 2x2 3.8 SP-2 sustain pedal 3.9 DSM1 monitors 4.0 Process Description 4.1 The ProKeys Sono needs to be in the “like new” state: All knobs turned to the left, all faders down, and the product turned OFF.
  • Page 3 ProKeys Sono 61 (or 88). 4.10 In the MIDI Output field, select 1) Microsoft GS Wavetable SW Synth and 2) ProKeys Sono 61 (or 88) MIDI Out. 4.11 Check the Port Mapping field to see that both choices from the MIDI Output field are displayed.
  • Page 4 PROCEDURE Title Procedure P/N PROKEYS SONO 61/88 Revision: Page 4 of 6 4.13.3 Test the PITCHBEND wheel while pressing keys – check sound for the note to bend and for response in MIDI OX. 4.13.4 Test the MODULATION wheel while pressing keys – check sound for the note to modulate and for response in MIDI OX.
  • Page 5 PROCEDURE Title Procedure P/N PROKEYS SONO 61/88 Revision: Page 5 of 6 4.13.11 Connect headphones to port 1 on the front left edge of the ProKeys Sono. 4.13.12 Test for sound. 4.13.13 Connect headphones to port 2 on the front left edge of the ProKeys Sono.
  • Page 6 PROCEDURE Title Procedure P/N PROKEYS SONO 61/88 Revision: Page 6 of 6 4.14.8 Connect audio source to Instrument port on the back of the ProKeys Sono. 4.14.9 Set the Direct Monitor knob straight up to a 12:00 o’clock position. 4.14.10 Test the Inst Gain knob for sound volume control.
