Title
:

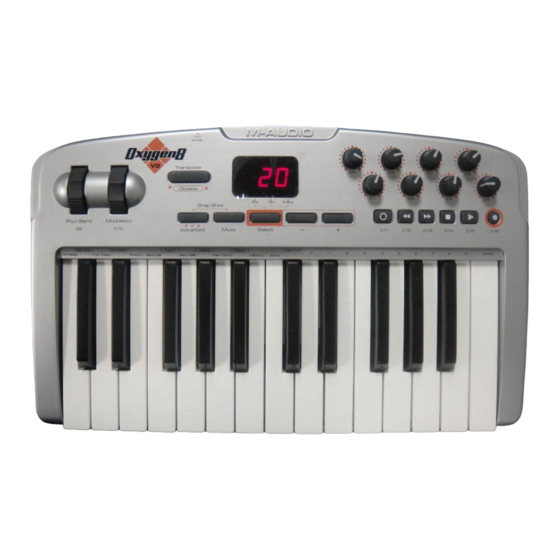

OXYGEN 8 V2
OXYGEN 8
1.0 Scope
This procedure defines the method required to test:
• 9900-41392-10 OXYGEN 8 V2
• 9900-51392-10 OXYGEN 8 V2
• 9900-40211-09 OXYGEN 8 – EURO
• 9900-40808-10 OXYGEN 8 – NO POWER
• 9900-40807-00 OXYGEN 8, US
2.0 Reference Documents
2.1 M-Audio Dealer Check in sheet
2.2 M-Audio Scrap log
2.3 M-Audio RTV Log
3.0 Equipment
3.1 Software (Midi OX)
3.2 Midi cable x2
UNCONTROLLED DOCUMENT when printed or copied
Form: 0150-30027-01 Rev C
Procedure P/N
Revision:
Date Printed: 3/29/2010
PROCEDURE
:
B
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for Avid Technology OXYGEN 8 V2
Summary of Contents for Avid Technology OXYGEN 8 V2
- Page 1 Page 1 of 4 Revision: 1.0 Scope This procedure defines the method required to test: • 9900-41392-10 OXYGEN 8 V2 • 9900-51392-10 OXYGEN 8 V2 • 9900-40211-09 OXYGEN 8 – EURO • 9900-40808-10 OXYGEN 8 – NO POWER • 9900-40807-00 OXYGEN 8, US 2.0 Reference Documents...
- Page 2 4.4 Connect the Oxygen to the computer with a USB cable. 4.5 Press and hold the – and + buttons beneath the LCD screen while powering on the unit to reset the Oxygen 8 v2 ( press and hold the Up & Down keys on Oxygen 8).
- Page 3 PROCEDURE Title Procedure P/N OXYGEN 8 V2 OXYGEN 8 Page 3 of 4 Revision: 4.8 In MIDI Devices – in the MIDI Inputs field, select 1) USB Oxygen 8 v2 In. 4.9 In the MIDI Outputs field, select 2) Microsoft GS Wavetable SW Synth.
- Page 4 PROCEDURE Title Procedure P/N OXYGEN 8 V2 OXYGEN 8 Page 4 of 4 Revision: 4.16 Test knobs C1 – C8 for response in MIDI OX. 4.17 Test function keys below the knobs – check for response in MIDI OX. 4.18 Test each button below the LCD screen – check for a response in the LCD screen display.
