Si Tech 70850 Disassembly And Assembly

Place the washers back and then screw the eight nuts (that are
located in pairs) back on the screws.
Make sure the straps are properly
positioned before the nuts are
tightened.
The nut at the front of the toe (inside
the toe cap) should be the last to be
screwed in.
Lysekil • Sweden
Phone + 46 523 150 10
info@sitech.se
www.sitech.se
Disassembly and Assembly of the Sole on
Diving Shoes 70850

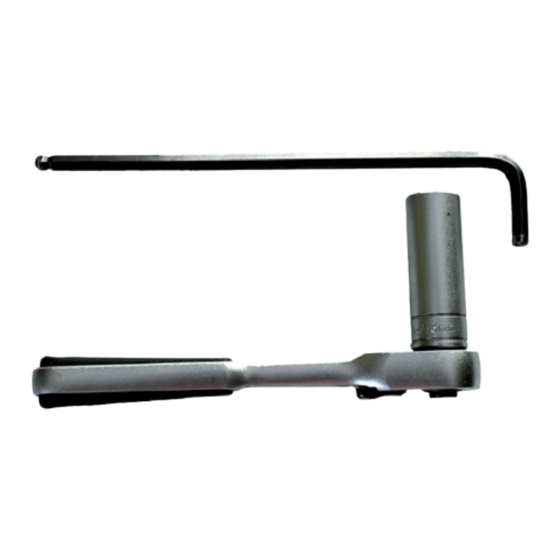

Tools
For disassembly and assembly of sole on
the Diving shoes you need a 5 mm allen
key (preferably with a ball head) and a
13 mm Socket Wrench.
Disassembly
Start by unscrewing the
nut at the front of the
toe (inside the toe cap).
Then unscrew the other eight
nuts from the sole.
Remove the nuts and the washers.
