Assembly Instructions

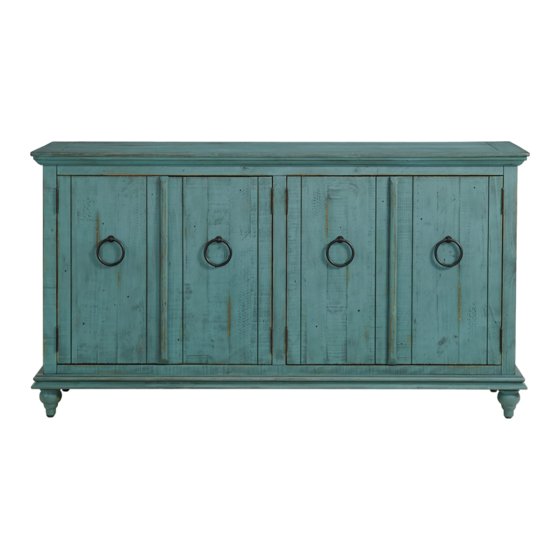

909181- Garden District, Antique Turquoise
909183 - Garden District, Antique White
909185 - Garden District, Antique Blue
Product Issues? Please Call Us Before Contacting Your Retailer At
1-800-549-3300, email customerservice@mshome.co, or visit www.mshome.co
We can help with Assembly Issues, Part Requests, Damages, & All Other
Product Related Questions
1-9
Advertisement
Related Manuals for Martin Svensson 909181
Summary of Contents for Martin Svensson 909181

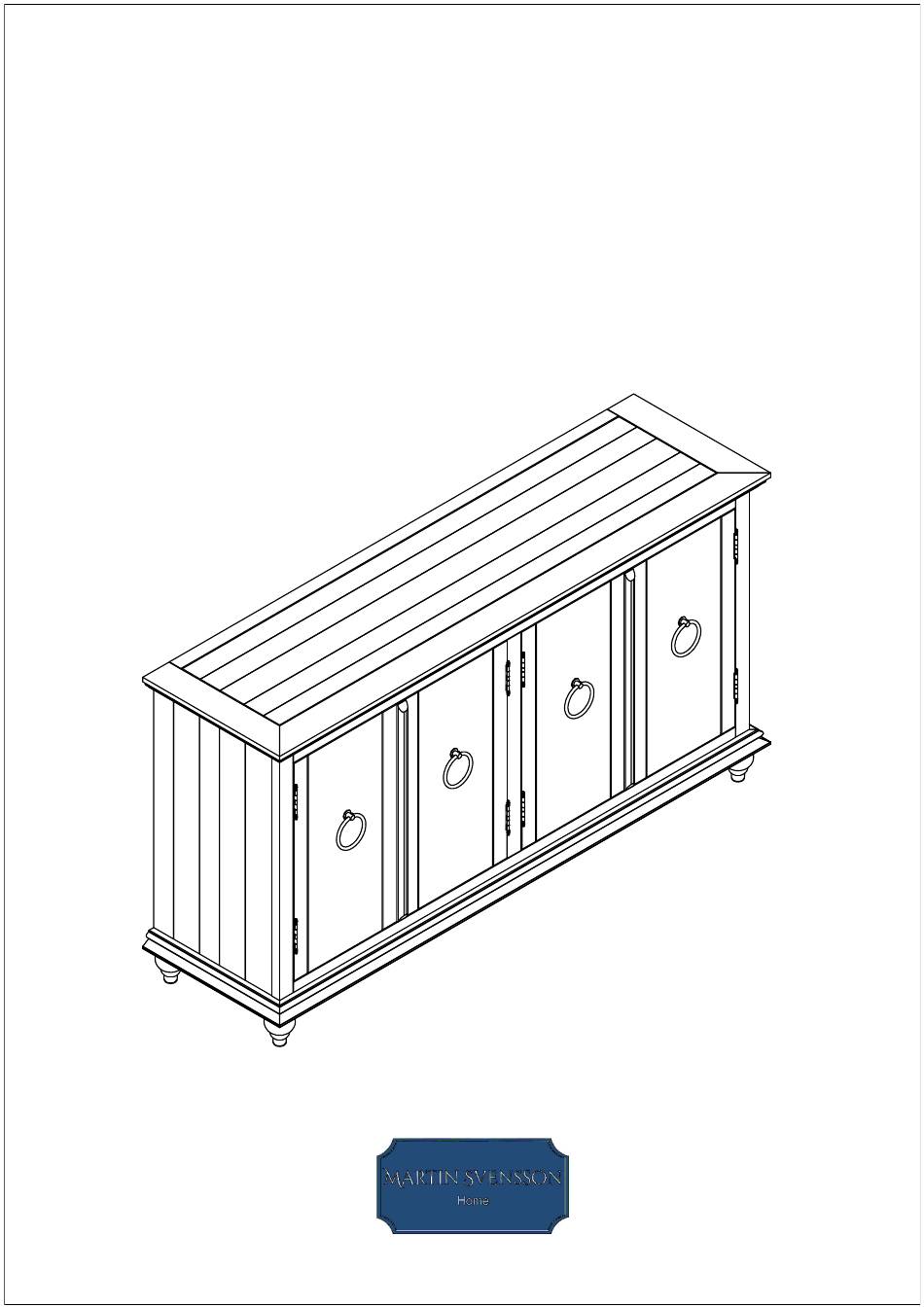

- Page 1 Assembly Instructions 909181- Garden District, Antique Turquoise 909183 - Garden District, Antique White 909185 - Garden District, Antique Blue Product Issues? Please Call Us Before Contacting Your Retailer At 1-800-549-3300, email customerservice@mshome.co, or visit www.mshome.co We can help with Assembly Issues, Part Requests, Damages, & All Other...
- Page 2 Two People Required 15 min Approxiamate space required Phillips Head Not Provided...
-
Page 3: Hardware Pack
Part List : C1 Top C2 Side Right Panel C3 Side Left panel C4 Front frame C5 Partition panel C6 Bottom panel C7 Shelf panel x2 C8 Leg x4 C9 Support leg x2 C10 Back panel D1 Door 1 D2 Door 2 D3 Door 3 D4 Door 4 Hardware Pack:... - Page 4 Please lay all components on smooth flat surface to prevent scratches Use the EPE foam to protect the plastic hardware before assembly EPE Foam Match the corresponding number up to lock in to place...
- Page 6 Make sure all latches are in the open position before installing Bottom Panel(C6) Open Lock Open Lock Make sure all 11 latches are in the locked position Lock Open Lock...
- Page 7 Make sure all latches are in the open position before installing Top Panel (C1) Open Lock Open Lock Make sure all 11 latches are in the locked position Ø3.5x15 (mm)
- Page 8 Ø4x15 (mm) Adjustable floor leveler...
